4.17 MDC modem/USB board 4 Replacement Procedures
4. Disconnect the USB harness from the connector CN9560 on the system board and
connector CN9660 on the USB board.
5. Remove the USB board from the slot of the base assembly while pushing the latches
in the direction as shown in the figure below.
USB board
USB harness
CN9560
CN9660
Latch

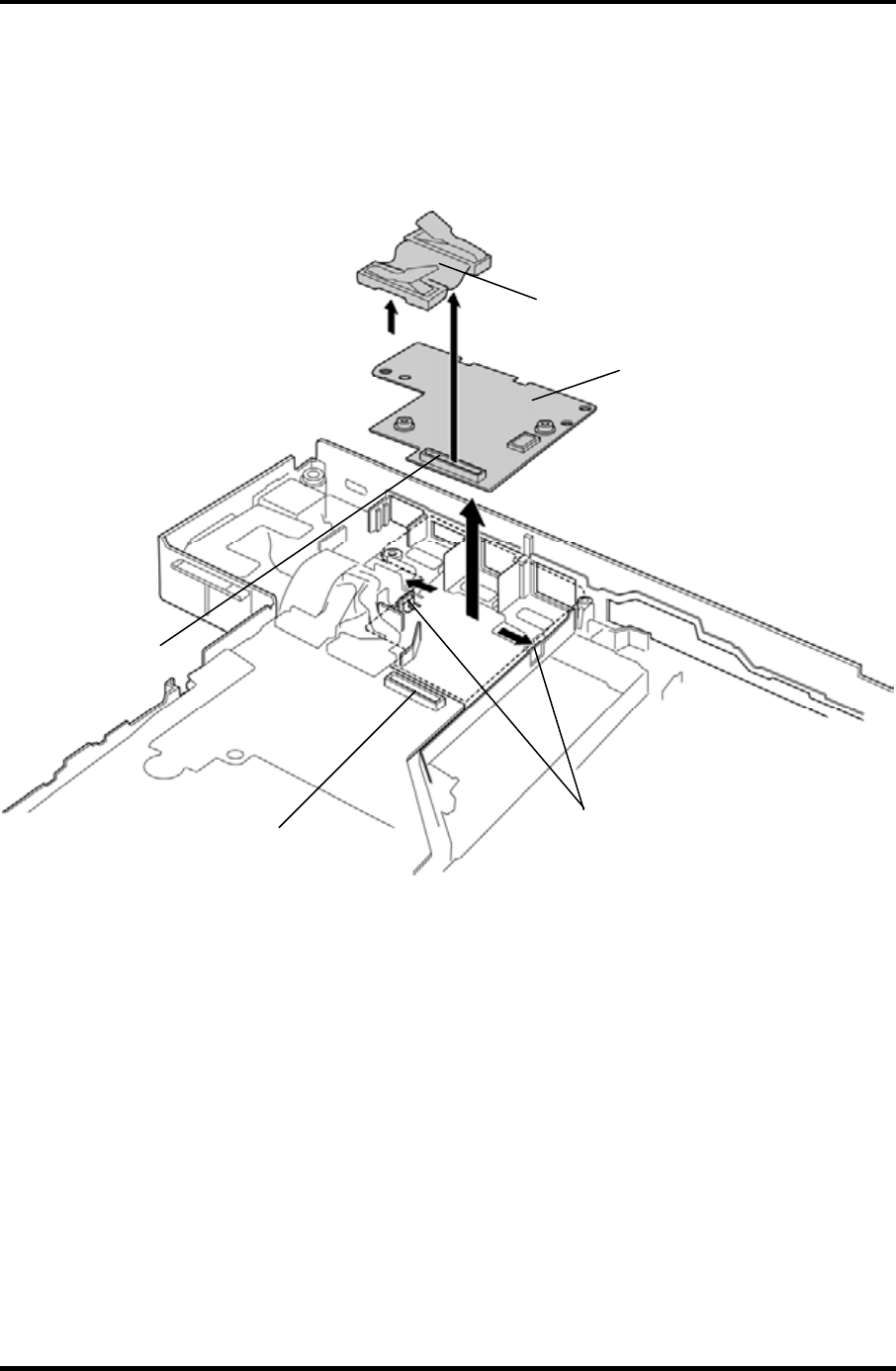

Figure 4-32 Removing the USB board
