Hard-disk drive cables

WARNING! The product contains components that are sensitive to electrostatic discharge

(ESD). Always perform service work at an ESD-protected workstation. If an ESD-protected

workstation is not available, discharge body static by grasping the device chassis before touching

an ESD-sensitive component. Ground the device chassis before servicing the product.

1. Remove the formatter cage (see Formatter cage on page 49), open the formatter-cage door, and

then disconnect the hard-disk drive cables from the hard-disk drive (callout 1).

1

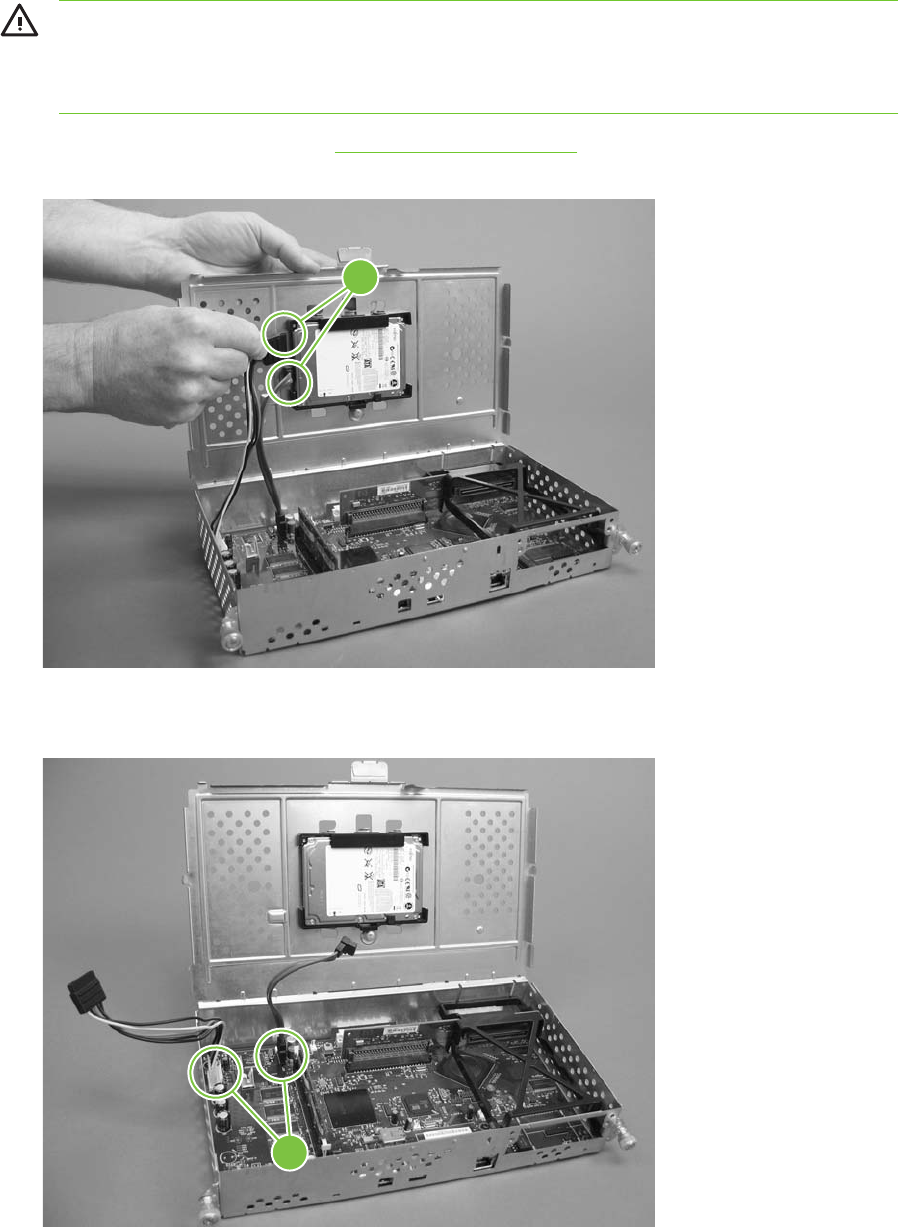

Figure 5-21 Removing the hard-disk drive cables (1 of 2)

2. Disconnect the hard-disk-drive cables from the formatter (callout 2).

2

Figure 5-22 Removing the hard-disk drive cables (2 of 2)

ENWW User-replaceable parts 51
