Internal control-panel cable
1. Remove the following items:
●
Flatbed unit. See
Flatbed scanner assembly on page 96.
●
Upper flatbed ribbon guide. See
Power supply on page 99 (steps 2 and 3).
2. Use needle-nose pliers to disconnect one connector (callout 1) and unclip three wire clips
(callout 2).
3
1
2

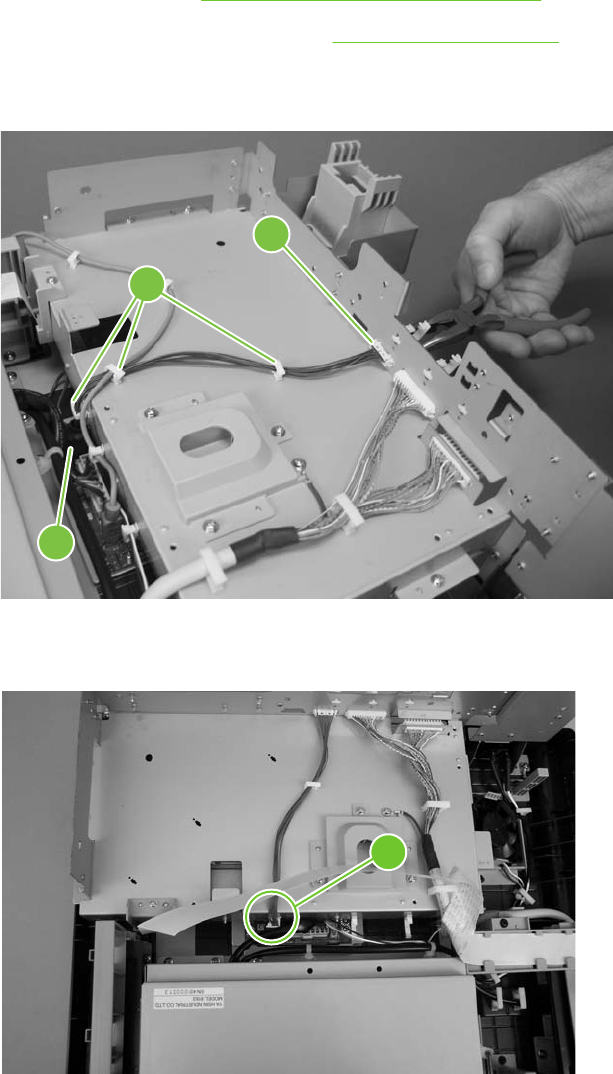

Figure 5-98 Removing the internal control-panel cable (1 of 2)
3. Disconnect the internal control-panel cable from the left side of the interconnect board (callout 3).
3
Figure 5-99 Removing the internal control-panel cable (2 of 2)
110 Chapter 5 Removal and replacement ENWW
