Packed column inlet
103
Assuming the system to be leak•free(and if total flow is < 200 ml/min),
after setting the desired column flow rate, total flow through the system
should be noted via the EFS.
The original column flow rate is reestablished simply by adjusting the
mass flow controller so the original total system flow rate value is
displayed again.
Septum-purged packed column inlet
The septum•purgedpacked column inlet may be used with HP Series
530
capillary columns, metal packed or glass packed columns.
Additionally, on•columninjection is possible with 1/4•inchglass packed
columns.
The septum•purgedinlet provides superior reproducibility and
quantitative accuracy at high inlet temperatures (250 to 400
C).
Trap(s)
Carrier
Gas
External
Plumbing
Internal
Plumbing
Pressure
Gauge
Septum Purge
Packed Column
Inlet
Septum
Purge
Vent
Fixed
Restrictor
Out In
Forward
Pressure Regulator
Mass
Flow
Controller
Electronic
Flow Sensor
(optional)
To
Detector
Column

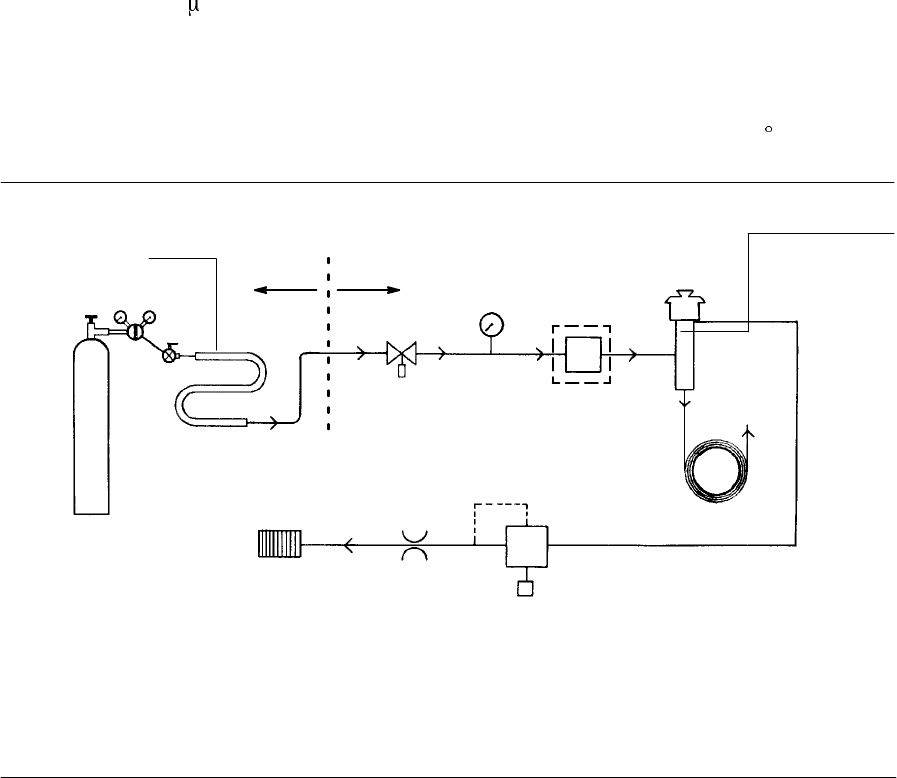

Flow Diagram, Septum-Purged Packed Column Inlet
Figure 6-3
