Basic Operations
Adjusting the Image Angle
The projector should be set up so it is as perpendicular to the screen as possible.
If it is not possible to set up the projector so it is perpendicular to the screen, it can be set up at a slight
vertical angle instead. You can extend or retract the front adjustable feet to adjust the projection angle within
a maximum range of 10º.
Procedure
While pressing the two foot adjust
buttons at either side, lift up the front of
the projector so that the front
adjustable feet can extend.
Extend the front adjustable feet until the desired
angle is obtained, and then release the foot adjust
buttons.
To retract the front adjustable feet, gently push
down on the projector while pressing the two foot
adjust buttons.
•
When the feet are adjusted, it may cause distortion in the projected image. Use the keystone
correction function to adjust this distortion. (p.14)
•
If the projector is tilted horizontally, turn the bases of the front adjustable feet to adjust the angle.

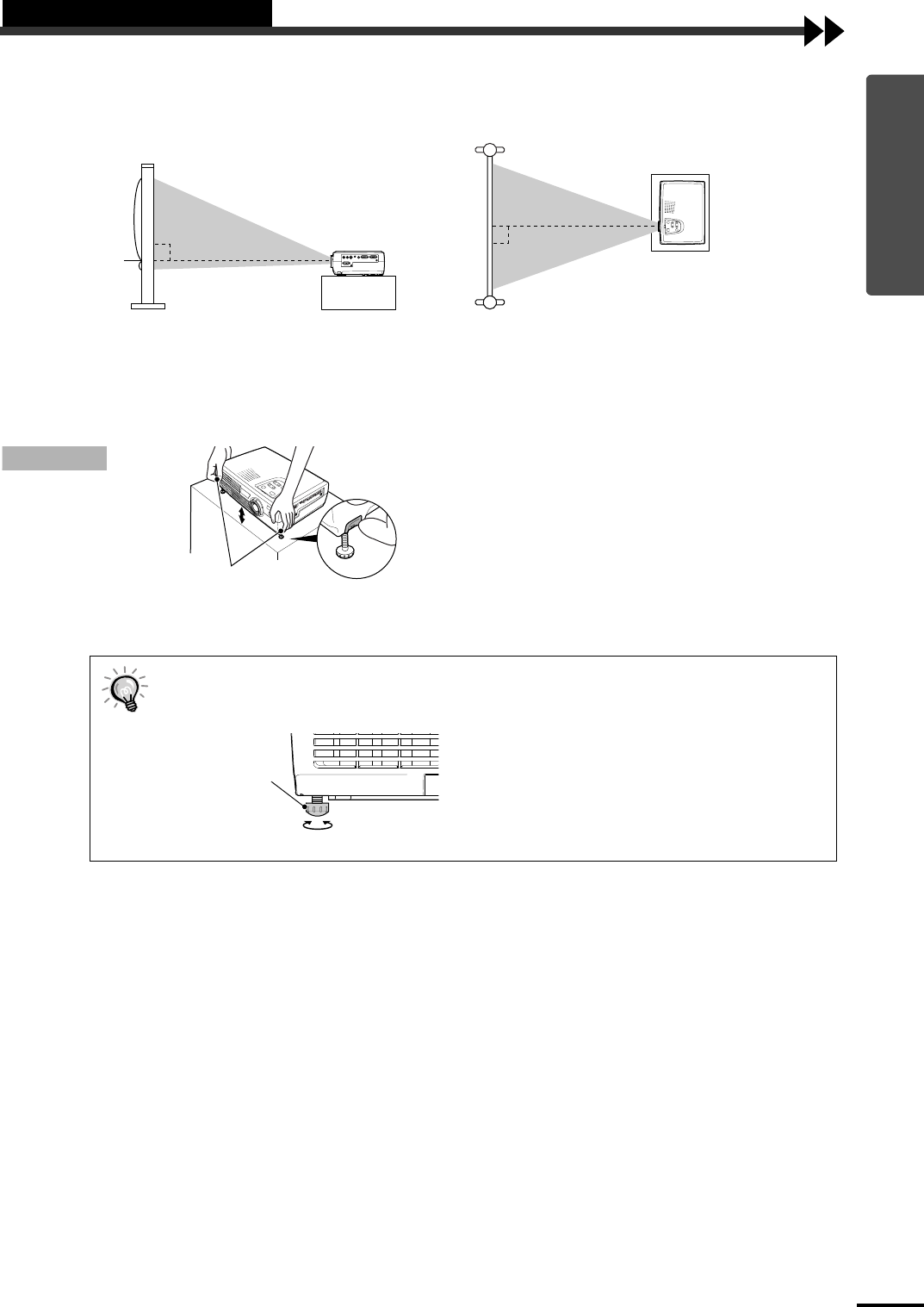

Seen from the side
Seen from above
9.6
1
Foot adjust buttons
(side)
Extend Retract
Front adjustable
foot
