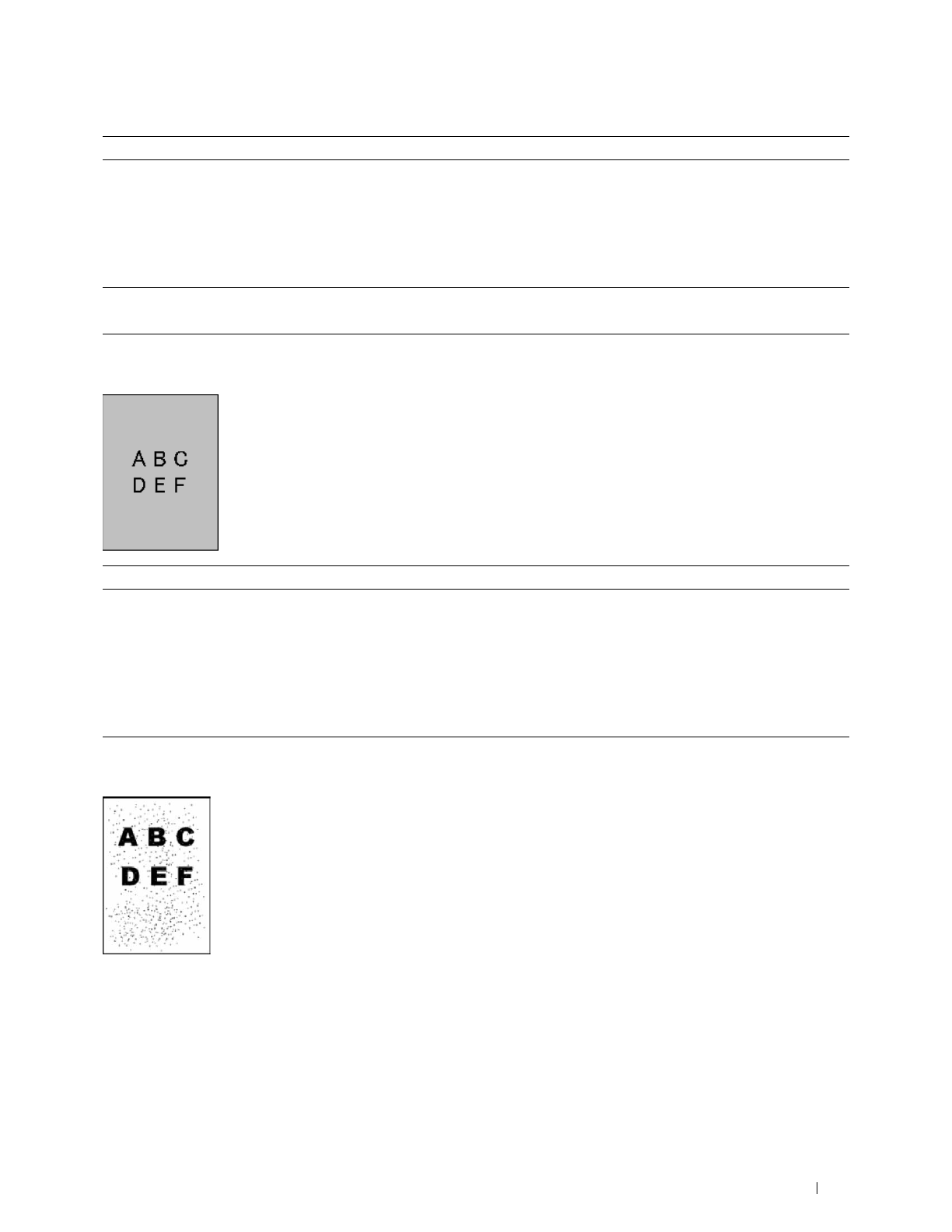

Troubleshooting Guide 541
Fog
Bead-Carry-Out (BCO)
Action Yes No
1 Check the light fatigue pattern using the Pitch Configuration Chart.
a
Launch the
Tool Box
, and click
Chart Print
on the
Diagnosis
tab.
b
Click
Pitch Configuration Chart
.
The Pitch Configuration Chart is printed.
Does the pattern on the output match with that on the Pitch
Configuration Chart?
Go to action 2. Contact Dell.
2 Replace the drum cartridges. See "Replacing the Drum Cartridges."
Does this solve your problem?
The task is complete. Contact Dell.
Action Yes No
1 Replace the drum cartridges.
a
Replace the drum cartridges. See "Replacing the Drum Cartridges."
b
After you replace the drum cartridges, click
Chart Print
on the
Diagnosis
tab.
c
Click
4 Colors Configuration Chart
.
The 4 Colors Configuration Chart is printed.
Does this solve your problem?
The task is complete. Contact Dell.
