POEFEM24T2SFP User Manual
110
Alloy Computer Products Pty Ltd Copyright ©2006

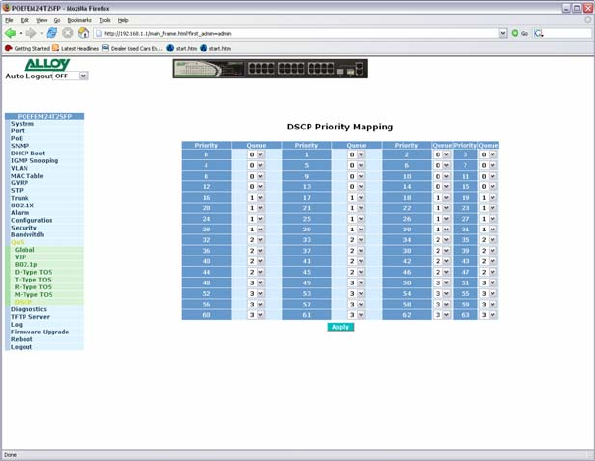

3-17-8. DSCP Setting
Fig. 3-70
Function Name:
DSCP Setting
Function Description:
The POEFEM24T2SFP allows the administrator to configure priority levels based on the
6-bit field in the DSCP of the IP packet. The 6-bit field allows a total of 64 different traffic
classes in which you can set a High or a Low priority.
Parameter Description:
Diffserv:
Displays the 64 traffic classes in which a priority level can be assigned.
Class:
Set a High or Low priority level to any of the 64 different traffic classes.
