POEFEM24T2SFP User Manual
7
Alloy Computer Products Pty Ltd Copyright ©2006
PoE-PSE ACT
Green Lit when PoE Power is active
10/100/1000Mbps Gigabit TP/Fibre Port 25, 26 LED
LINK
Green
- On when connection with the remote device is good
- Blinks when any traffic is present
- Off when no link is present
FX
Green
- Lit when Fibre port is active
- Off when TP port is active
ACT/FDX/ SPD
Green
- LEDSET set on ACT (active) mode:
Blinks when any traffic is present
- LEDSET set on FDX (full-duplex) mode:
Lit when full-duplex mode is active
Blinks when any collision is present
- LEDSET set on SPD (speed) mode:
Lit when 100Mbps speed is active
Off when 10Mbps speed is active
1.4.2. User Interfaces on the Rear Panel

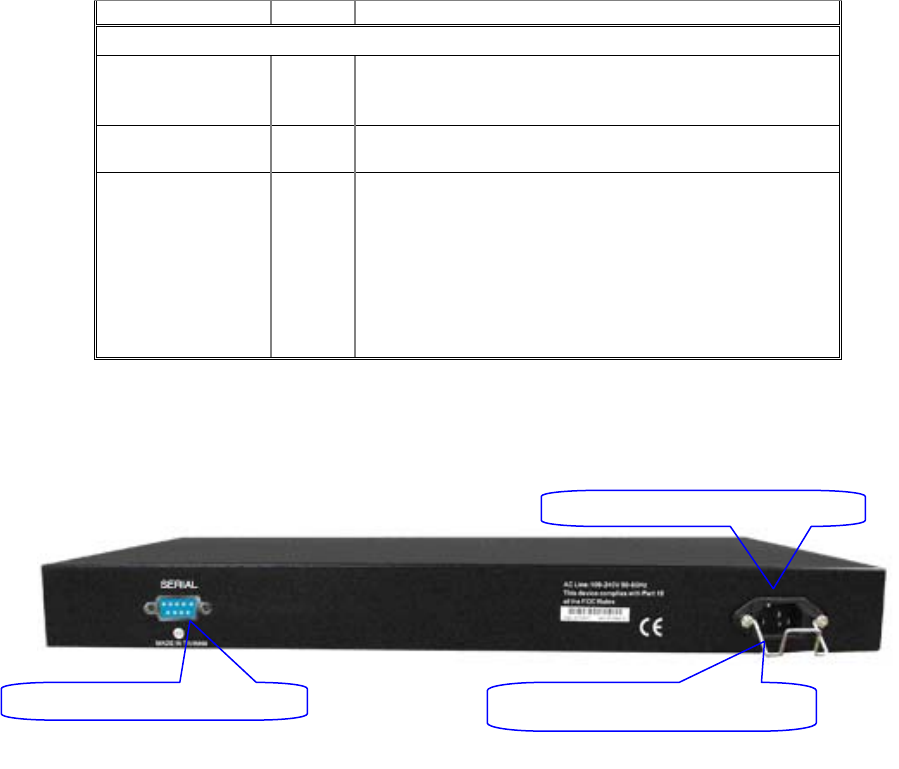

Fig. 1-3: Rear View of the POEFEM24T2SFP Switch
Lin
1
-24
V
Hz
AC mains cable locking clamp
RS-232 DB-9 Serial Port
