CDX-CA850/CA850X/CA860X
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

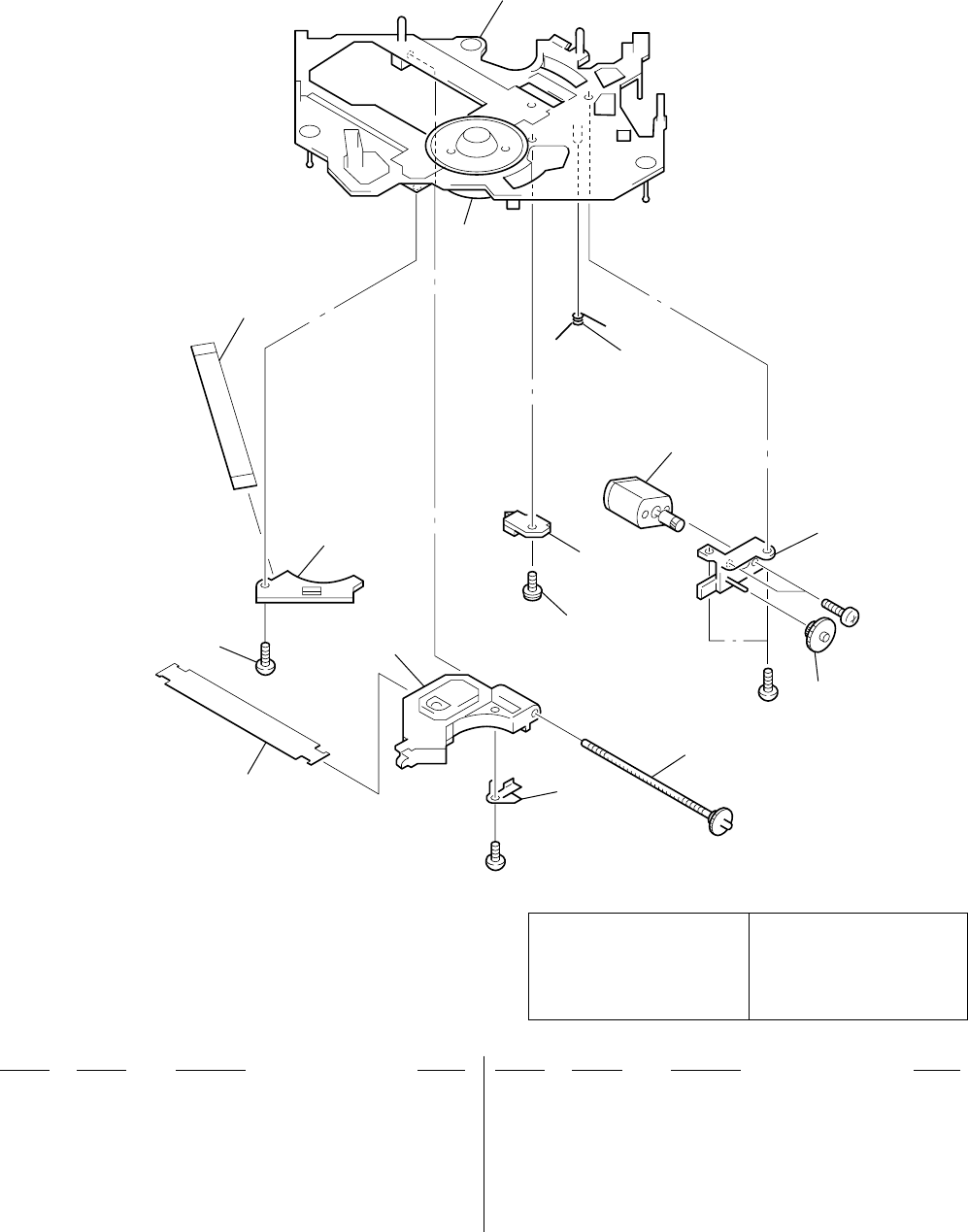

4-5. CD MECHANISM SECTION (3)
(MG-383Z-121//Q)
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
M902
#9
#9
#12
212
211
209
210
213
208
205
206
204
203
202
207
201
M901
201 X-3378-598-1 CHASSIS (OP) ASSY (including M901)
202 3-043-494-01 SPRING (SL), TORSION
203 3-040-170-01 BASE (DRIVING)
204 3-040-419-01 GEAR (MIDWAY)
* 205 1-659-835-11 LIMIT BOARD
206 3-338-737-01 SCREW (2X3), +PS
207 1-659-880-11 MOTOR FLEXIBLE BOARD
* 208 1-659-834-11 SUB BOARD
209 3-909-607-01 SCREW
0210 8-820-103-03 PICK-UP, OPTICAL KSS-720A/K1RP
211 3-025-743-01 SPRING (FEED), LEAF
212 1-676-707-21 PICK-UP FLEXIBLE BOARD
213 A-3315-306-A SHAFT (FEED) ASSY
M902 A-3291-674-A MOTOR ASSY, SLED (SLED)
