CDX-CA850/CA850X/CA860X

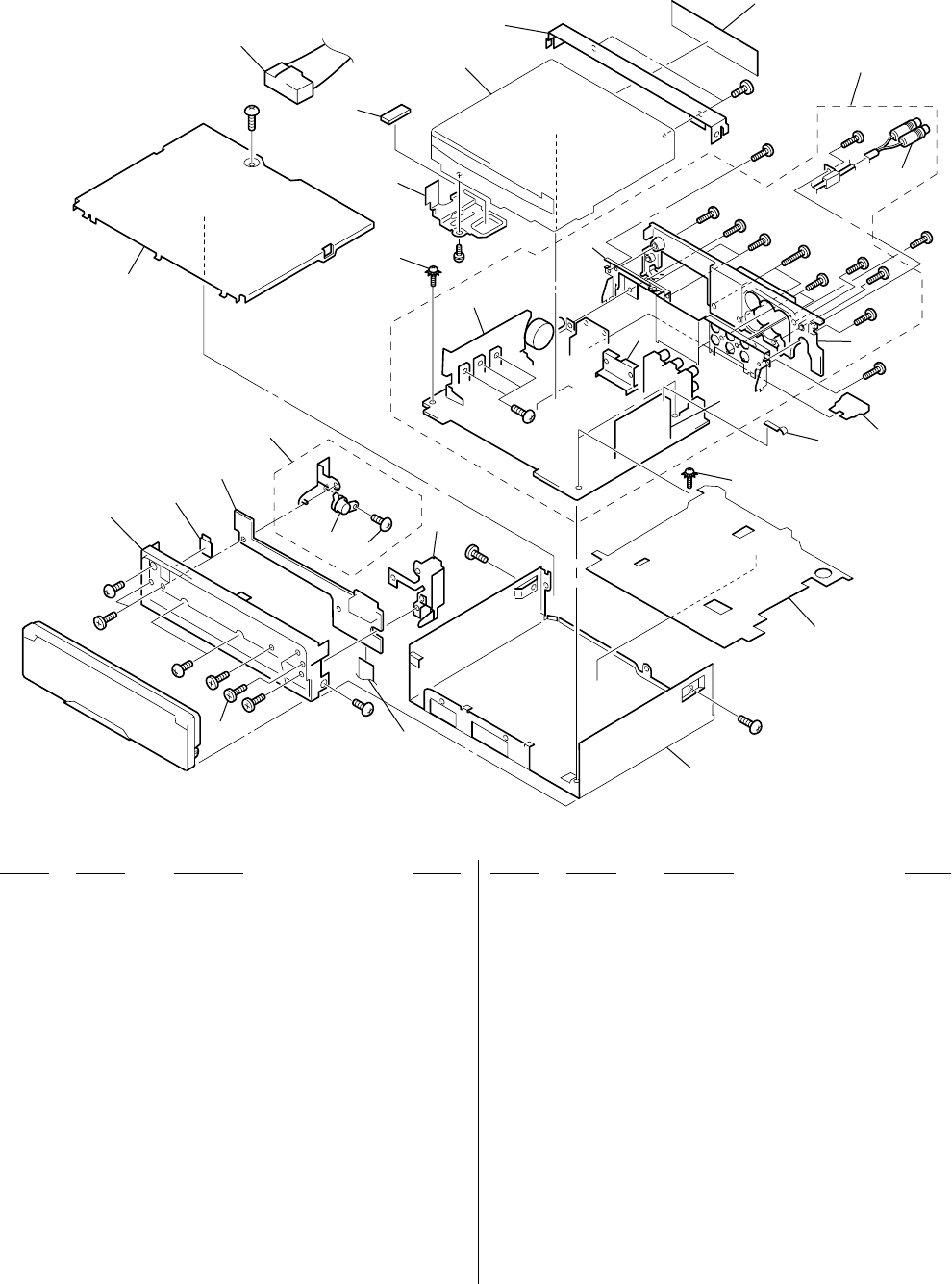

4-1. CHASSIS SECTION
1
2
3
4
5
6
7
8
9
10
11
16
13
12
15
14
17
23
25
17
18
19
20
21
22
24
#2
#2
#2
#1
F901
TUX201
#1
#1
#5
#6
#6
#6
#7
#4
MG-383Z-121//Q
#3
#3
#3
#1
#1
#1
#13
#1
#1
#5
#6
#5
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1 X-3378-512-1 PANEL ASSY, SUB
2 3-040-990-01 BUTTON (EJECT)
* 3 1-680-868-11 SUB (CD) BOARD
4 X-3376-699-1 GEAR ASSY
5 3-030-909-01 DAMPER, OIL
6 3-713-786-51 SCREW +P 2X3
7 X-3377-621-1 LOCK ASSY
* 8 3-223-782-01 COVER
9 1-776-207-72 CORD (WITH CONNECTOR) (POWER)
(CA850X/CA860X)
9 1-776-527-71 CORD (WITH CONNECTOR) (ISO) (POWER)
(CA850)
* 10 3-041-012-01 BRACKET (CD)
* 11 3-227-287-01 SHEET, DUST PROTECTION
* 12 3-223-783-21 CHASSIS (BACK)
* 13 3-223-780-01 HEAT SINK (CA850)
* 13 3-223-780-21 HEAT SINK (CA850X/CA860X)
* 14 3-223-785-01 HEAT SINK (REG/D)
* 15 3-040-998-01 BRACKET (IC)
* 16 A-3283-144-A MAIN BOARD, COMPLETE (CA850)
* 16 A-3283-145-A MAIN BOARD, COMPLETE (CA860X)
* 16 A-3283-146-A MAIN BOARD, COMPLETE (CA850X)
17 3-376-464-11 SCREW (+PTT 2.6X6), GROUND POINT
* 18 3-045-878-01 PLATE (TU), GROUND
19 1-790-355-51 CORD (WITH CONNECTOR) (RCA)
(SUB OUT (MONO))
* 20 3-224-755-01 SHEET, INSULATING
* 21 3-223-781-01 CHASSIS
22 3-047-812-01 SCREW (LOCK)
* 23 3-045-857-01 HEAT SINK (CD)
24 1-792-195-11 CABLE, FLEXIBLE FLAT (14 CORE)
25 3-046-626-01 SHEET, RADIATION
F901 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A
TUX201 A-3220-812-A TUNER UNIT (TUX-020)
