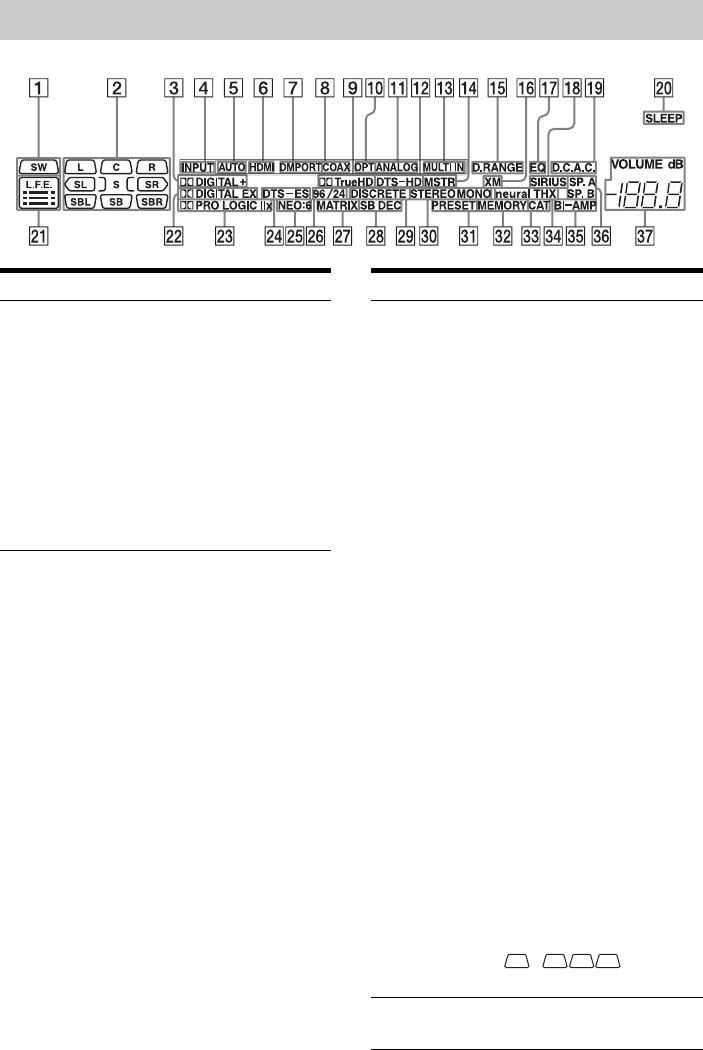

About the indicators on the display
Name Function
A SW Lights up when sub woofer
is connected and the audio
signal is output from the
SUB WOOFER jack. While
this indicator lights up, the
receiver creates a sub
woofer signal based on the
L.F.E. signal in the disc
being played back or the
low frequency components
of the front channels.
B Playback
channel
indicators
L
R
C
SL
SR
S
SBL
SBR
SB
The letters (L, C, R, etc.)
indicate the channels being
played back. The boxes
around the letters vary to
show how the receiver
downmixes the source
sound (based on the speaker
settings).
Front Left
Front Right
Center (monaural)
Surround Left
Surround Right
Surround (monaural or the
surround components
obtained by Pro Logic
processing)
Surround Back Left
Surround Back Right
Surround Back (the
surround back components
obtained by 6.1 channel
decoding)
Example:
Recording format (Front/
Surround): 3/2.1
Output channel: Surround
speakers are set to “NO.”
Sound Field: A.F.D. AUTO
C ;Dolby
Digital+
Lights up when the receiver
is decoding Dolby Digital+.
Name Function
LSW
SL
SR
CR
