HT-DDW900
2-662-263-11 (2)
HDMI is the abbreviated name for High-
Definition Multimedia Interface. It is an
interface which transmits video and audio
signals in digital format.
The sound is output from the TV speaker only
when a playback component and this receiver,
as well as this receiver and the TV are
connected via the HDMI jack. To output the
sound from the supplied speakers and to take
advantage of the multi channel surround
sound, be sure to
– connect the digital audio jacks on the
playback component to the receiver.
– turn off or mute the TV’s volume.
Notes on HDMI connections
• The multi/stereo area audio signals of a
Super Audio CD are not output.
• Turn on the receiver when the video and
audio of a playback component are being
output to a TV via the receiver. If the power
supply of the receiver is not turned on,
neither video nor audio is transmitted.
• Audio signals (sampling frequency, bit
length, etc.) transmitted from a HDMI jack
may be restricted by the connected
component. Check the setup of the
connected component if the image is poor or
the sound does not come out of a component
connected via the HDMI cable.
• Refer to the operating instructions of each
component connected for details.

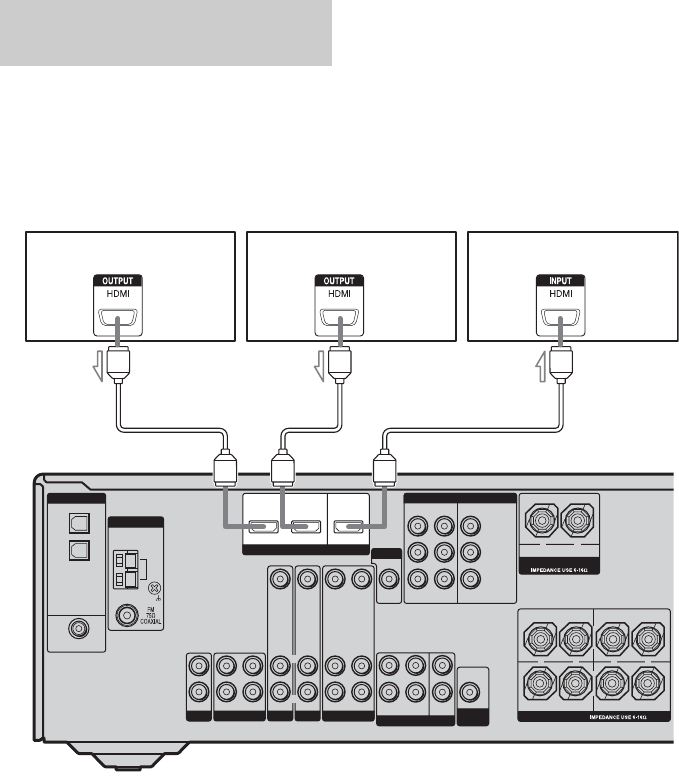

Hooking up components with
HDMI jacks
DIGITAL
HDMI
VIDEO 1
IN
VIDEO 2
IN
DVD
IN
COAXIAL
OPTICAL
ANTENNA
AM
DVD
IN
VIDEO 2
IN
MONITOR
OUT
COMPONENT VIDEO
Y
ASSIGNABLE
ASSIGNABLE
P
B
/C
B
/B–Y
P
R
/C
R
/R–Y
SURROUND FRONT A
R
R
L
L
+
–
+
–
CENTER
+
–
SPEAKERS
SPEAKERS
MONITOR OUT
SA-CD
/
CD
MD/TAPE
OUT
L
R
R
IN
L
R
L
R
AUDIO IN
VIDEO IN
DVD
AUDIO IN
IN
SUB
WOOFER
AUDIO
OUT
VIDEO OUT
VIDEO IN
VIDEO 2
AUDIO IN
VIDEO OUT
VIDEO 1
AUDIO OUT
VIDEO IN
L
R
MONITOR
L
SURROUND
SUB
WOOFER
CENTER
MULTI CH IN
FRONT
DVD IN VIDEO 2 IN
DVD player Satellite tuner TV monitor, projector, etc.
AAA
A HDMI cable (not supplied)
We recommend that you use a Sony HDMI cable.
