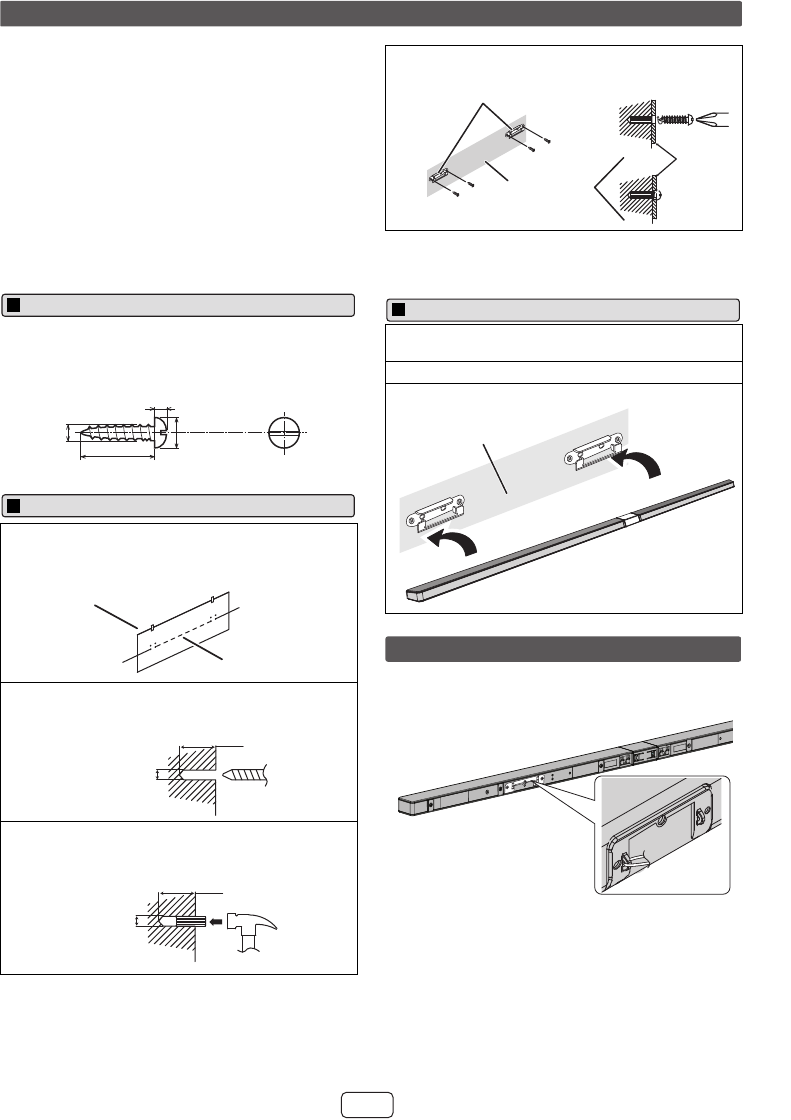

HT-SL70 / HT-SL75
E-9
2011 October 7
Caution:
● Be very careful to prevent the sound bar from falling when
mounting on the wall.
● Before mounting, check the wall strength. (Do not put
on the veneer plaster or whitewashed wall. The sound
bar may fall.) If unsure, consult a qualified service
technician.
● Mounting screws are not supplied. Use appropriate
ones.
● Check all wall mount angle screws for looseness.
● Select a good location. If not, accidents may occur or
the sound bar may get damaged.
● SHARP is not responsible for accidents resulting
from improper installation.
● Do not let children dangle on the sound bar once it is
attached on the wall as it can cause damage and injury.
SHARP designed the sound bar so you may hang them on
the wall. Use proper screws (not supplied). See below for
size and type.
Note:
Make sure all screws are fully tightened. (screws are not
supplied)
Safety wires (not supplied) are useful to prevent the sound
bar from falling off the table.
Loop the safety wires (not supplied) into each hole as
shown and tie the safety wires to the LCD TV stand.
System preparation (continued)
1 Fix the pattern paper to the wall in horizontal
position as below.
2 Make a hole on the wall following the screw point
marks on the pattern paper by using a drill.
3 Fix a wall mount plug (not supplied) into the hole
using a hammer, until it is flush with the wall
surface.
Driving screws
1/8" (3.2 mm)
3/8" (9 mm)
7/8" (Min. 22 mm)
3/16"
(5 mm)
Fixing wall mount angle
Pattern paper
Wall surface
Wall surface
3/8" (8-9 mm)
1-1/4" (32 mm)
Wall surface
3/8" (8-9 mm)
1-1/4" (32 mm)
4 Screw the wall mount angle to the wall as shown in
the illustration. (Total screw is 4 pieces)
1 Align the wall mount slot at the sound bar to the
wall mount angle.
2 Slot the sound bar into the wall mount angle.
3 Fix them securely.
Wall surface
Wall mount angle
Wall
mount
angle
(screws x 2)
(screws x 2)
Installing the sound bar
Wall surface
Falling prevention
