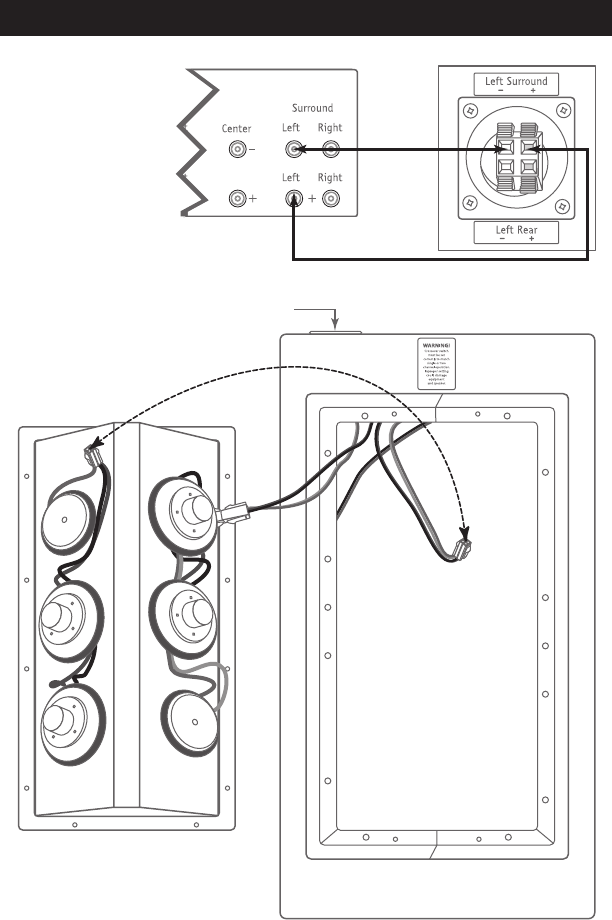

Wiring Diagram 2. Single-channel operation (bi-polar).
Pre-wiring the Speaker (continued)
5
Amplifier/Receiver
Terminal Cup
Terminal Cup
SI-744 Enclosure Front View
SI-744 Baffle Back View
Left
Rear
Left
Surround
Left
Surround
NOTE: Follow this diagram
for single mode operation,
the example uses the
left channel. Connect
the left surround channel
output from the amplifier
to either set on inputs at
the terminal cup. Be sure
to untape and flip the switch on the
crossover to single mode operation
(see illustration on page 3).
Repeat for the right speaker.
