MidiLand 750 Speaker System User Manual



SR
SLFLFR
TO SPEAKERS
CEN
FL
FR
SL
SR
SW
CEN
5.1CHANNEL INPUT
STEREO
L
R
MAIN POWER
FUSE AC IN
ONOFF
7

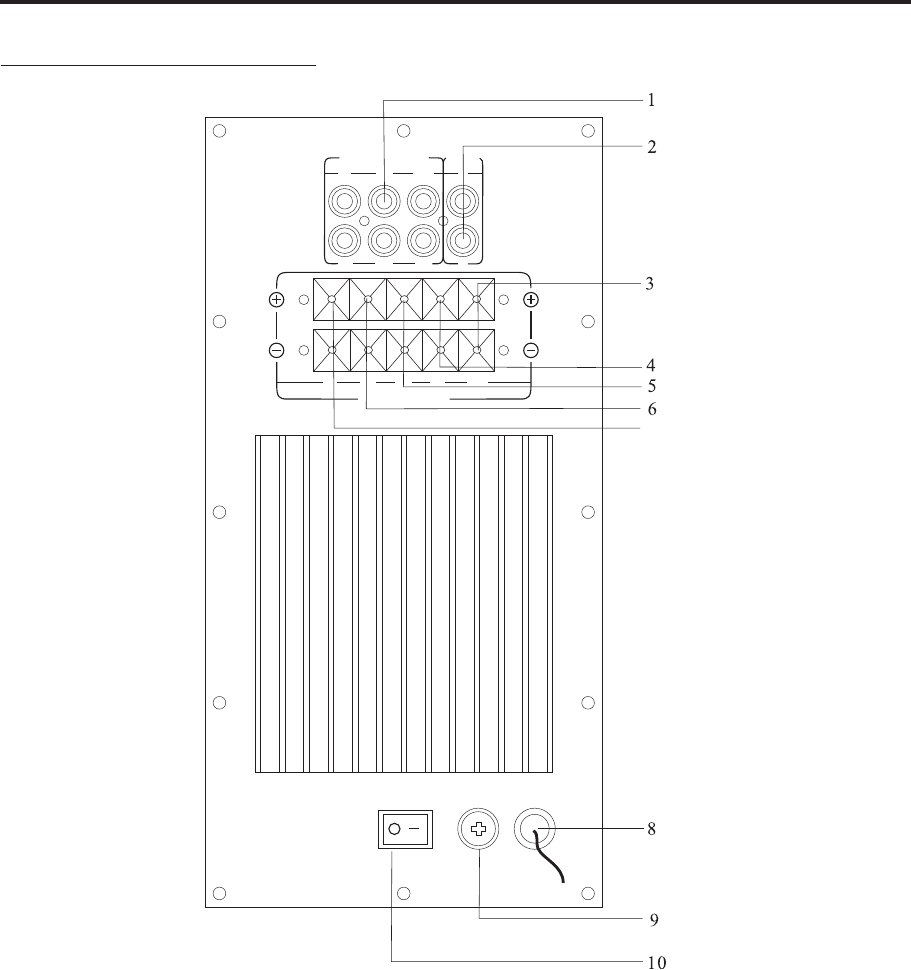

DESCRIPTION OF THE REAR PANEL
REAR PANEL
- 7 -
1. DVD/5.1 Input
Connectors
2. Stereo Input Connectors
3. Center Channel Output
Connectors
4. Rear-Left Channel Output
Connectors
5. Rear-Right Channel Output
Connectors
6. Front-Left Channel Output
Connectors
7. Front-Right Channel Output
Connectors
8. AC Power Cord
9. Fuse
10. Main Power Switch
