AC IN
SUBWOOFER
CENTER
SPEAKER
REAR
SPEAKERS
RIGHT LE FT
FRONT
SPEAKERS
RIGHT LE FT
ANALOG VIDEO OUT
COAXIAL
FM 75
AM LOOP
AM
EXT
VIDEO
S-VIDEO
IN
L
R
OPTICAL
DIGITAL IN
AUX
A
N
T
E
N
N
A
YP
B
P
R
CONPONENT VIDEO OUT
COAXIAL
FM 75
AM LOOP
AM
EXT
A
N
T
E
N
N
A
132

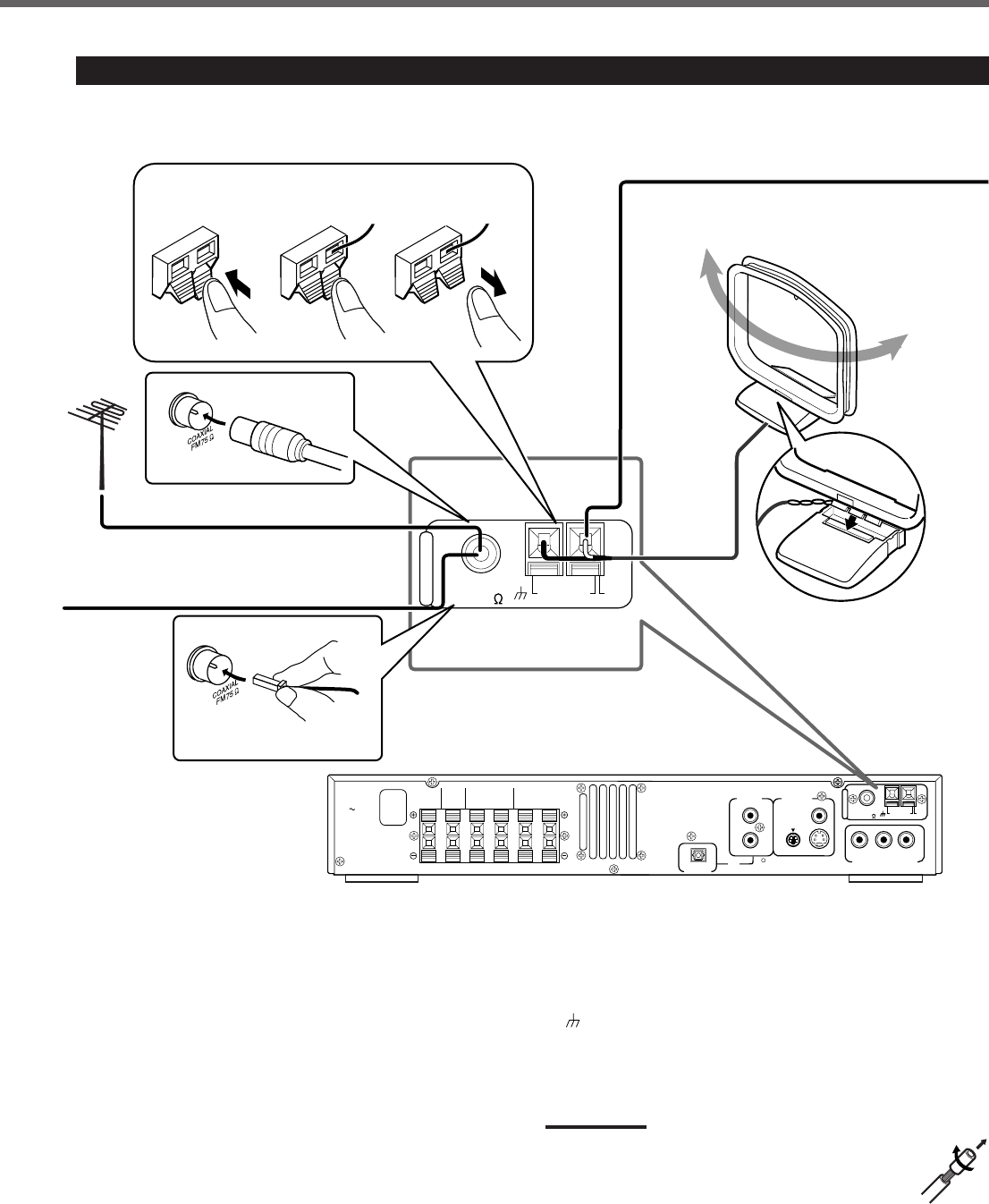

Connecting the FM and AM Antennas
FM Antenna (supplied)
If FM reception is poor, connect
outdoor FM antenna (not supplied).
AM antenna connection
Connect the supplied AM loop antenna to the AM LOOP terminals.
Connect the white cord to the AM EXT terminal, and the black cord
to
terminal.
Turn the loop until you have the best reception.
• If reception is poor, connect an outdoor single vinyl-covered wire
to the AM EXT terminal. (Keep the AM loop antenna connected.)
Note:
If the AM loop antenna wire is covered with vinyl, remove
the vinyl by twisting it as shown in the diagram.
Snap the tabs on the loop into
the slots of the base to
assemble the AM loop antenna.
If AM reception is poor, connect single vinyl-covered
wire (not supplied).
AM Loop Antenna
(supplied)
FM antenna connection
Connect the supplied FM antenna to the COAXIAL FM 75 Ω
terminal as temporary measure.
Extend the supplied FM antenna horizontally.
• If reception is poor, connect an outdoor antenna.
Before attaching a 75 Ω coaxial cable (with a standard type
connector), disconnect the supplied FM antenna.
Center unit
