Specications

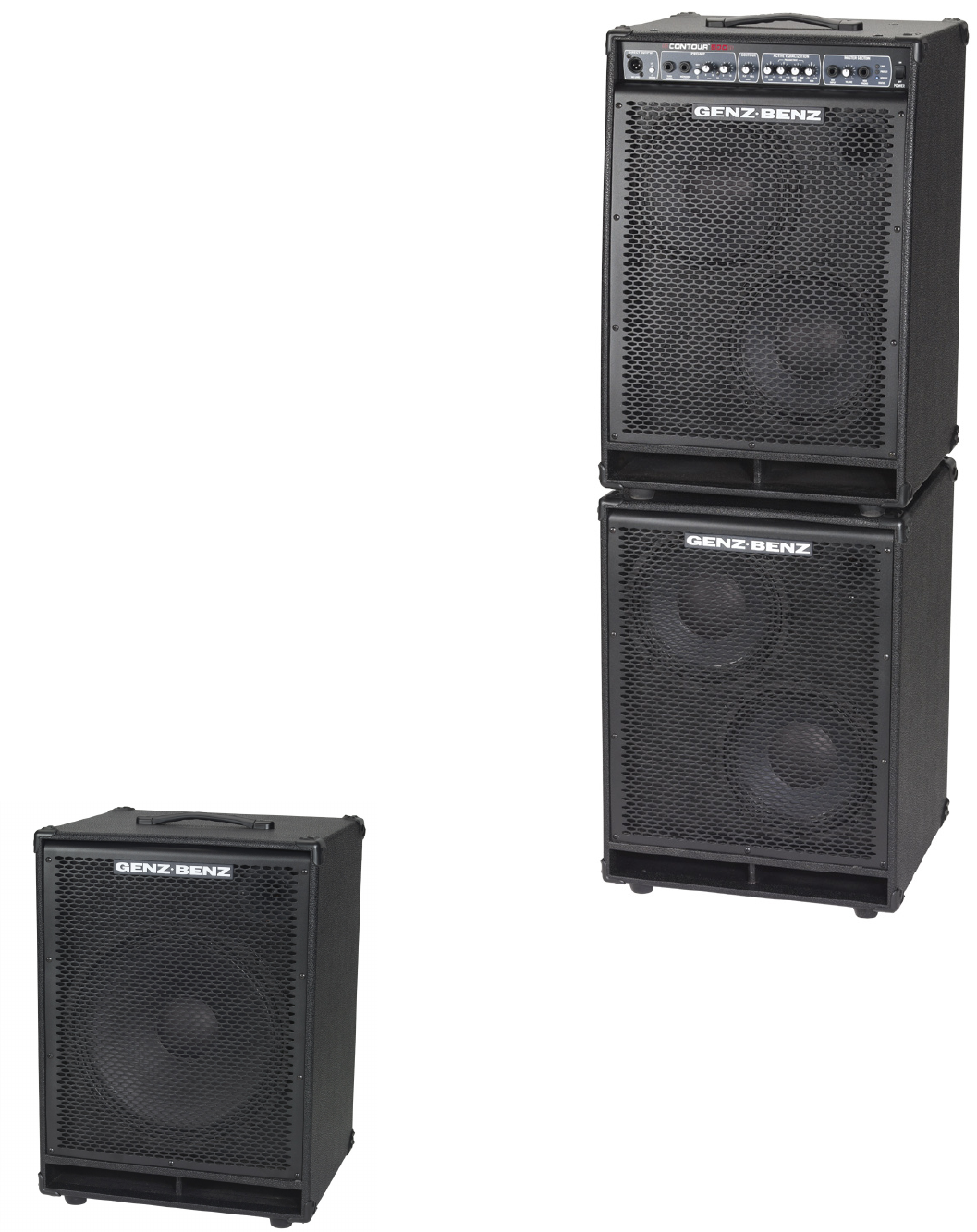

CTR500-115T COMBO -This model is the amplier with a single
15” low frequency driver and compression tweeter. It produces 300
watts into the 8 ohm combo conguration and 500 watts when used
with an additional 8 ohm extension cabinet. A tweeter level control
is provided. It will be necessary to use a Neutrik Speak-On™
connection when using an extension cabinet with this combo.
Dimensions: 27”H X 18”W X 16”D
Weight: 48 LBS
CTR500-210T COMBO -This model is the amplier with 2 x 10”
low frequency drivers and compression tweeter. It produces 300
watts into the 8 ohm combo conguration and 500 watts when used
with an additional 8 ohm extension cabinet. A tweeter level control
is provided. It will be necessary to use a Neutrik Speak-On™
connection when using an extension cabinet with this combo.
Dimensions: 27”H X 18”W X 16”D
Weight: 52 LBS
CTR500-EXT115 - Matching extension cabinets are offered for
stacking under the CONTOUR™500 combos. This model is an
identical cabinet conguration of the 1 x 15” combo. Speak-On™ and
1/4” connectors along with a tweeter level control are provided on the
rear panel.
Dimensions: 24½”H X 18”W X 16”D
Weight: 40 LBS
CTR500-EXT210 - Matching extension cabinets are offered for
stacking under the CONTOUR™500 combos. This model is an
identical cabinet conguration of the 2 x 10” combo. Speak-On™
and 1/4” connectors along with a tweeter level control are provided
on the rear panel.
Dimensions: 24½”H X 18”W X 16”D
Weight: 42 LBS
