NX404
English
English
Quick start guide
INSTALLATION
1. This set is exclusively for use in cars with a negative ground 12 V power supply.
2. Read these instructions carefully.
3. Be sure to disconnect the battery “-”
terminal before starting. This is to prevent
short circuits during installation. (Figure 1)
2. Package Contents
1. Before Starting
Main unit .........................................................................................................................1
Wiring harness ................................................................................................................1
GPS antenna ..................................................................................................................1
Clamp for GPS antenna's cable .......................................................................................3
Double face tape for GPS Antenna ...................................................................................1
Owner’s manual (CD-R) ...................................................................................................1
CONTENTS
1. Before Starting ..........................................................................................................27
2. Package Contents ....................................................................................................27
3. General Cautions ......................................................................................................27
4. Cautions On Installation .............................................................................................27
5. Installing The Main Unit ..............................................................................................28

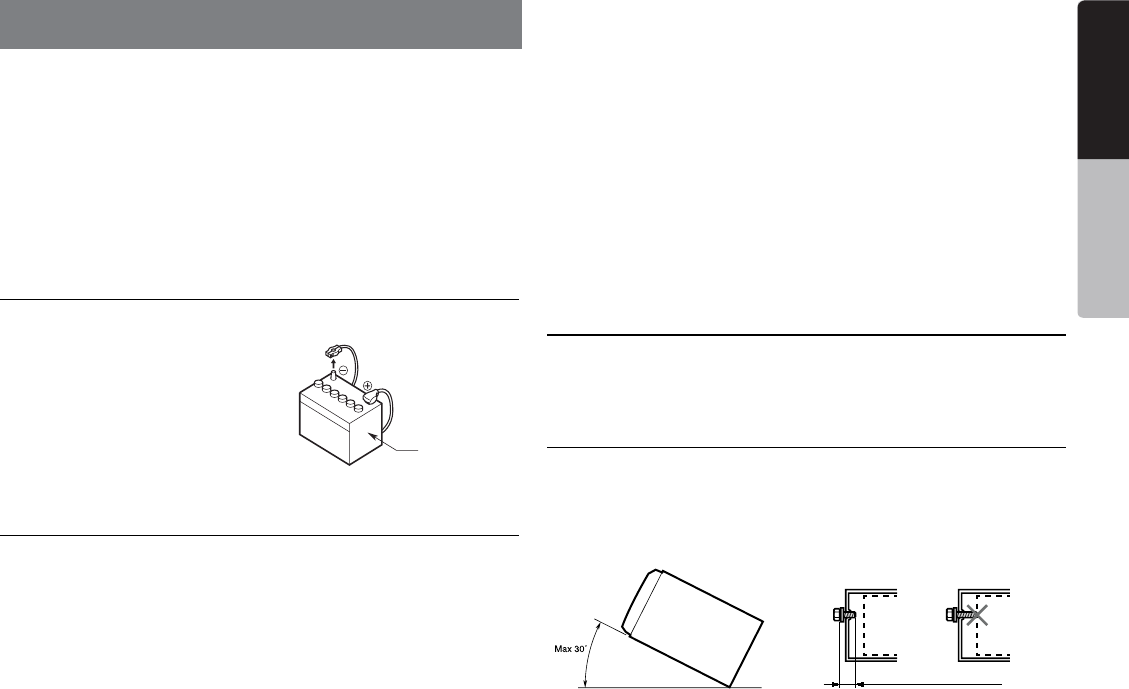

Figure 1
Car battery
Quick Start Guide and
Installation manual............................................................................................................1
Warranty card............................................................ ......................................................1
Remote controller ........................................................... ................................................1
HDMI cable holder................................................................ ...........................................1
Machine screw(M2 x 4)................................................................................ ....................2
RCA output cable....................................................................................... .....................1
Electro tap .......................................................................................................................2
Flush mount bolts ...........................................................................................................8
Hexagon Head Screw ......................................................................................................8
AV cable .........................................................................................................................1
SWI cable .......................................................................................................................1
3. General Cautions
1. Do not open the case. There are no user- serviceable parts inside. If you drop anything into
the unit during installation, consult your dealer or an authorized Clarion service center.
2. Use a soft, dry cloth to clean the case. Never use a rough cloth, thinner, benzine, or alcohol
etc. For tough dirt, apply a little cold or warm water to a soft cloth and wipe off the dirt gently.
1. Prepare all articles necessary for installing the source unit before starting.
2. Install the unit within 30° of the horizontal plane. (Figure 2)
3. If you have to do any work on the car body, such as drilling holes, consult your car dealer
beforehand.
4. Use the enclosed screws for installation. Using other screws can cause damage. (Figure 3)
NX404
Figure 2
Figure 3
Chassis
Chassis
Damage
Max. 8 mm (M5 screw)
4. Cautions on Installation
