4-26 Service Manual
Fuser assembly removal
CAUTION: Unplug the printer before you begin.
1. Remove the fuser wick assembly cover. See “Fuser wiper cover assembly removal” on page 4-4.
2. Remove the redrive assembly. See “Redrive assembly removal” on page 4-74.

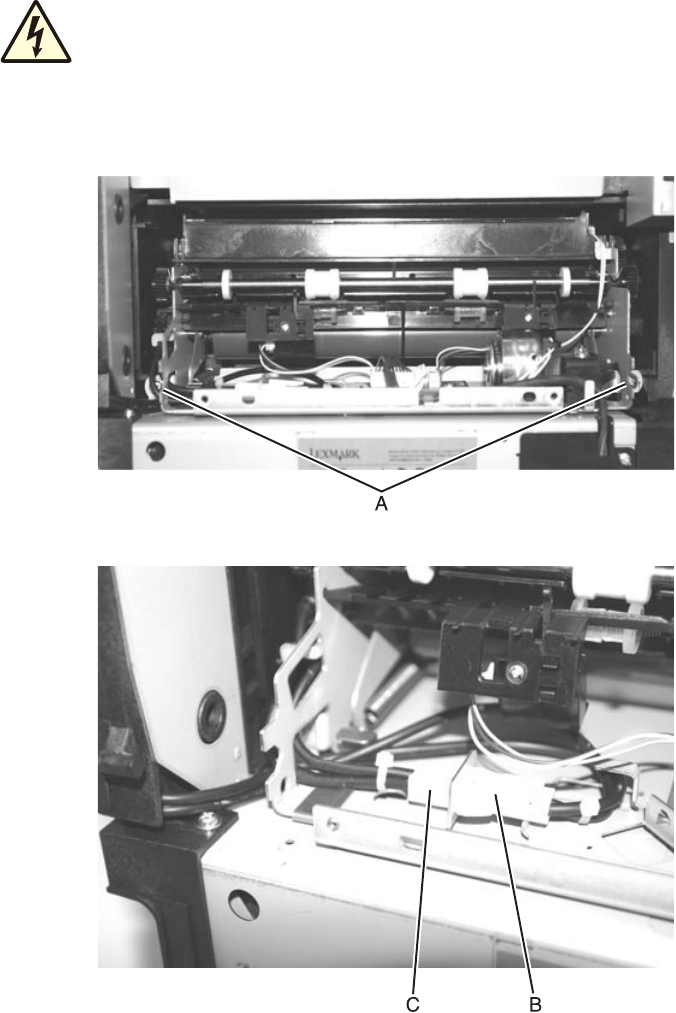

3. Remove the fuser mounting screws (A).
4. Disconnect the fuser to LVPS AC cable (B) from the fuser lamp connector (C).
