Checks and Adjustments
5-6
1705A Spectrum Monitor

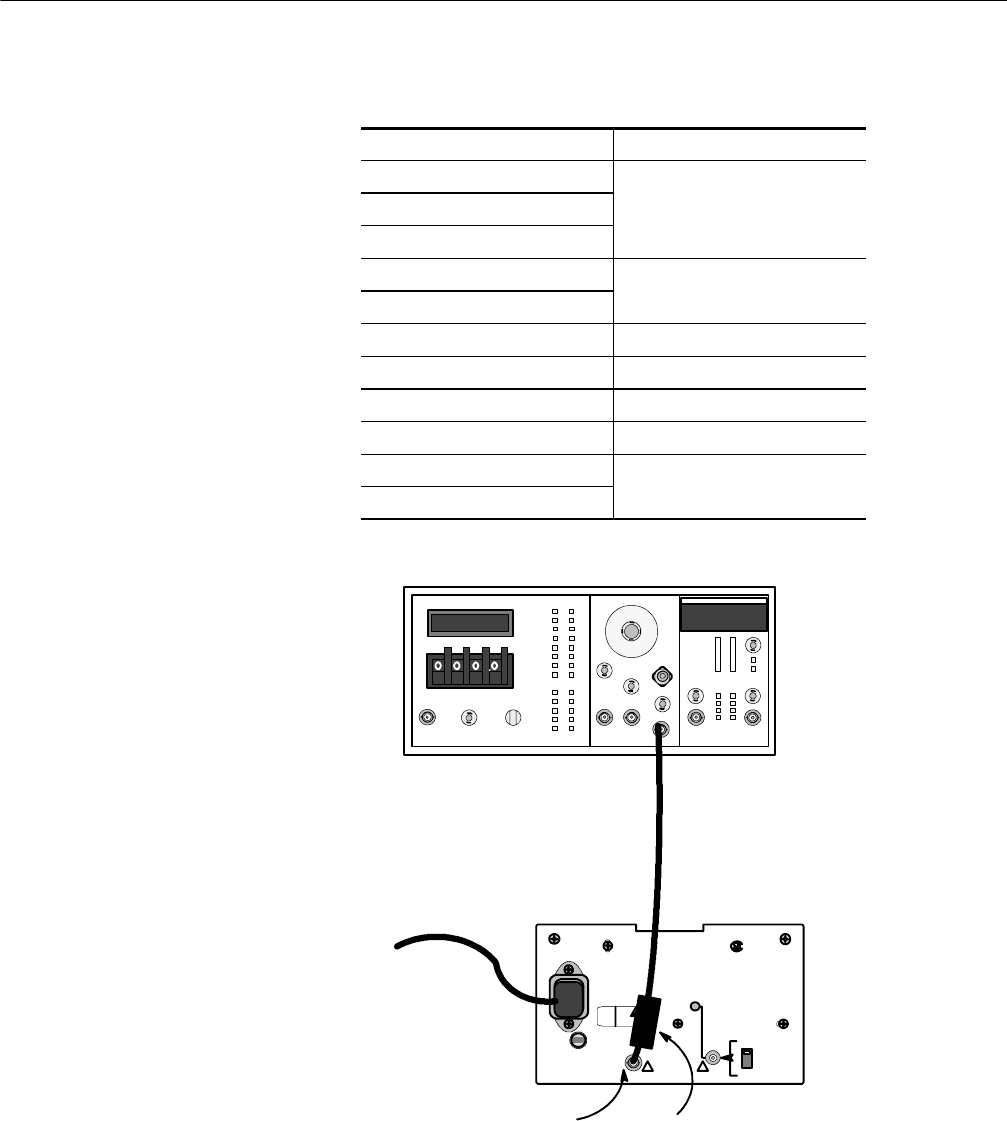

Table 5- 1: Preliminary Control Settings
POWER ON
INTENSITY Set to Preference
FOCUS
SCALE
VERTICAL POSITION Set later
HORIZONTAL POSITION
INPUT 70 MHz
RESOLUTION 300 kHz
VIDEO off
SPAN/DIV FULL
CENTER FREQUENCY anywhere
SWEEP SPEED
y
! !
SG503
Comb
Generator
VARIABLE
AUTOTRANSFORMER
70 MHz
INPUT
1705A
Figure 5-1: Initial equipment connections
