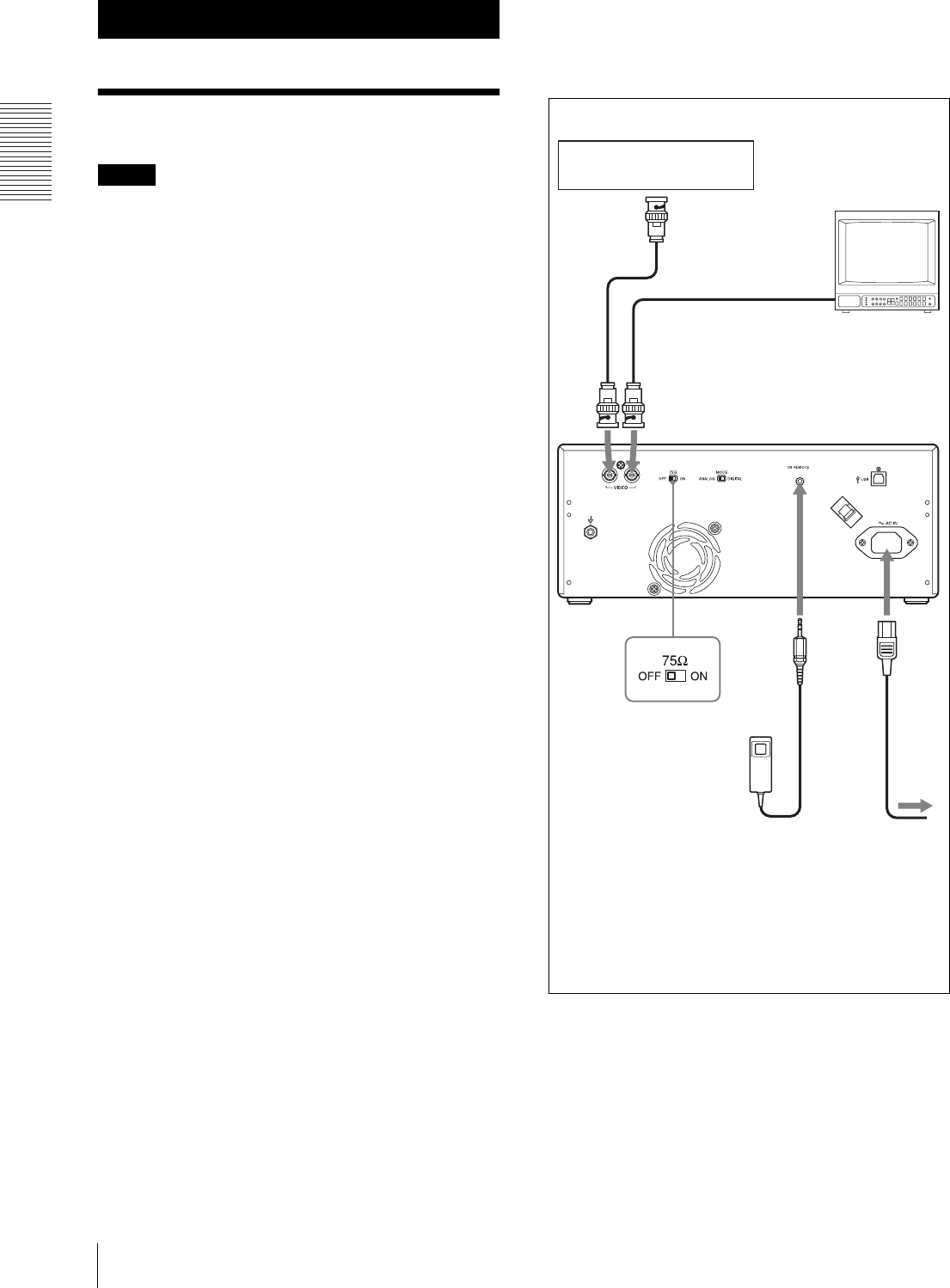

Analog Mode
Connections
12
Analog Mode
Connections
Notes
Turn off the power to each device before making any
connections.
Connect the AC power cord last.
After completing connections, switch to the analog
mode before turning on the printer.
The printer will not print images imported via the USB
terminal.
to video output
connector
Connecting cable
(BNC y BNC)
(not supplied)
Video equipment
Color/black and
white video monitor
to video input
connector
Connecting cable
(not supplied)
to VIDEO OUT
to
VIDEO
IN
to -
AC IN
to REMOTE
to wall outlet
RM-91 remote control unit
(not supplied)
a) Set the 75 Ω select switch as follows.
ON: When nothing is connected to the VIDEO OUT
connector, set the switch to this position.
OFF: When a video monitor or other video equipment is
connected to the VIDEO OUT connector, set the switch
to this position.
75 Ω select
switch
a)
AC power
cord (not
supplied)
