Note for connecting the
speaker cords to the receiver
If the speaker cords are not properly connected,
the receiver may be fatally damaged.
To avoid the possibility of damage, follow the
instructions below.
1 Do not hook up the speaker cords while the
receiver power is turned on.
Be sure to turn off the power first. After
turning off the power, it is recommended that
you disconnect the power cord for greater
safety.
2 Do not allow the stripped end of a speaker
cord to come into contact with any part of the
rear panel or the adjacent speaker terminal.
Before inserting a stripped speaker cord into a
speaker terminal, twist the wires tightly
together to prevent contact between any
single strand from the cord and the rear panel
or the adjacent speaker terminal on the
receiver.

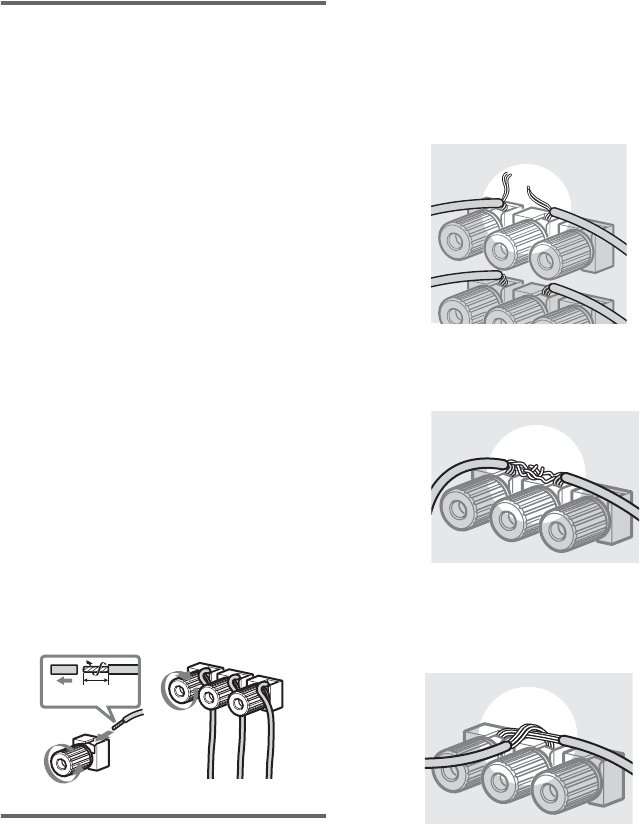

Remove about 10 mm of insulation at the end of
the cord, then twist the exposed wires.
Connect the stripped ends of the cords to the
terminals, taking care to avoid contact between
the cords.
Make sure the cords are firmly connected to the
speaker and receiver terminals.
To avoid short-circuiting the
speakers
Short-circuiting of the speakers may damage the
receiver. To prevent this, be sure to follow these
precautions when connecting the speakers.
Make sure the bare wire of each speaker cord
does not touch another speaker terminal or the
bare wire of another speaker cord.
Examples of poor speaker cord
connections
10 mm
Stripped cords are not fully
attached and are touching the rear
panel of the receiver.
Stripped speaker cord is touching
another speaker terminal.
Stripped cords are touching each
other due to excessive removal of
insulation
