Camcorder Disconnect all power sources before making any connections.
For easy connection of the camcorder, the TV has front audio and video
inputs (shown below). However, if you prefer, you can also connect the
camcorder to the TV’s rear AUDIO and S VIDEO IN jacks.

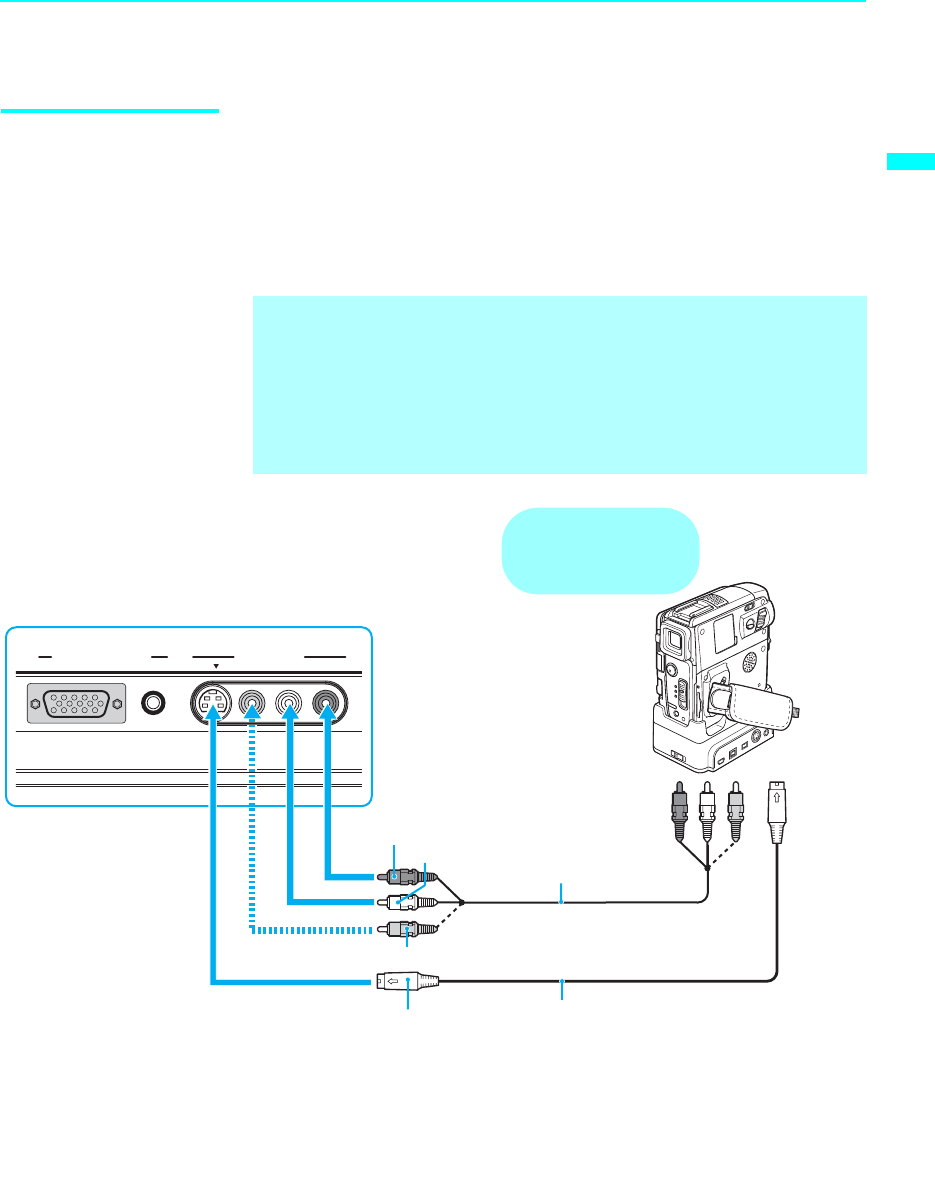

Using A/V and S VIDEO cables, connect the camcorder’s audio and
S VIDEO OUT jacks to the TV’s AUDIO and S VIDEO IN jacks.
✍ If your camcorder is equipped with an i.LINK jack, you can connect it
using i.LINK instead of the A/V inputs. See “Using i.LINK” on page 101.
✍ If you have a mono camcorder, connect its left audio output to the TV’s
AUDIO L (MONO) jack.
✍ If your camcorder is not equipped with S VIDEO, use a VIDEO cable
(yellow) instead of the S VIDEO cable.
