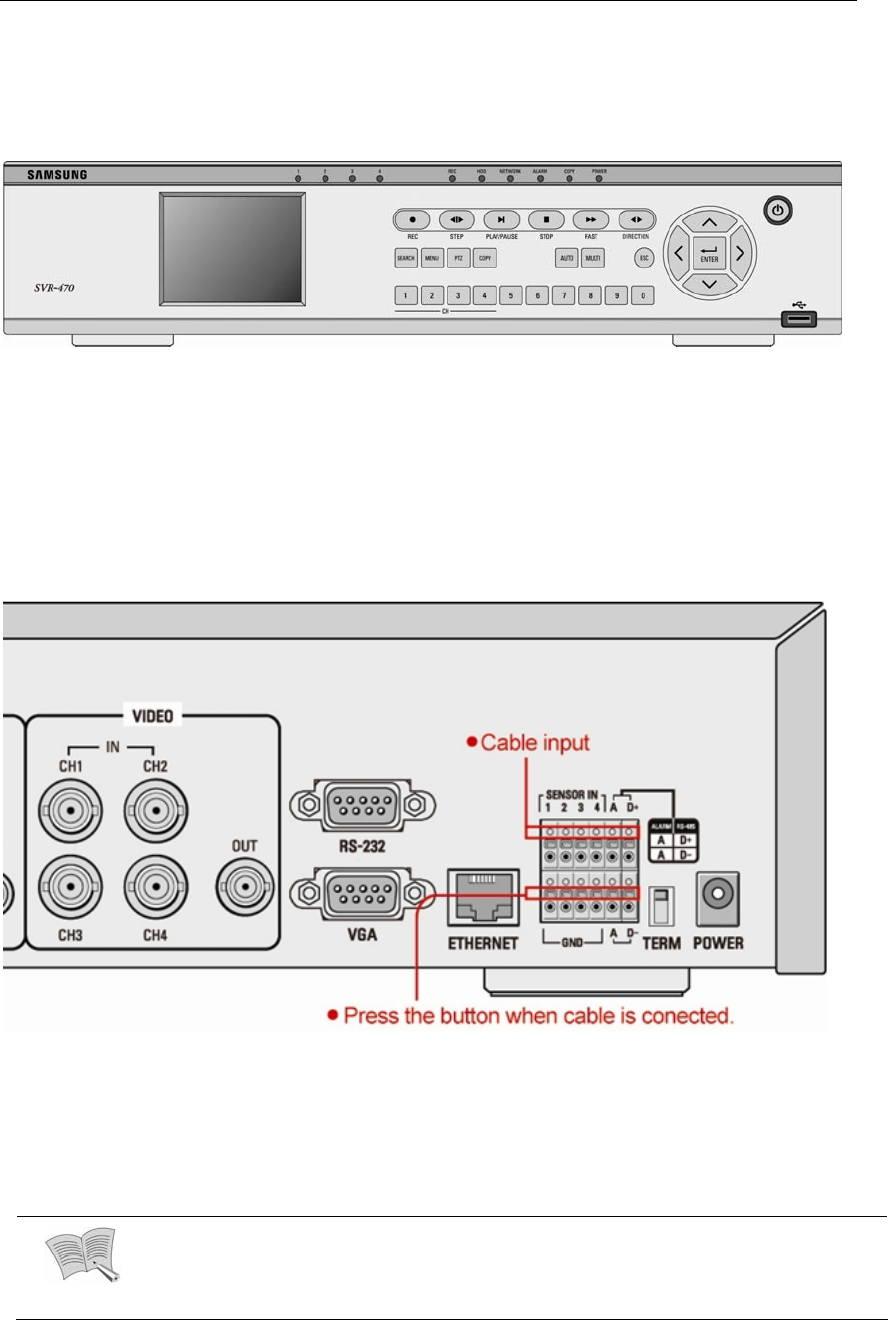

3.2. Detailed Wiring Instructions



LCDMonitorOutput

Youcanusethe3.5"LCDmonitoronthisproductforvisualmonitoring.TosetuptheLCDoperation,go

tothe"System"modeunderSystemSetup.TheLCDperformsidenticallytoaBNC/VGAmonitor.

3.2.4. AlarmInput&Output

Theseexternalsensorconnectionterminalsareusedtoreceiveinformationfromconnectedsensorsand

devices

.

 RelayOutput

Thisalarmoutputterminalisforacontactrelaythatsendsalarmtoanexternaldevice. NO(Normal

Open)andNC(NormalClose)areavailabledependingonthecontacttypes.

Note

Youcandefinetheopera tionofarelayoutputbycoordinatingMotionDetectionand

sensorsattheEventsettingsinthemainmenu.

20
