To SCSI Channel 3
Bridge Cable
Terminators
Terminators
To SCSI Channel 4
To SCSI Channel 5
Terminators
To SCSI Channel 0
To SCSI Channel 1
To SCSI Channel 2
SCSI Channel Cables
Executive PCBA
FCO FCO

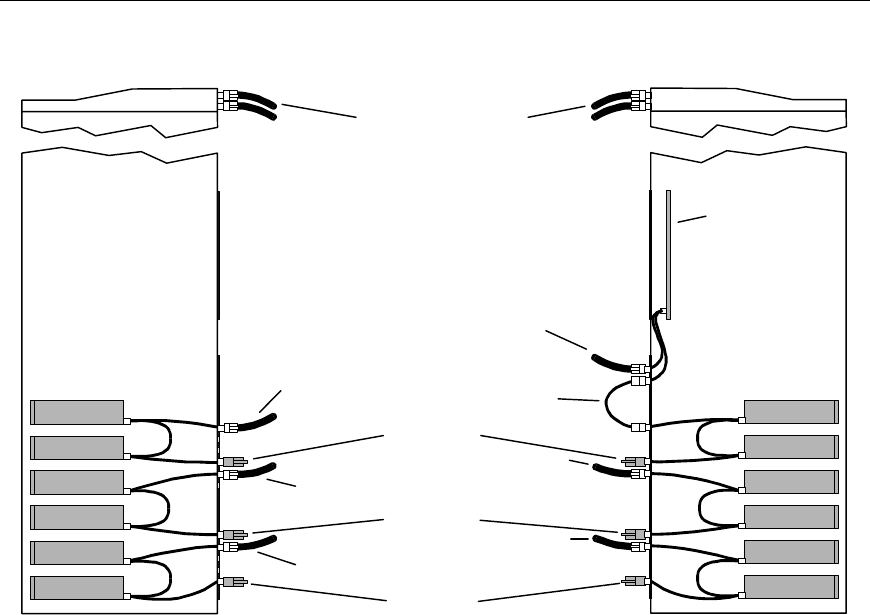

Figure 5-3 TLS-412xxx Cabling Diagram
5.4 Cabling for TLS-58xxx, 68xxx and 88xxx Libraries
Prior to installing a Fibre Channel Option on TLS-58xxx, 68xxx or 88xxx libraries the
tape drive assemblies may need to be installed in the library and the drives will need
to be cabled as shown in section 4. Refer to the Installation section in the TLS-
5000/6000/8000 Installation and Operation Manual (Qualstar document number
501450) for details about tape drive assembly preparation, enabling SCSI termination
power and installation.
Note that all TLS-58xxx, 68xxx and 88xxx models are shipped from the factory with-
out the SCSI interconnect cables or terminators installed. Table 5-3 represents the
preferred cabling for a library with eight tape drives.
501440 Rev. G FCO Type B Installation 5-5
