Controls in detail
Driving systems

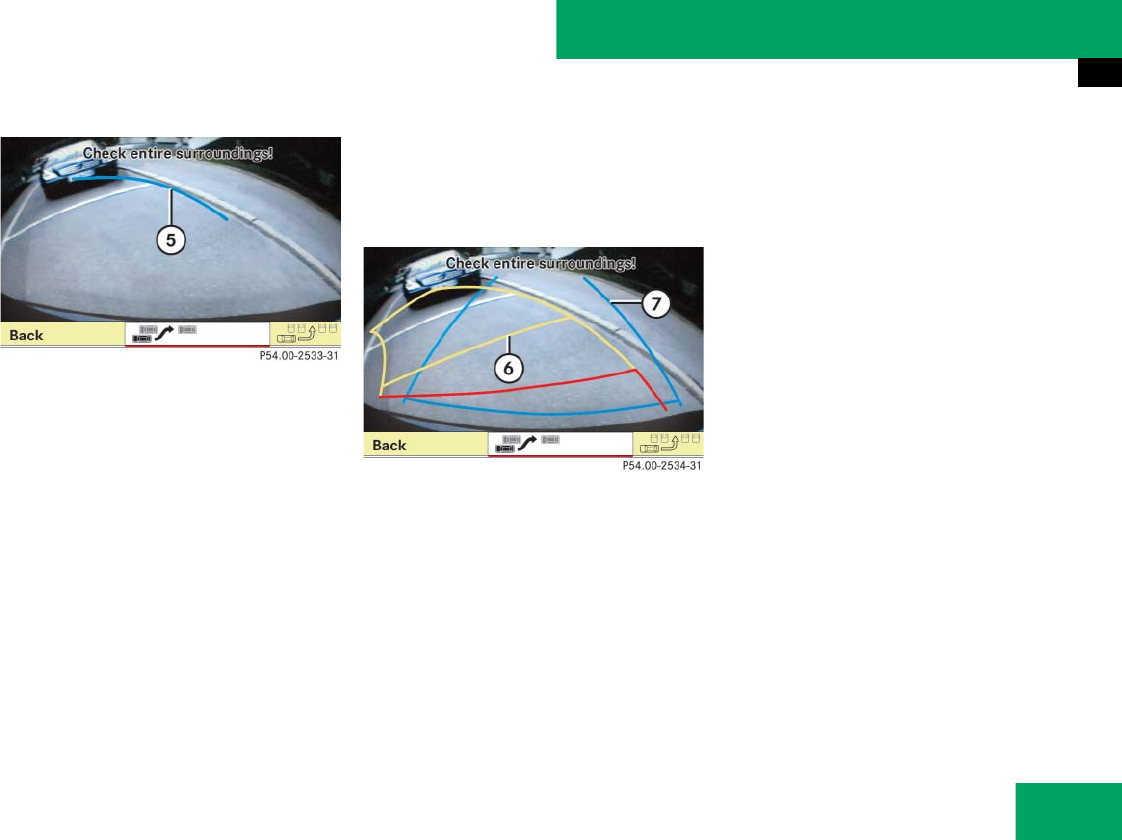

5 Bent blue guide line
̈ Back up with the set wheel angle.
The guide lines in the COMAND display
disappear. After a short distance, the
bent blue guide line 5 appears.
̈ Back up until bent guide line 5 inter-
sects the edge of the parking space,
e.g. the curb.
̈ Stop the vehicle.
6 Yellow and red guide lines for cornering
7 Blue guide line for straight driving
̈ With the vehicle at a standstill, turn
steering wheel as far as it will go in the
opposite direction.
The guide lines for straight driving 7
and cornering 6 appear in the
COMAND display.
̈ Back up using the set wheel angle until
blue guide line 7 for straight driving is
parallel to the edge of the parking
space, e.g. the curb.
̈ Now straighten out steering wheel and
back up until you still have just enough
room behind the vehicle.
While doing so, observe
Parktronic* (
୴ page 405) or Park As-
sist* (
୴ page 409) warning indicators.
i
If you turn the steering wheel while backing
up, the following appears in the COMAND dis-
play: “The steering wheel position has been
changed. Park Assist disabled.”. Pull out of the
parking space and start the parking procedure
over again.
