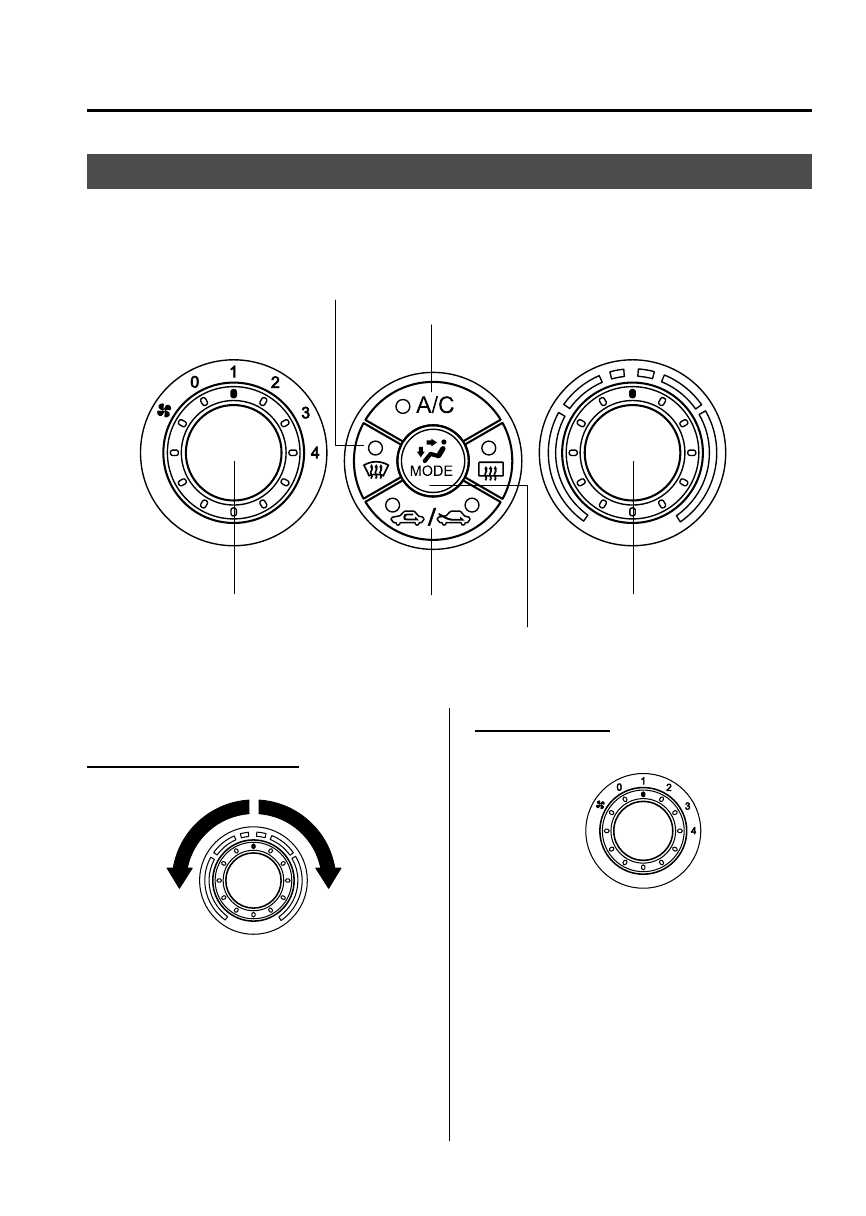

Control Panel
Climate control information is displayed on the information display.
Windshield defroster switch
Fan control dial
Air intake selector
Mode selector switch
Temperature control dial
A/C switch
qControl Switches
Temperature control dial
Cold Hot
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.
Fan control dial
This dial allows variable fan speeds.
0Fan off
1Low speed
2Medium low speed
3Medium high speed
4High speed
Interior Comfort
Climate Control System
6-5
