4-6 Menu Switch Setting
4 ON-SCREEN/MENU SWITCHES
You can customize the VCR’s functions to suit the requirements of your application using the four menu switch setting screens
accessible from the main menu screen.
• ON SCREEN/F. DISPLAY MODE
• VIDEO/VTR MODE
• SRI/EXT, ALARM/SENSOR MODE
• BUZZER/IN OUT
Each menu switch setting screen can be accessed independently from the main menu.
[MENU] button
[SHIFT 7] button
[SET +] button
[SET –] button

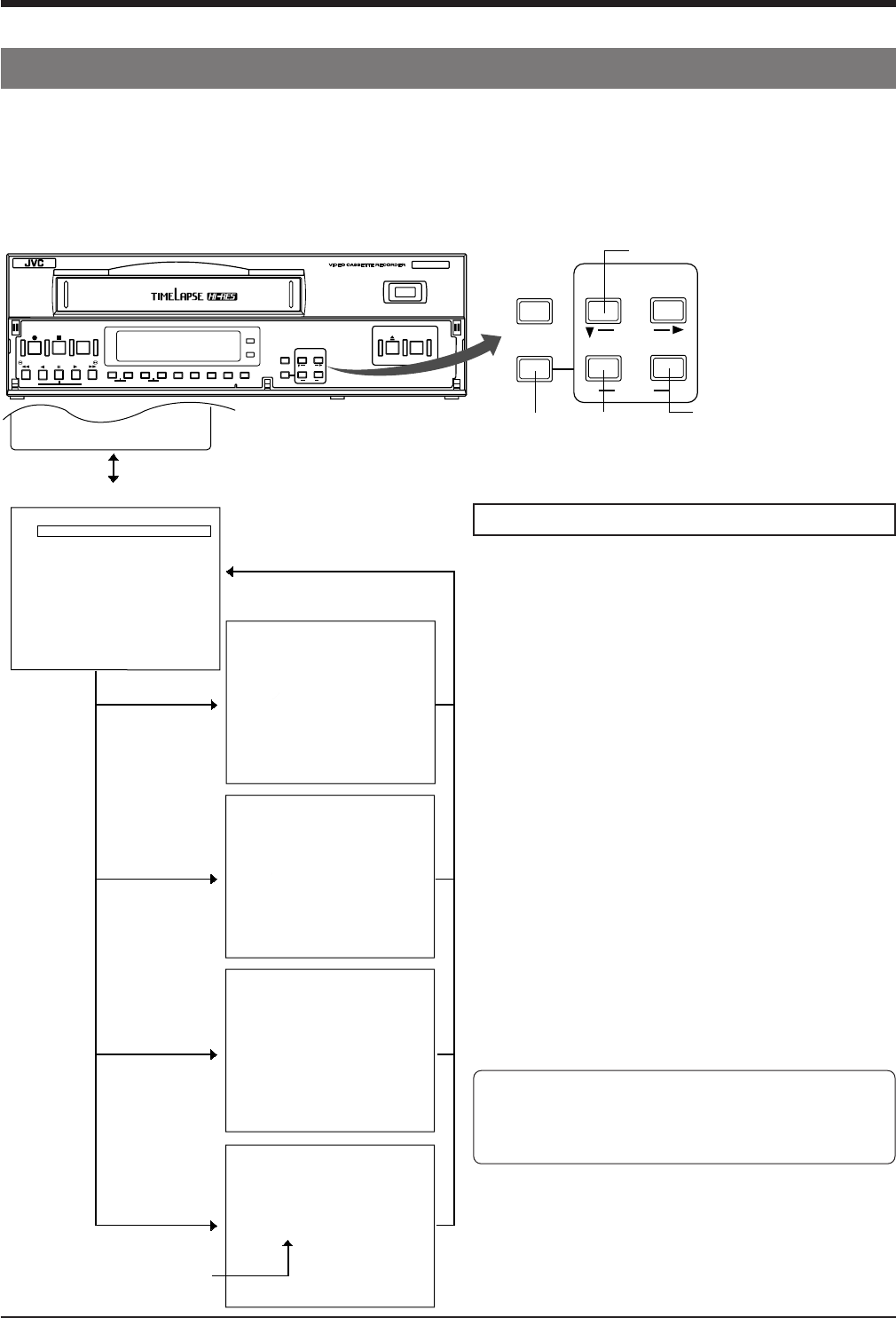

Main menu screen
ON SCREEN/F. DISPLAY MODE
screen
[SET +/–]
button
[MENU] button
Operation
1 Turn on the VCR and monitor.
2 Press the [MENU] button to display the main menu on the
monitor.
3 Press the [SHIFT 7] button to select the menu switch
setting screen you want to set or check.
• Set the cursor on the desired menu switch setting screen.
4 Press the [SET +/–] button.
[ The selected menu switch setting screen is shown on
the monitor.
• The menu switch setting screen consists of several menu
switch items.
5 To change the menu switch setting
1 Press the [SHIFT 7] button to set the cursor on the
menu switch item setting you want to change.
2 Press the [SET +/–] button to specify the set value.
Ⅲ To set more than one menu switch, repeat the above
steps 1 and 2.
6 To check or set the other menu switch setting screens
Press the [MENU] button to restore the main menu screen and
repeat steps 3 to 5.
7 End menu switch setting.
To restore the normal screen from the menu switch setting
screen, press the [MENU] button twice.
• The specified setting value is stored in the VCR’s
memory and retained even if the operating power is
turned off.
• For details on menu switch items, refer to pages 23 to 26.
Normal screen
[MENU] button
VIDEO/VTR
MODE
screen
SRI/EXT,
ALARM/SENSOR
MODE screen
BUZZER/IN OUT
screen
Only shown when the
SA-K97U is installed.
