13. FEATURES OF THE CAMERA SECTION
93
Connect the local remote control unit cable to the REMOTE
connector of this unit.
● Set VTR Setup menu No. 050 REMOTE SELECT of this unit
to LOCAL.
● When also using the DV terminal, set VTR Setup menu No.
050 REMOTE SELECT to IEEE1394.
13-7

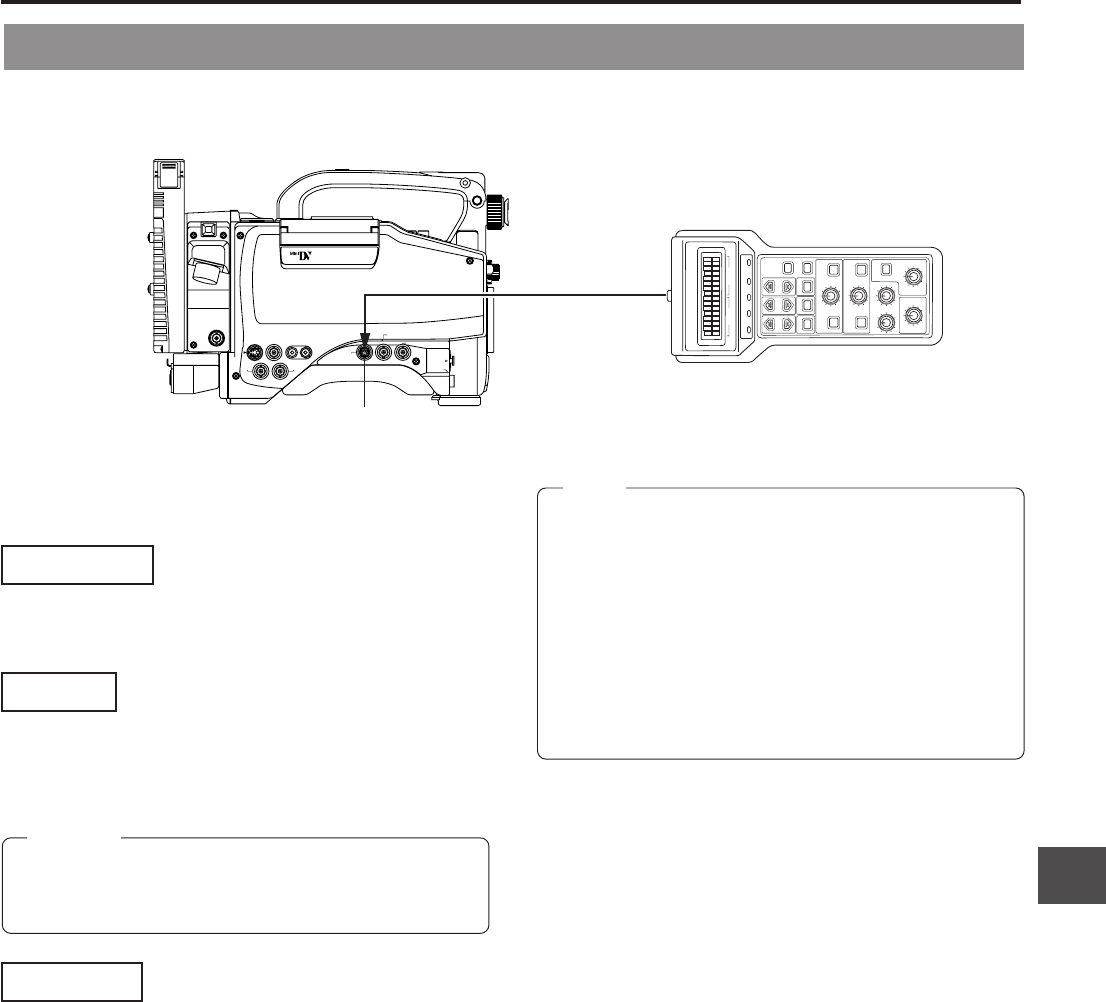

Connecting the Local Remote Control Unit (RM-LP55/RM-LP57)
Connection
• If the switch functions for this unit and the local remote
control unit are the same, the switch function of the local
remote control unit will have priority.
• The IRIS AUTO/MANUAL setting will be the local remote
control unit switch setting regardless of the lens section
switch setting.
• H. PHASE, SC COARSE and SC FINE cannot be
adjusted using the local remote control unit.
• When RM-LP55 is connected, the shutter speed
displayed on RM-LP55 may slightly differ from the speed
displayed on this unit.
Memo:
It is possible to set the switch functions of the camera section
using the local remote control unit (RM-LP55/RM-LP57)
Settings
PUSH
PROMPTER
OUTPUT
VTR/RM
CH-1 CH-2
Y/C OUT
TC IN TC OUT
REMOTE
GENLOCK/AUX IN
DV CAMCORDER
GY-DV550
VIDEO OUT
AUDIO IN
FRONT
LENS
MONITOR OUT
LINE OUT
RM-LP55
REMOTE CONTROL UNIT
FUNC 1 FUNC 2
W.PAINT
GAIN SHUTTER IRIS MANUOPERATE
MENU
FUNC 1
FUNC 2
ENTER
/SET
FILE
W.BAL GAIN
SHUTTER
FOCUS
NEAR
FAR
ZOOM
WIDE
TELE
SLOW
FAST
SLOW
FAST
WHITE PAINT
RB
IRIS
AUTO/MANU
IRIS
CLOSE OPEN
MASTER BLACK
REMOTE
RM-LP55
Operation
When the OPERATE switch of the local remote control unit is
set to ON, the local remote control unit will be operable.
■ Unavailable functions
The following functions are unavailable from the local remote
control unit.
• RM-LP55 : GAIN ALC setting
SHUTTER EEI setting
ZOOM
FOCUS
SC COARSE
SC FINE
H PHASE
GAMMA
TITLE
TITLE SET
• RM-LP57 : SHUTTER EEI setting
GAIN ALC setting
SC COARSE
SC FINE
H PHASE
When setting VTR Setup menu No. 050 REMOTE SELECT
to IEEE1394 + RS232C, the local remote control unit will
be inoperable.
