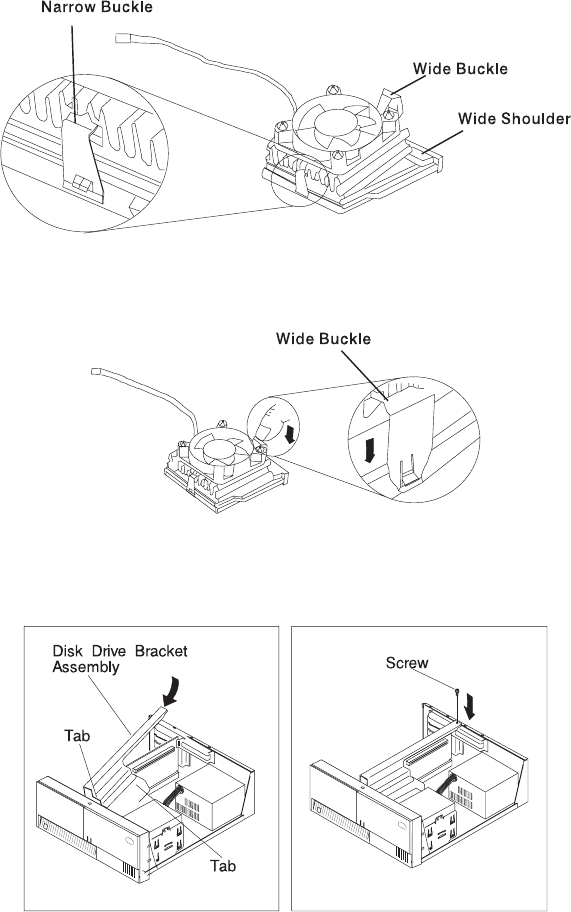

15. While tilting the fansink, hook the narrow buckle over the front of the processor
socket as shown.
16. Press down on the wide buckle, as shown, to lock the fansink in place. You hear
a "click" indicating that the buckle is in place.
17. Reconnect the fansink cable to the fansink cable connector on the system board.
18. Reinstall the disk drive bracket assembly.
19. Reinstall any adapters you may have removed.
Chapter 4. Installing and Removing Options 4-47
