FRU Exchange
Power Supply 1
Locati on: 01F
Front view
Rear view
J3
J1
J4
J2
TB 1
TB 3
TB 2
TB 4
T0
01H-A1J1
J5
J6
J7
J8
5V
5V
TB5
TB6

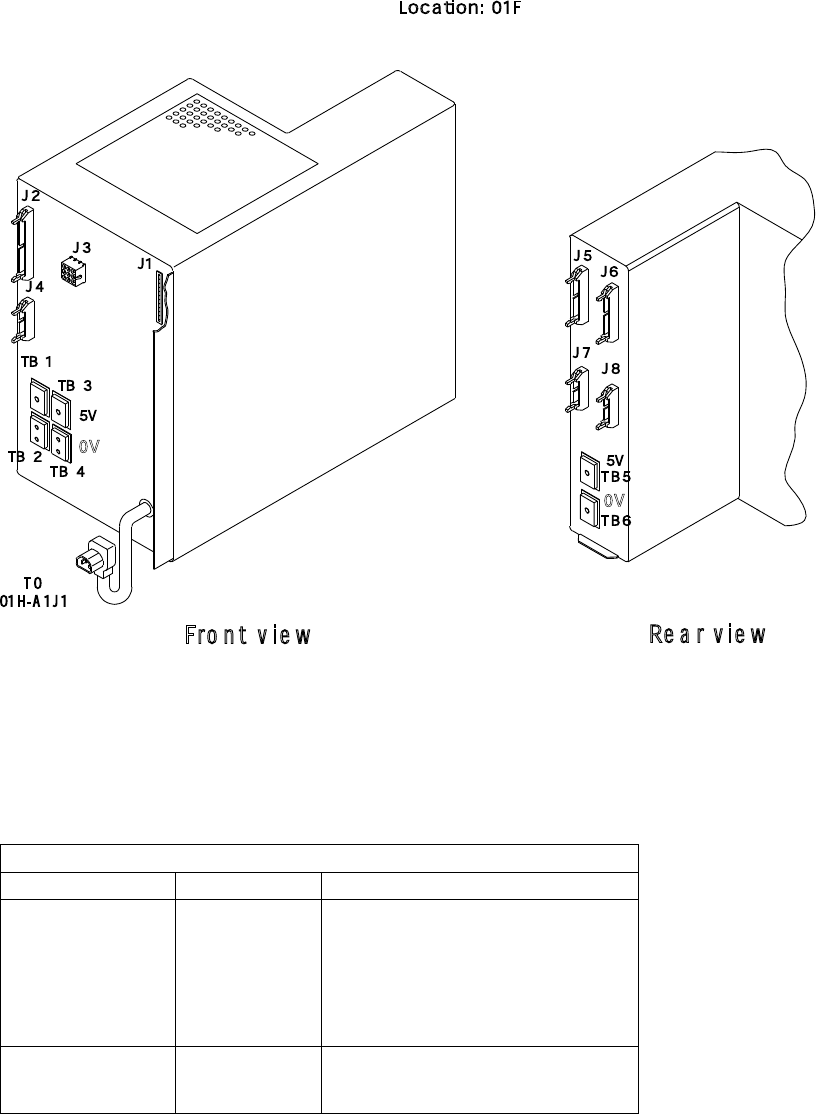

Figure 4-36. 3745 Power Supply 1 Components
3745 Power Supply Cross Reference
Table 4-9. 3745 Power Supply Cross Reference
Power Supply Location Area Supplied
PS1 01F Basic board
MOSS board
FDD and HDD
LIC board 01M-A1
LIC board 01M-A2
LIC board 01L-A1
LIC board 01L-A2
PS2 01H Fans
PCC
Panel
Chapter 4. 3745 FRU Exchange 4-31
