130
www.honeywell.com/sensing
PRESSURE SENSORS
25,0 (1.0)
25,0
(1.0)
PSI: 1/8-27 NPT, 15,9 (0.625) Hex
BAR: G 16,0 (0.25) Hex
76,0 (3.0) max.
38,0 (1.5) max.
max.
2
4
3
1
2
3
Ground
4
Excitation
Output

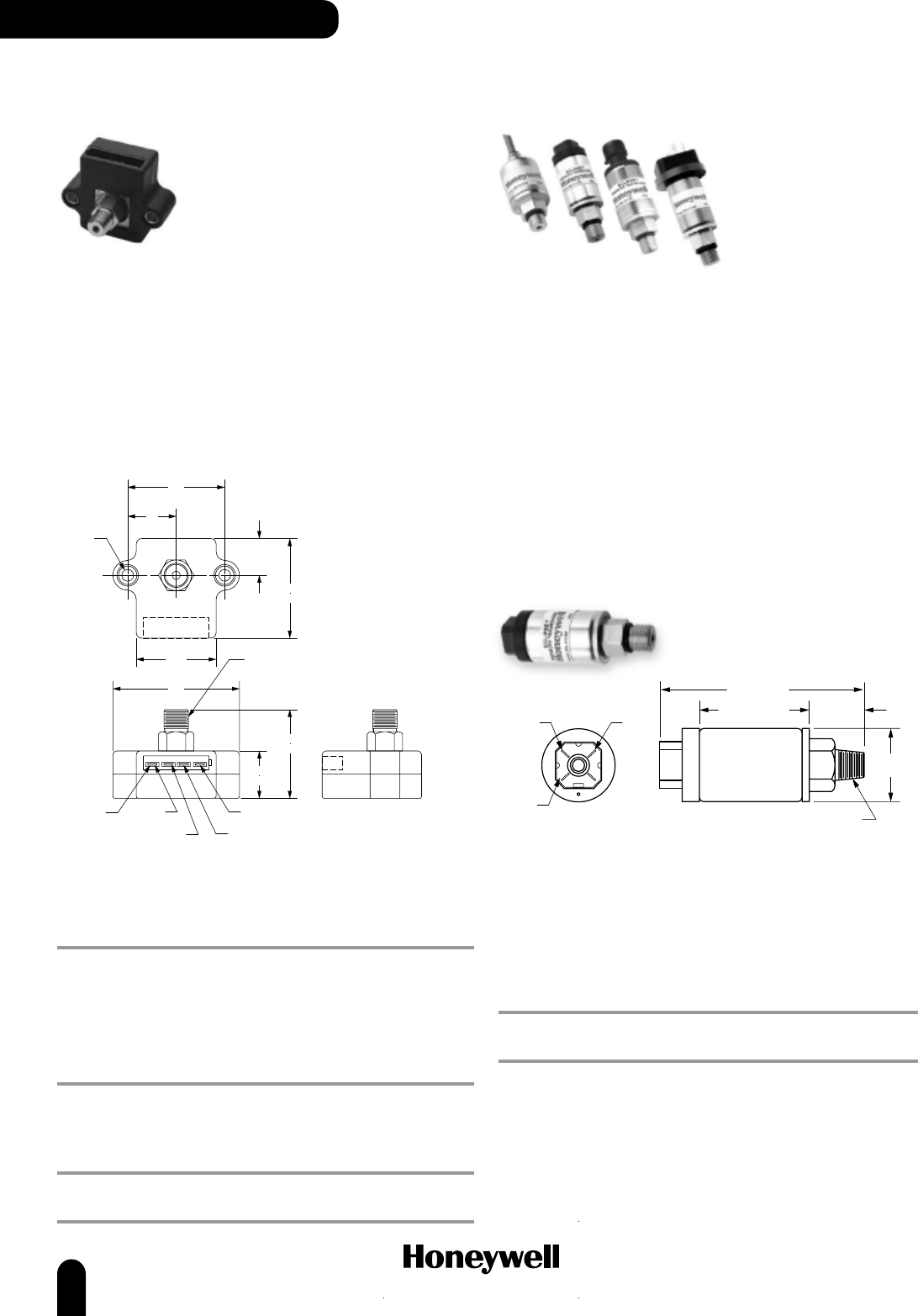

EA Series
The EA Series is designed for OEM users requiring high output and corrosion-
resistance. It has operated through millions of pressure cycles without
damage and is well suited for the cycling regimes found in automatic
equipment, robots, and hydraulic systems.
Approval: UL
Supply voltage: 85.0 Vdc
Signal conditioning: Amplified compensated
Compensated temperature range: 1 °C to 85 °C (30 °F to 185 °F)
Port style: 1/8 in - 27 NPT
Termination type: Quick disconnect
Measurement type: Gauge
20,32
38,10
54,61
34,29
41,91
15,75
41,91
20,83
5,11
(Ø.201)
2 PLCS
PINS
3,56 X 0,38
(.140 X .015)
1/4 OD STRAIGHT SS PORT (0-6 to 0-50 PSI)
1/8-27 NPT, 13,0
(0.5)
HEX (FOR EA/100 THROUGH 5000)
3/8-24 UNF, 14,0
(0.5625)
HEX (OPTIONAL ON 5000)
(2.15)
(1.375)
(0.75)
(1.50)
(1.65)
(0.625)
(0.82)
(1.65)
b
a
d
c
OPTIONS
Output 1 Vdc to 6 Vdc
-55 °C to 100 °C (-67 °F to 212 °F)
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Gauge 0 psig to 6 psig EA006PG1QD
Gauge 0 psig to 15 psig EA015PG1QD
Gauge 0 psig to 25 psig EA025PG1QD
Gauge 0 psig to 100 psig EA100PG1QD
Gauge 0 psig to 200 psig EA200PG1QD
Gauge 0 psig to 300 psig EA300PG1QD
Gauge 0 psig to 500 psig EA500PG1QD
Gauge 0 psig to 1,000 psig EA01KPG1QD
Gauge 0 psig to 5,000 psig EA05KPG1QD
Output 1 kHz to 6 kHz
-40 °C to 85 °C (-40 °F to 185 °F)
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Gauge 0 psig to 300 psig EA300PG1QF
Gauge 0 psig to 500 psig EA500PG1QF
Eclipse Series
The Eclipse (EC) Series pressure transducers are designed for OEMS who
require a reliable pressure transducer for industrial or heavy-duty applications.
The model EC features our proven all-wetted stainless steel design, rugged
packaging, internal signal amplification, and price which makes it an ideal
sensor for a variety of applications. The model EC offers a broad selection of
pressure ranges, output ranges, process connections, and electrical
termination to meet the demanding requirements of customers worldwide.
Approvals: UL, CE
Supply voltage: 5.0 Vdc
Signal conditioning: Amplified compensated
Operating temperature range: -40 °C to 105 °C (-40 °F to 221 °F)
Compensated temperature range: -40 °C to 105 °C (-40 °F to 221 °F)
OPTIONS
The Model Eclipse is available with a mini DIN style electrical connector. This
connection is a popular choice throughout the world and offers quick
disconnection, but can be rigidly attached with the center screw fastener. The
cable exit may be adjusted to any 90° direction.
Hirschmann - 0.5 Vdc to 4.5 Vdc Output
1/8 in - 27 NPT Connector
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Sealed Gauge 0 psis to 200 psis EC200PS1HC
Sealed Gauge 0 psis to 500 psis EC500PS1HC
