Chapter 6 Replacing Parts
86
system board assembly, the DIMM slots region of the system board is accessible when the bottom cover of
the LH 6000r is removed and the left cover of the LH 6000 is removed.
5. Remove the two screws securing the system board assembly to the chassis.
6. Unlatch the blue retaining latches to release the assembly.
CAUTION Wear a wrist-strap and use a static-dissipating work surface connected to the
chassis when handling components. Ensure the metal of the wrist strap contacts
your skin.
7. Pull the assembly out until it clears the chassis guides.
CAUTION The System Board Assembly is heavy. Support it at the bottom as it is removed from
the chassis.

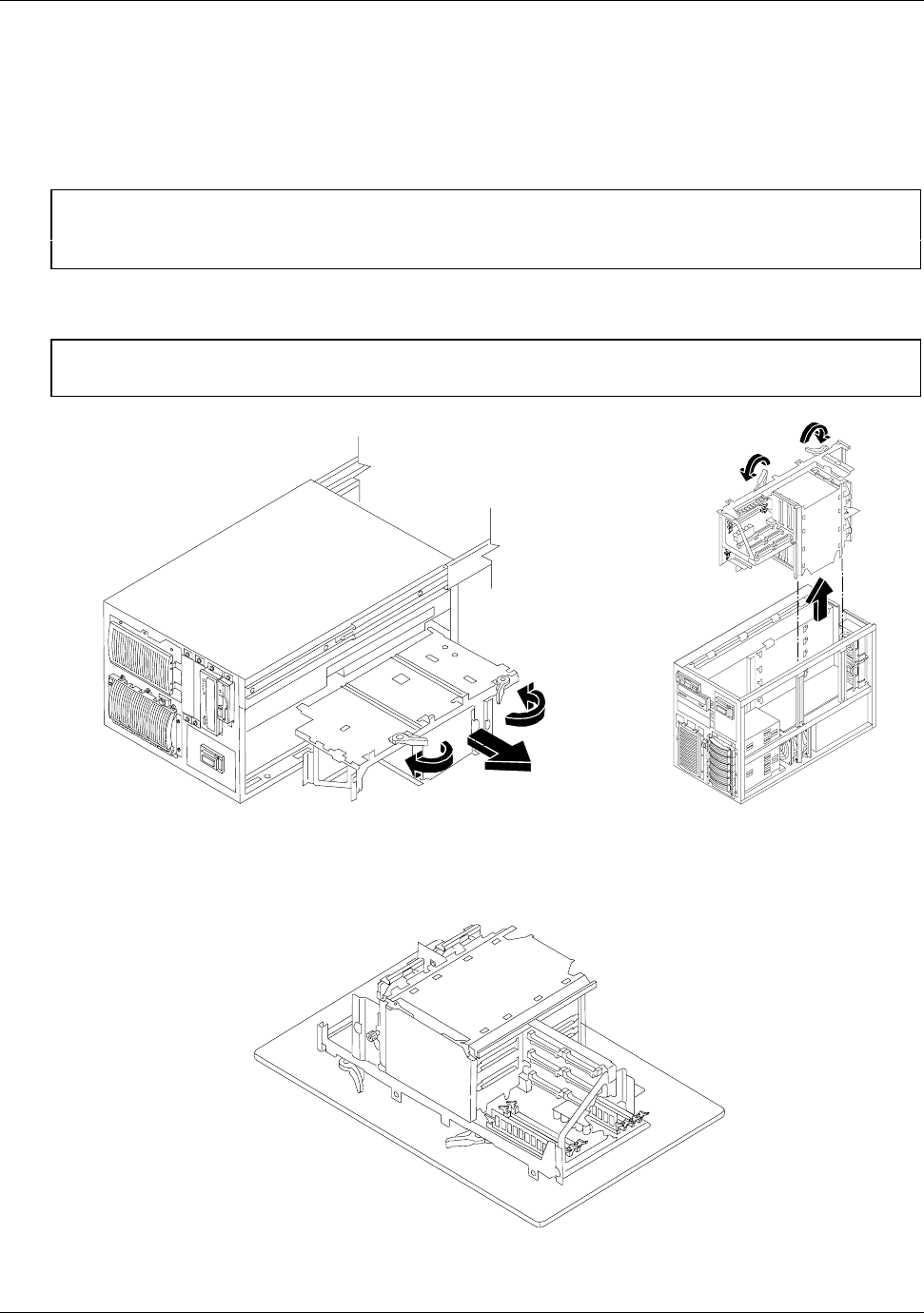

Removing the System Board Assembly
8. Slide the system board assembly from the chassis and place it metal plate side down on an
anti-static pad.
System Board Assembly on Grounded Anti-static pad
