Alternate Duplex Configuration
C11
C20
C20
C20
E
xterna
l
term
i
nator
built into cable
SCSI Device
Shelf
SCSI Device
Shelf
68 to 50 pin
Ada
p
ter
Internal
Terminator
SCSI A
SCSI D
SCSI B
SCSI C
Hot Swap
Subs
y
stem

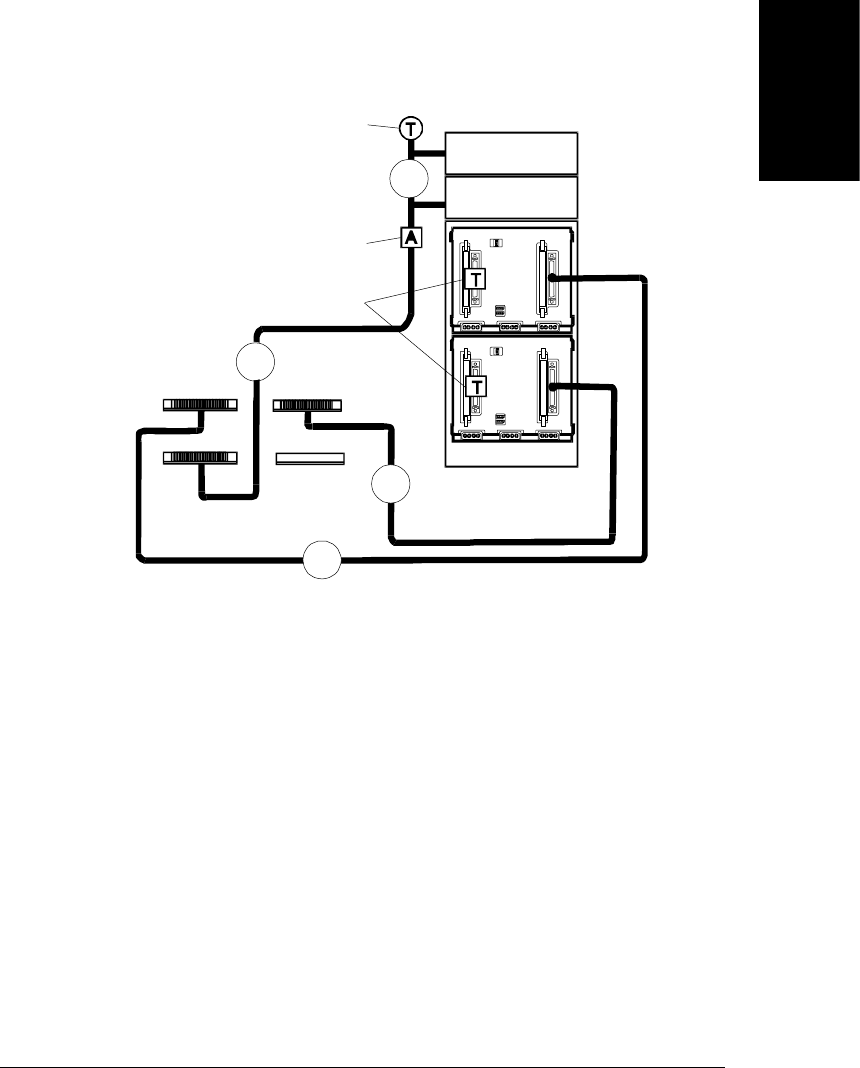

Figure 2-7. Alternate Duplex Configuration
The SCSI device shelves and each of the hot-swap cages are on separate SCSI
channels. This configuration requires that you obtain another C20 cable and
remove one of the knock-outs in the rear of the storage system to accommodate
the connector. The DAC card can be used with SCSI A and/or SCSI B. The
DAC card cannot be used with SCSI C.
To change the SCSI addresses, see the “Setting SCSI Addresses” section. This
configuration requires an additional internal cable. For internal cable part
numbers, see the “Cabling Diagram Legend.”
