Installing the SAN Switch 2/8
40 hp StorageWorks SAN Switch 2/8 Installation Guide
3. Install two M5 U-type Tinnerman clips for each of the front columns of the
rack in the top and bottom positions of the three-hole EIA pattern as shown in
Figure 9.

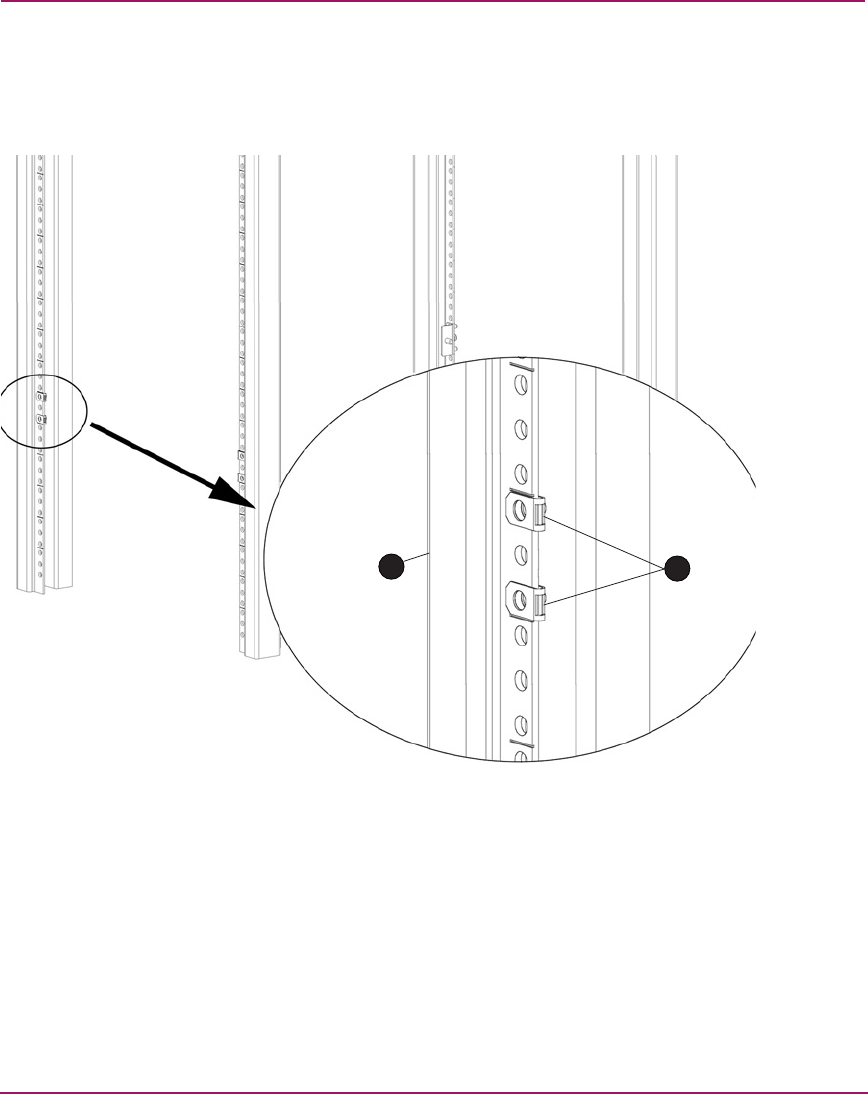

Figure 9: Installing the tinnerman clips
4. Assemble the outer rails by completing the following steps:
a. As an aid in assembly, two rubber washers have been included to help
keep the rear slotted portion of the outer rail flush against the rear rail-tray
brackets. Install them as shown in Figure 10.
1 M5 U-type tinnerman clips 2 Upright rack post
SHR-25
5
1
2
