29
G500 Cockpit Reference Guide
190-01102-03 Rev B
MAP GROUP
MAP GROUP: TRAFFIC PAGE
Press the 2) ALT MODE soft key to change what traffi c is displayed. Pressing the
BELOW, NORMAL, ABOVE or UNREST soft keys will determine what traffi c
is displayed. The selection is shown in the Altitude mode fi eld. The values
below defi ne what each altitude mode displays, relative to the altitude of the
aircraft.
Soft Key Description
BELOW Displays traffi c from -9700 to +2700 ft
NORMAL Displays traffi c from -2700 to +2700 ft
ABOVE Displays traffi c from -2700 to +9700 ft
UNREST All traffi c is displayed (unrestricted)
Press the 3) STANDBY soft key to place the system in the Standby mode.
NOTE: Some traffi c systems will not enter standby mode while
airborne.
Test Mode (On Ground)
While viewing the Traffi c Map Page of the Map Page Group, press the 1) MENU
button and select Test Mode from the menu.
Verify that a traffi c message is shown next to the altitude tape on the PFD 2)
and that the traffi c pop-up is displayed on the MFD.
After a few seconds, test mode is exited automatically by the traffi c system.

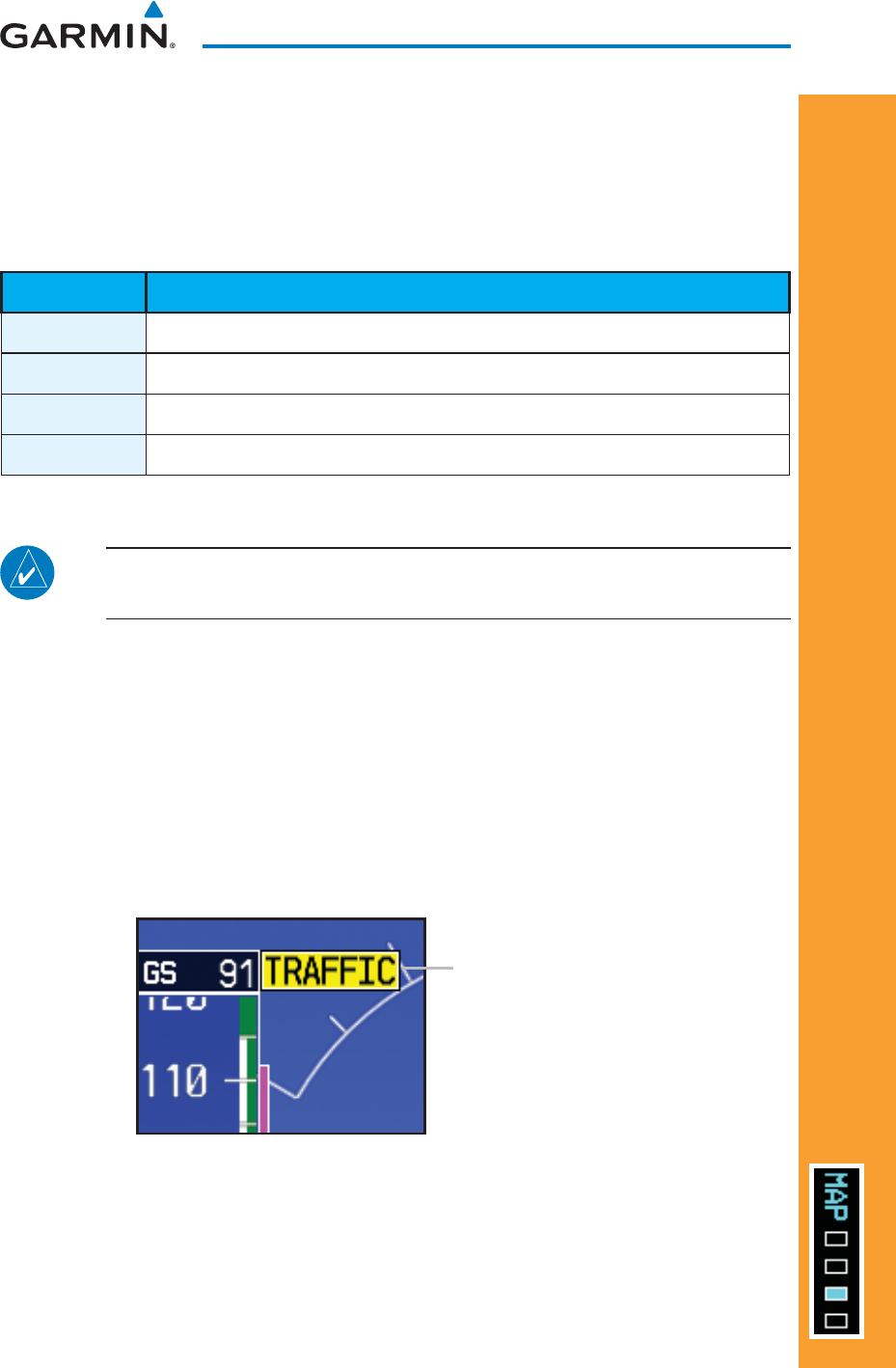

Traffi c Annunciation
Traffi c Annunciation on PFD
