Item Indicator, button, or
connector
Icon Description
13 Tape drive slot (optional) One optional 3.5-inch tape backup unit.
14 Quick Sync (optional)
Indicates a Quick Sync enabled system. The Quick
Sync feature is optional and requires a Quick Sync
bezel. This feature allows management of the
system using mobile devices. This feature
aggregates hardware or firmware inventory and
various system level diagnostic and error
information which can be used in troubleshooting
the system. For more information, see the
Integrated Dell Remote Access Controller User’s
Guide at Dell.com/idracmanuals.
LCD panel features
The LCD panel of your system provides system information and status and error messages to indicate if
the system is operating correctly or if the system needs attention. For more information on error
messages, see the Dell Event and Error Messages Reference Guide at Dell.com/
openmanagemanuals >OpenManage software.
• The LCD backlight lights blue during normal operating conditions and lights amber to indicate an
error condition.
• The LCD backlight is off when the system is in standby mode and can be turned on by pressing either
the Select, Left, or Right button on the LCD panel.
• The LCD backlight remains off if LCD messaging is turned off through the iDRAC utility, the LCD
panel, or other tools.

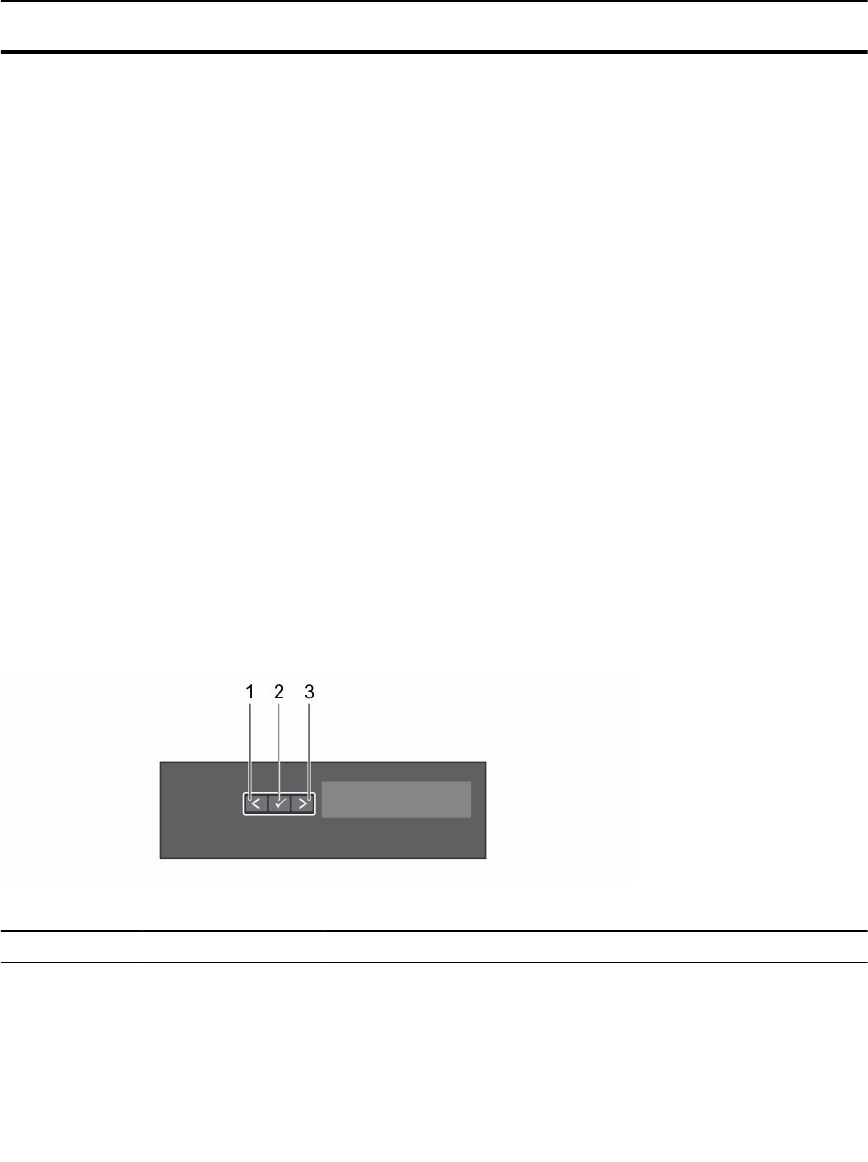

Figure 3. LCD panel features
Item Button Description
1 Left Moves the cursor back in one-step increments.
2 Select Selects the menu item highlighted by the cursor.
3 Right Moves the cursor forward in one-step increments.
During message scrolling:
• Press and hold the button to increase scrolling speed.
• Release the button to stop.
13
