10. SPECIFICATIONS
FM Tuner
Frequency Range……87.0 MHz to 108 MHz
Usable Sensitivity……11 dBf
50 dB Quieting Sensitivity……17 dBf
Alternate Channel Selectivity……75 dB
Stereo Separation (1 kHz)……35 dB
Frequency Response (±3 dB)
……30 Hz to 15 kHz
AM Tuner
Frequency Range……531 kHz to 1602 kHz
Usable Sensitivity……25 µV
Tape
Wow & Flutter (WRMS)……0.08%
Channel Separation (1 kHz)……45 dB
Signal to Noise Ratio
……70 µs (CrO2, FeCr, Metal): 58 dB
Frequency Response (±3 dB)
120 µs (normal)……30 Hz to 18 kHz
70 µs (CrO2, FeCr, Metal)……30 Hz to 20 kHz
Audio
Maximum Power Output……200 W (50 W × 4ch)
Continuous Average Power Output
…… 17 W × 4, into 4 Ω, 20 Hz to 20 kHz, 1%
THD
Bass Control Action (30 Hz)……±13 dB
Treble Control Action (10 kHz)……±10 dB
Line Output……1.8 V (with CD A/C 1kHz 10 kΩ)
General
Power Supply Voltage
……14.4 V DC (10.8 V to 15.6 V allowable)
Current Consumption…… Less than 15 A
Speaker Impedance
……4 Ω (4 Ω to 8 Ω allowable)
Weight……3.3 lb. (1.5 kg)

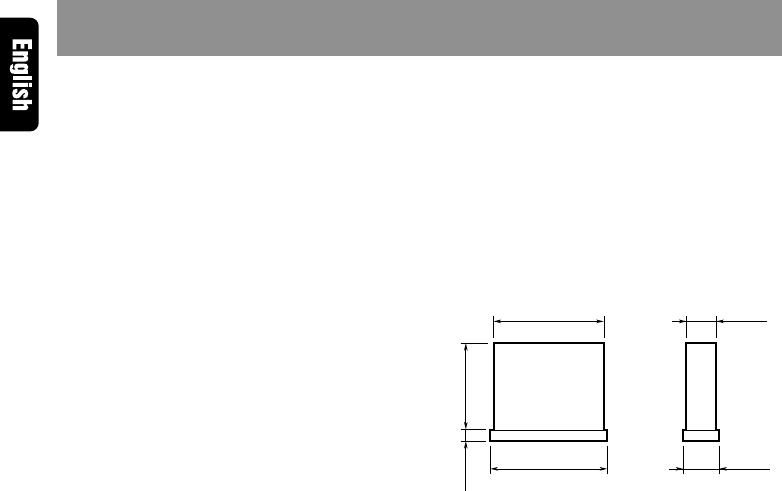

Dimensions
…… 7" (178 mm) Width × 2" (50 mm) Height
× 6-3/32" (155 mm) Depth
2"
(50 mm)
2-1/4"
(58 mm)
7"
(178 mm)
7-3/8"
(188 mm)
6-3/32"
(155 mm)
3/4"
(19 mm)
Notes:
• Specifications comply with EIA Standards.
• Specifications and design are subject to change
without notice for further improvement.
