FM Tuner
Frequency Range……87.9 MHz to 107.9 MHz
Usable Sensitivity……11 dBf
50 dB Quieting Sensitivity……17 dBf
Alternate Channel Selectivity……75 dB
Stereo Separation (1 kHz)……35 dB
Frequency Response (±3 dB)
……30 Hz to 15 kHz
AM Tuner
Frequency Range……530 kHz to 1,710 kHz
Usable Sensitivity……25
µ
V
Tape
Wow & Flutter (WRMS)……0.08%
Channel Separation (1 kHz)……45 dB
Signal to Noise Ratio
……70
µ
s (CrO
2
, FeCr, Metal):
58 dB
Frequency Response (±3 dB)
120
µ
s (normal)……30 Hz to 18 kHz
70
µ
s (CrO
2
, FeCr, Metal)……30 Hz to 20 kHz
Power Amplifier
Maximum Power Output……180 W (45 W × 4ch)
Continuous Average Power Output
……17 W × 4, into 4 Ω, 20 Hz to 20 kHz,
1% THD
Pre-Amplifier
Bass Control Action (30 Hz)……±13 dB
Treble Control Action (10 kHz)……±10 dB
Line Output (with A/C 1 kHz, 10 kΩ)……1.8 V
General
Power Supply Voltage
……14.4 V DC (10.8 V to 15.6 V allowable)
Current Consumption…… Less than 15 A
Speaker Impedance
……4 Ω (4 Ω to 8 Ω allowable)
Weight……3.52 lb. (1.6 kg)

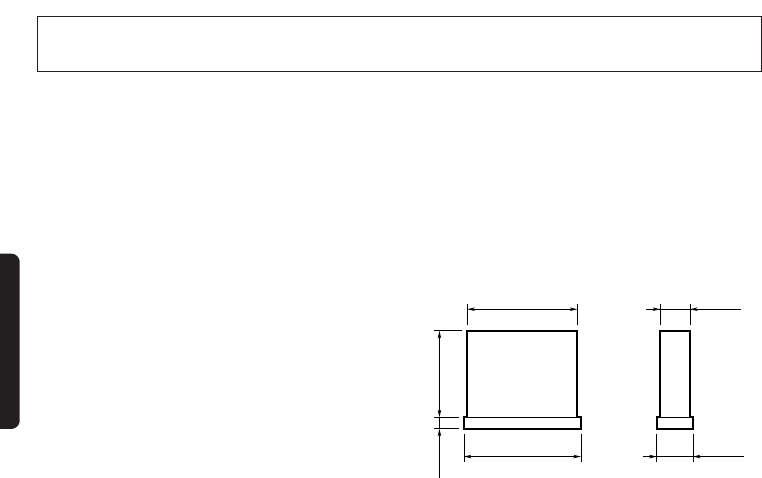

Dimensions
……7
"
(178 mm) Width × 2
"
(50 mm) Height
× 6-3/32
"
(155 mm) Depth
Notes:
•
Specifications comply with EIA Standards.
•
Specifications and design are subject to change with-
out notice for further improvement.
