Chapter 1 Overview
Conventions and Terminology
Step 2 Install and connect the PDUs for the display and first row table assembly. See Step 1 through Step 3 in
Chapter 9, “Routing Power and Signal Cables” to install the PDUs and Step 4 in Chapter 9, “Routing
Power and Signal Cables” to connect the cables.
Step 3 Connect the projector to the projector mounting bracket and connect the projector and bracket to the
table assembly. See Step 2 and Step 3 in Chapter 8, “Assembling the Remaining Cisco TelePresence
Elements” to connect the projector to the table assembly and Step 4 in Chapter 9, “Routing Power and
Signal Cables” to connect the cables.
Step 4 Place the Cisco Unified IP Phone on the first row table and connect the phone cable. See Step 4 in
Chapter 9, “Routing Power and Signal Cables” to connect the cable.
Step 5 Install the privacy panels for the first row table. See Step 15 through Step 18 in Chapter 6, “Building the
First Row Table Assembly.”
Step 6 Install the speaker boards and speakers. See Step 8 through Step 10 in Chapter 8, “Assembling the
Remaining Cisco TelePresence Elements.”
Step 7 Install the projector screen. Refer to the projector screen installation guide that is packaged with the
assembly.
Step 8 Connect the power cables for the codecs, lighting and table leg power connections by completing Step 4
in Chapter 9, “Routing Power and Signal Cables.”
Step 9 Connect the signal cables for the first row table by completing Step 5 in Chapter 9, “Routing Power and
Signal Cables.”
Step 10 Assemble the camera targets by completing Step 15 in Chapter 8, “Assembling the Remaining
Cisco TelePresence Elements.”
Step 11 Perform first-time setup using the instructions in Chapter 10, “First-Time Setup.”
Conventions and Terminology
• The directions left and right in this guide are synonymous with participant’s left and participant’s
right. They refer to the assembly as you face the Plasma displays.
• Cable connections to the Codecs are labeled with a color-coded symbol system.
–
A single dot on a green background indicates a center element.
–
Two dots on a white background indicate a left element.
–
Three dots on a red background indicate a right element.

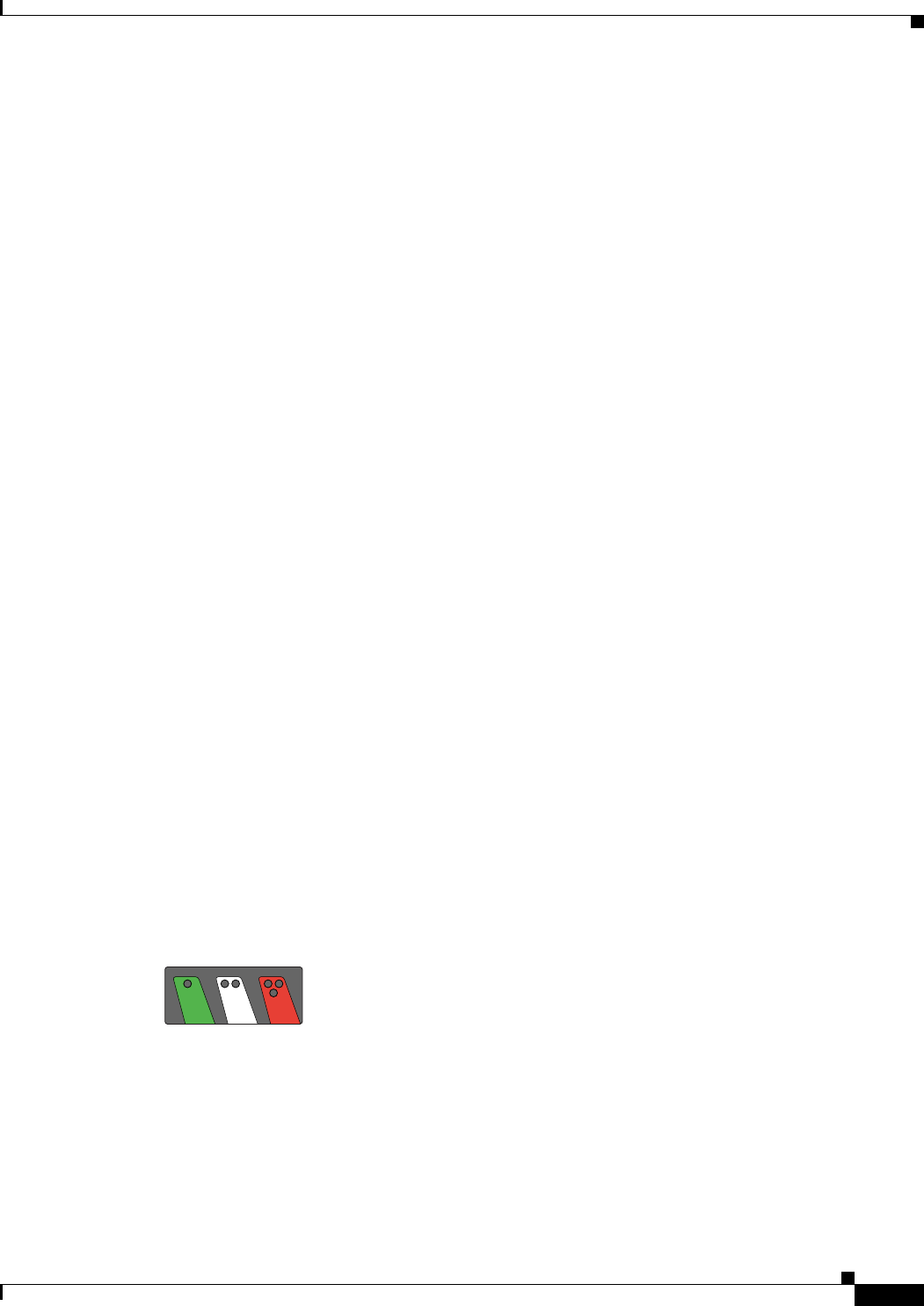

Figure 1-2 Cable Connection Labeling System
Tools and Equipment List
To assemble the Cisco TelePresence System 3200, you need the following tools and equipment:
Uncrating and Unpacking:
• Claw hammer or small pry bar
