Hooking Up the Components
Note on video component hookups
You can connect your TV’s audio output jacks to the TV/
SAT AUDIO IN jacks on the receiver and apply sound
effects to the audio from the TV. In this case, do not
connect the TV’s video output jack to the TV/SAT VIDEO
IN jack on the receiver. If you are connecting a separate
TV tuner (or satellite tuner), connect both the audio and
video output jacks to the receiver as shown above.
z
When using the S-video jacks instead of the video jacks
(STR-DE545 and STR-SE501 only)
Your monitor must also be connected via an S-video jack. S-video
signals are on a separate bus from the video signals and will not
be output through the video jacks.
Jacks for connecting video components
Connect a To the
TV or Satellite tuner TV/SAT jacks
VCR VIDEO jacks
DVD or LD player DVD/LD jacks
TV monitor MONITOR VIDEO OUT jack
Required cords
Audio/video cords (not supplied)
When connecting a cord, be sure to match the color-coded pins to
the appropriate jacks on the components.
Video cord for connecting a TV monitor (not supplied)

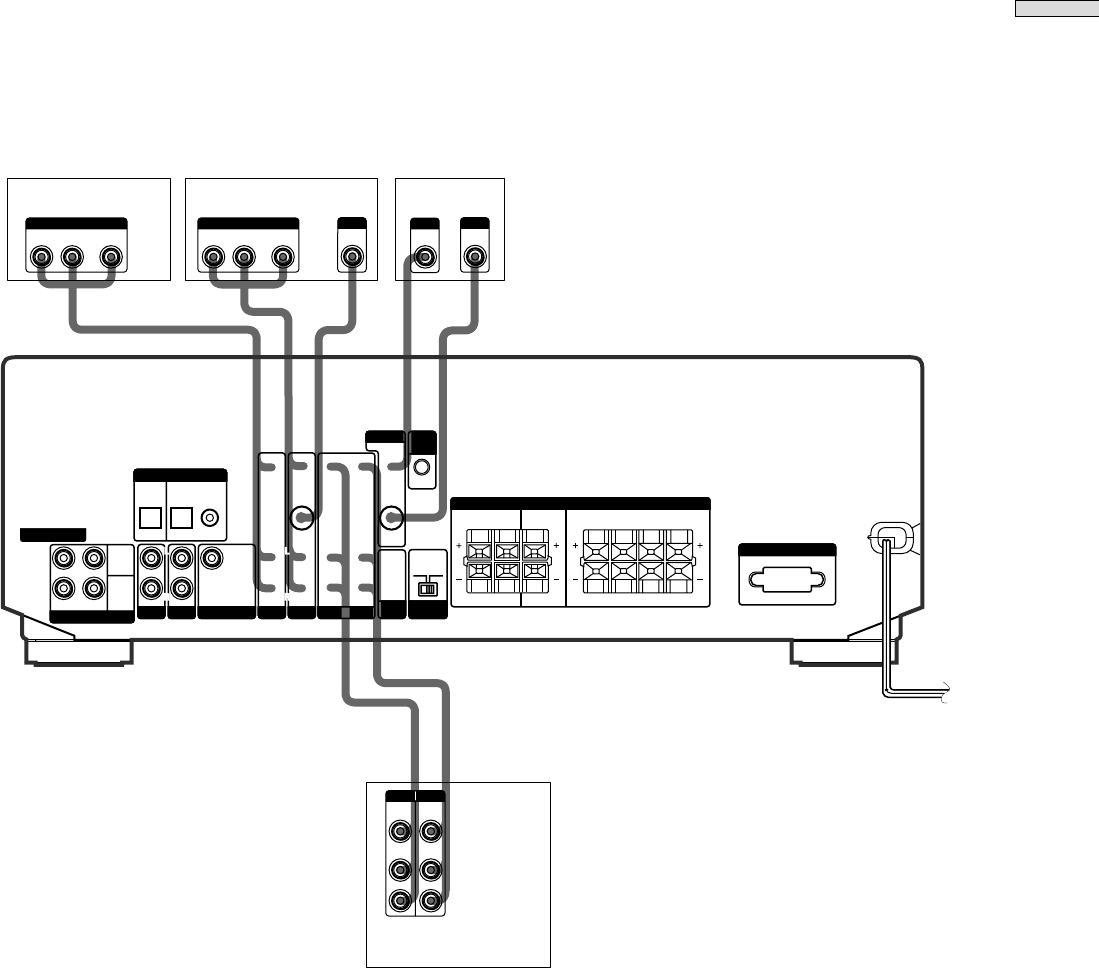

Video Component Hookups
TV or Satellite tuner
DVD or LD player
Yellow Yellow
Yellow (video) Yellow (video)
White (L/audio) White (L/audio)
Red (R/audio) Red (R/audio)
VCR
IN OUT
VIDEO
OUT
R
VIDEO
IN
AUDIO
OUT
AUDIO
IN
INPUT OUTPUT
L
VIDEO
IN
INPUT
OUT
S-VIDEO
IN
S-VIDEO
RL
AUDIO OUT VIDEO
OUT
OUTPUT
RL
AUDIO OUT VIDEO
OUT
OUTPUT
ç
ç
MD/TAPE
ANTENNA
DIGITAL IN
TV/SAT
5.1 CH INPUT
AUX CD
DVD/LD
VIDEO
SUB
WOOFER
IMPEDANCE
SELECTOR
SPEAKERS
CTRL
A1 I I
MONITOR
AC OUTLET
FRONT REAR
SUB
WOOFER
AUDIO IN AUDIO IN
TV/SAT
OPTICAL OPTICAL COAXIAL
DVD/LD
REC OUT IN AUDIO IN
VIDEO IN
AUDIO IN
VIDEO IN
AUDIO OUT AUDIO IN
VIDEO OUT VIDEO IN VIDEO OUT
S-VIDEO
OUT
S-VIDEO
IN
AUDIO
OUT
4 8 CENTER
L
R
L
R
L
R
L
R
L
R
FRONT
REAR
RL
RL
RLRL
RLRL
CENTER B FRONT A
FM
75
COAXIAL
AM
TV monitor
