Rockford Fosgate 700S Stereo Amplifier User Manual



11
INSTALLA
TION

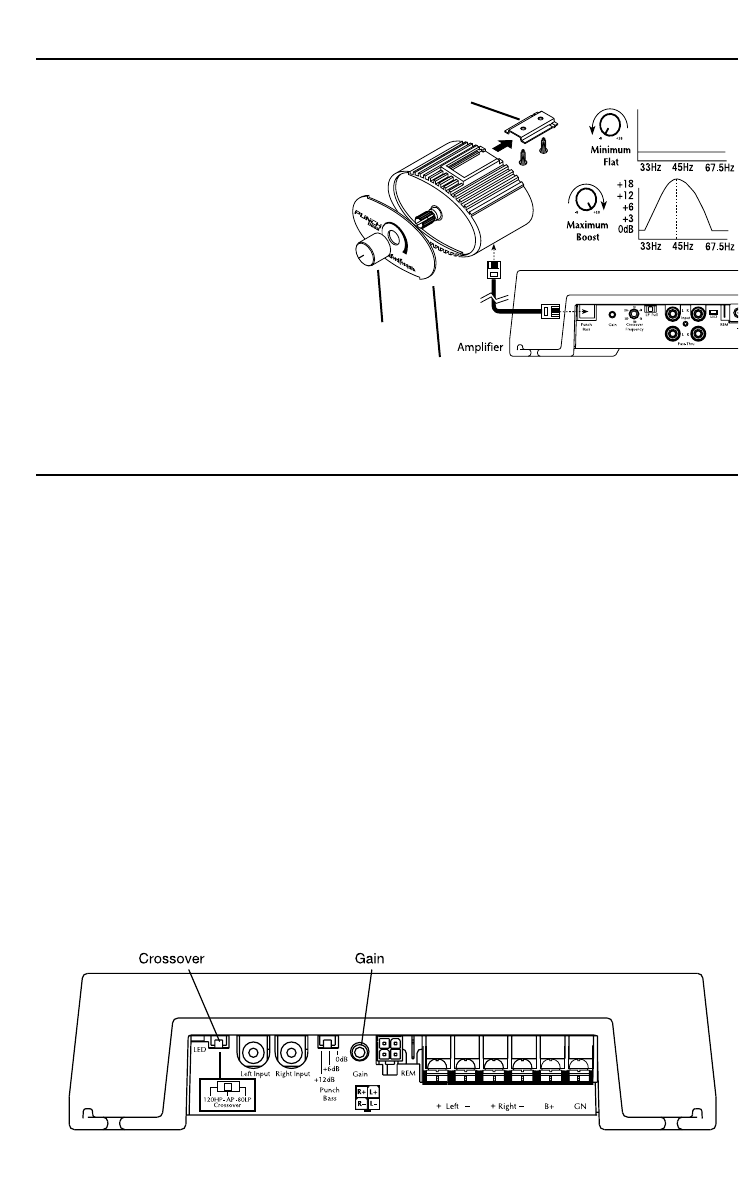

REMOTE PUNCH BASS (Models
300S, 400S, 500S & 700S Only)
Mounting and installation
1. Find a location, either under the dash or
near the center console, that gives easy
access to the remote.
2. Using the screws supplied, install the
mounting clip with the tabs towards t
he back.
3. Route the cable for the remote and
connect to both the remote and
amplifed subwoofer.
4. Slip the remote onto the mounting clip
until it snaps into place.
5. Install the decal and knob onto the
remote.
Mounting
Clip
Knob
Decal
OPERATION
ADJUSTING GAIN
Do the following individually for each channel, or both equally if bridged (mono).
NOTE: Models 150S and 200S have a single gain adjustment.
To adjust the gain setting, turn the amplifier gains all the way down. Turn the source unit volume up
until distortion is audible and then turn it down a bit until the distortion is inaudible. This will be
about two thirds all the way up on most source units. Next, turn the amplifier gain setting until once
again distortion is audible and then back it down until the distortion is inaudible. Rockford Fosgate
source units do not distort, so the volume can be used at maximum setting.
NOTE: For a more in depth setting procedure, contact Rockford Technical Support.
ADJUSTING CROSSOVER FREQUENCY
Model 200S
Placing the switch in the HP position sets the amplifier to the 120Hz High Pass mode, allowing only
frequencies above the cut-off point to pass.
Placing the switch in the AP position sets the amplifier to the All Pass mode, allowing all
frequencies to pass.
Placing the switch in the LP position sets the amplifier to the 80Hz Low Pass mode, allowing only
frequencies below the cut-off point to pass.
