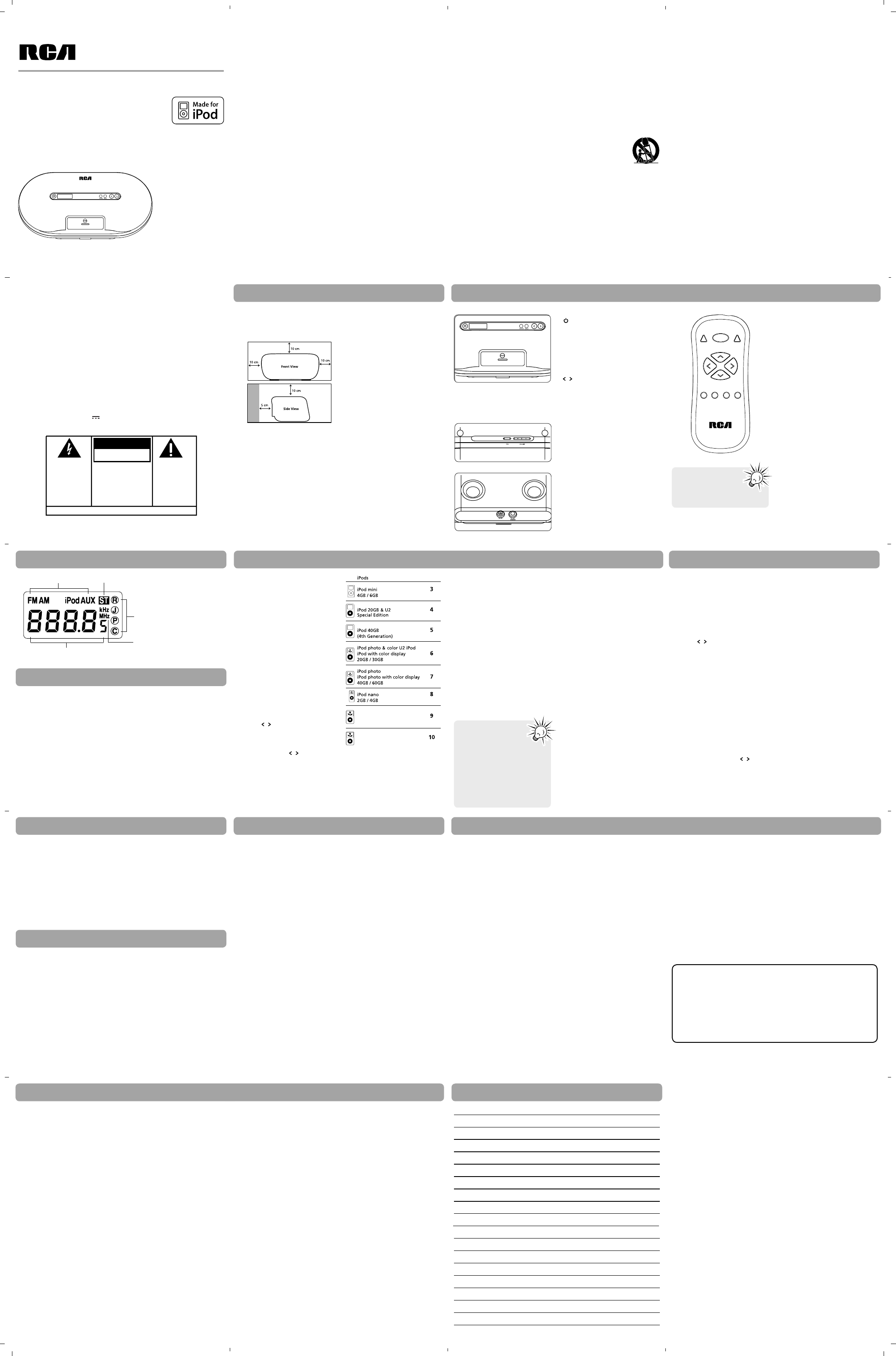

user manual
manual de usuario
EN/E
It is important to read this instruction prior to using your new product for the fi rst time.
Es importante leer este manual antes de usar por vez primera su equipo.
Ri500
v1.1 (EN/E)
FCC information
This device complies with Part
15 of the FCC Rules. Operation
is subject to the following two
conditions: (1) This device may not
cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation.
This equipment has been tested
and found to comply with the
limits for a Class B digital device,
pursuant to Part 15 of FCC Rules.
These limits are designed to
provide reasonable protection
against harmful interference in
a residential installation. This
equipment generates, uses, and
can radiate radio frequency energy
and, if not installed and used in
accordance with the instructions,
may cause harmful interference to
radio communications.
However, there is no guarantee
that interference will not occur
in a particular installation. If
this equipment does cause
harmful interference to radio or
television reception, which can
be determined by turning the
equipment off and on, the user is
For your records
In the event that service should be
required, you may need the model
number and the serial number. In
the space below, record the date
and place of purchase and the
serial number:
Model No.:
Date of Purchase:
Place of Purchase:
Serial No.:
encouraged to try to correct the
interference by one or more of the
following measures
• Reorient or relocate the
receiving antenna.
• Increase the separation
between the equipment and
receiver.
• Connect the equipment into
an outlet on a circuit different
from that to which the
receiver is connected.
• Consult the dealer or
an experienced radio/TV
technician for help.
Changes or modifi cations not
expressly approved by the party
responsible for compliance could
void the user’s authority to
operate the equipment.
Technical Information
Product: Speaker/Radio for use
with iPod
Brand: RCA
Model: Ri500
Unit size: 300x167.3x160mm
Weight: 1.43KG
Electrical Consumption
External AC adaptor: 12V 1.5A
Service information
This product should be serviced
only by those specially trained in
appropriate servicing techniques.
For instructions on how to obtain
service, refer to the warranty
included in this user manual.
The descriptions and characteristics in
this owner’s manual are for the purpose
of general reference only and not as a
guarantee. In order to provide you with
the highest quality product, we may
make changes or modifi cations without
prior notice. The English version serves
as the fi nal reference on all product
and operational details should any
discrepancies arise in other languages.
PLEASE READ AND SAVE THIS FOR FUTURE REFERENCE
IMPORTANT SAFETY INSTRUCTIONS
Before you begin
General controls
iPod
Radio
Auxiliary input
Limited Warranty
Limited Warranty
WARNING:
TO PREVENT FIRE OR ELECTRICAL SHOCK HAZARD,
DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
Precautions
• Minimum distances around
the apparatus for suffi cient
ventilation.
• The ventilation should not
be impeded by covering the
ventilation opening with
items, such as newspaper,
table-cloths, curtains, etc.
• The rating plate is located
at the bottom cabinet of
apparatus.
Box contents
• one main unit
• one remote control
• eight iPod adapters
• one AC/DC power adapter
• one user manual
Plugging in for power
Insert the connector of the AC/DC
adpater to the power jack at the
back of the unit. Connect the
power plug of the adapter to a
suitable power outlet.
External AC/DC adapter input
Power supply: 100-240VAC 0.7A
50/60Hz
Note:
Power is fed to the unit even
when it is not functioning. To cut
the power supply off, the power
cable must be unplugged.
Troubleshooting tips
System doesn’t turn on
• Unplug the unit for a
moment, and then plug it
back in.
• Check the outlet by plugging
in another device.
No sound
• Adjust volume setting.
• Make sure you’ve selected the
correct function.
Poor radio reception
• Try turning off electrical
appliances near the unit,
such as hair dryers, vacuum
cleaners, or fl uorescent lights.
iPod does not start play
• Make sure the iPod is properly
connected to the universal
dock for iPod.
ESD Remark:
In case of misfunction due to
electrostatic discharge just reset
the product (disconnect and
reconnect of the power source
may be required) to resume
normal operation.
Cleaning the exterior
• Disconnect the system from
AC power before cleaning the
exterior of the unit with a
soft dust cloth.
• Clean the exterior with a
soft clean cloth or slightly
moistened chamois leather.
DO NOT use solvents as it may
cause damage to the unit.
More information
iPod is a trademark of Apple
Computer, Inc., registered in the
U.S. and other countries.
Front view
– To switch on or off the unit.
SOURCE – To select among AM
radio, FM radio, iPod and AUX
modes.
MODE – To recall preset radio
stations in radio mode. To select
the repeat and shuffl e mode
during iPod playback.
– To select radio frequencies
(radio mode) or fi les on the
iPod. Press and hold during iPod
playback to search forward or
backward quickly.
PUSH – Universal dock for iPod®.
Push to close or open.
Top view
EQ – To select an equalizer sound
mode.
VOLUME +/– – To adjust the
volume level.
Back view
AUX IN – To connect with external
device with an audio cable (not
provided).
DC 12V – To connect with the
AC/DC power adapter for power
supply.
Remote control
AM/FM – To turn on the unit
from power off and select the
radio band. To select the radio
from other modes.
ON/OFF – To switch on or off the
unit.
iPod/AUX – To turn on the unit
from power off. To select iPod or
AUX mode from other modes.
VOL+/VOL– – To adjust the volume
level.
SKIP–/MEM– or SKIP+/MEM+ –
To select radio frequencies (radio
mode) or fi les on the iPod. Press
and hold during iPod playback
to search forward or backward
quickly.
PROG/SHUFFLE – To store radio
stations as presets. To select
the shuffl e mode during iPod
playback.
RECALL/REPEAT – To recall preset
radio stations in radio mode. To
select the repeat mode during
iPod playback.
MUTE – To mute or restore sound
output.
EQ – To select an equalizer sound
mode.
Basic playback
1. Push the universal dock for
iPod at the front of the unit
to open it.
2. Eight adapters are supplied.
Check the table on the right
and use the appropriate
adapter for your iPod.
3. Place the adapter and then
your iPod on the universal
dock for iPod.
4. Press SOURCE or iPod/AUX to
select the iPod mode.
• Playback from the iPod starts
automatically.
• The blue indicator on the
dock lights in iPod mode with
your iPod connected.
• Blue indicator blinks if there is
no iPod connected.
5. Press on the main unit or
SKIP–/MEM– or SKIP+/MEM+
on the remote control to skip
to the previous or next fi le.
Press and hold , SKIP–
/MEM– or SKIP+/MEM+ to
search backward or forward
quickly during playback.
6. Other playback controls such
as pause and menu navigation
should be operated on the
iPod.
Made for:
• iPod with video (30GB, 60GB,
80GB) 5th generation
• iPod photo (20GB U2 Special
Edition, 30GB U2 Special
Edition, 40GB, 60GB) 4th
generation
• iPod (20GB, 20GB U2
Special Edition, 40GB) 4th
generation
• iPod nano (2GB, 4GB) 1st
generation
• iPod mini (4GB, 6GB) 1st &
2nd generations
• iPod touch (8GB, 16GB)
• iPod classic (80GB, 160GB)
For the latest iPod models, please
use the adapter provided with
your iPod.
You may charge the
battery of your iPod
through the universal
dock for iPod while the unit
is turned off (standby mode)
or in the iPod mode. The blue
indicator on the dock lights
in iPod or standby mode with
your iPod connected. Charging
control should be operated on
the iPod.
Press SOURCE or AM/FM to select
the radio mode.
Selecting radio band
Press SOURCE or AM/FM to select
a radio band.
Tuning frequencies
• Press on the main unit or
SKIP–/MEM– / SKIP+/MEM+
on the remote control to
select frequencies.
• Press and hold either button
briefl y and then release to
start automatic search for the
next available station.
Storing frequencies
1. Tune to a radio station (refer
to the above instructions).
2. Press and hold PROG/SHUFFLE
on the remote control.
• “P01” blinks on the display.
3. Select a desired preset
location by pressing on
the main unit or SKIP–/MEM–
or SKIP+/MEM+ on the
remote control.
• There are 20 preset locations
for FM and 20 preset locations
for AM on this unit.
4. Press PROG/SHUFFLE on the
remote control to store the
radio station at the selected
preset location.
Recalling preset stations
Press MODE on the main unit or
RECALL/REPEAT on the remote
control to select a desired preset
station.
1. Connect the auxiliary device
to the AUX IN jack with an
audio cable (not provided).
2. Press SOURCE or iPod/AUX to
select the AUX mode.
3. Start playback from the
auxiliary device.
4. Adjust the auxiliary device to
mid-range volume and adjust
the the master volume by
pressing VOLUME+/– on the
Sound controls
Volume control
Press VOLUME+/– on the main
unit or the remote control for
the volume control. The selected
volume level will show briefl y on
the display.
EQ
Press EQ on either the main unit
or the remote control to select
among rock, jazz, pop, classic and
EQ off modes. The selected EQ
mode will show on the display.
Muting
1. Press MUTE on the remote
control to mute sound output.
• The display fl ashes while the
sound output is muted.
2. Press MUTE or VOLUME+/– to
restore the sound output.
Display
Function modes
Stereo sound (radio)
EQ modes
Radio frequency units
Radio frequencies or volume level
Note
Insert 2 AAA
batteries (batteries
not included) in the
remote control before use.
ROCK-
JAZZ-
POP-
CLASS.
Repeat playback
During playback, press MODE on
the main unit or RECALL/REPEAT
on the remote control to select a
repeat playback mode (repeat 1 or
repeat all).
To cancel repeat playback, repeat
the step above until no repeat
mode is selected.
Shuffl e playback
During playback, press and hold
MODE on the main unit or press
PROG/SHUFFLE on the remote
control to select the shuffl e
playback mode.
To cancel shuffl e playback, repeat
the step above until no shuffl e
mode is selected.
Disconnecting the iPod
1. Remove the iPod from the
universal dock and close the
dock.
2. Press SOURCE, AM/FM or
iPod/AUX to select another
function, or press ON/OFF to
turn off the unit.
Back view
Top view
Front view
the provided plug does not
fi t into your outlet, consult an
electrician for replacement of
the obsolete outlet.
• Protect the power cord
from being walked on or
pinched particularly at plugs,
convenience receptacles, and
the point where they exit
from the apparatus.
• Only use attachments/
accessories specifi ed by the
manufacturer.
• Use only with the
cart, stand, tripod,
bracket, or table
specifi ed by the
manufacturer, or sold with
the apparatus. When a cart
is used, use caution when
moving the cart/apparatus
combination to avoid injury
from tip-over.
• Unplug this apparatus during
lightning storms or when
unused for long periods of
time.
• Refer all servicing to qualifi ed
service personnel. Servicing is
required when the apparatus
has been damaged in any way,
such as power-supply cord or
Some of the following information
may not apply to your particular
product; however, as with any
electronic product, precautions
should be observed during
handling and use.
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus
near water.
• Clean only with dry cloth.
• Do not block any ventilation
openings. Install in accordance
with the manufacturer’s
instructions.
• Do not install near any heat
sources such as radiators,
heat registers, stoves, or
other apparatus (including
amplifi ers) that produce heat.
• Do not defeat the safety
purpose of the polarized
or grounding-type plug. A
polarized plug has two blades
with one wider than the
other. A grounding type plug
has two blades and a third
grounding prong. The wide
blade or the third prong is
provided for your safety. If
plug is damaged, liquid has
been spilled or objects have
fallen into the apparatus, the
apparatus has been exposed
to rain or moisture, does not
operate normally, or has been
dropped.
• ADDITIONAL SAFETY
INFORMATION
• Apparatus shall not be
exposed to dripping or
splashing and no objects
fi lled with liquids, such as
vases, shall be placed on the
apparatus.
• Always leave suffi cient space
around the product for
ventilation. Do not place
product in or on a bed, rug,
in a bookcase or cabinet that
may prevent air fl ow through
vent openings.
• Do not place lighted candles,
cigarettes, cigars, etc. on the
product.
• Connect power cord only to
AC power source as marked
on the product.
• Care should be taken so that
objects do not fall into the
product.
• Do not attempt to disassemble
the cabinet. This product
does not contain customer
serviceable components.
• The AC main power adaptor
is considered as the main
disconnect device.
• IF YOUR PRODUCT
OPERATES ON BATTERIES,
adhere to the following
precautions:
A. Any battery may leak
electrolyte if mixed with
a different battery type, if
inserted incorrectly, or if all
batteries are not replaced at
the same time.
B. Any battery may leak
electrolyte or explode if
disposed of in fi re or an
attempt is made to charge a
battery not intended to be
recharged.
C. Discard leaky batteries
immediately. Leaking batteries
can cause skin burns or
other personal injury. When
discarding batteries, be sure
to dispose of them in the
proper manner, according to
your state/provincial and local
regulations.
The AC/DC Adaptor supplied
with this product is intended
to be correctly orientated in a
vertical or fl oor mount position.
Important Battery
Precautions
• Any battery may present a risk
of fi re, explosion, or chemical
burn if abused. Do not try to
charge a battery that is not
intended to be recharged, do
not incinerate, and do not
puncture.
• Non-rechargeable batteries,
such as alkaline batteries, may
leak if left in your product for
a long period of time. Remove
the batteries from the product
if you are not going to use it
for a month or more.
main unit or VOL+/– on the
remote control.
• Do not turn the volume of
the auxiliary device too high
as this may affect the sound
quality.
• For other playback operations,
control them on your auxiliary
device.
More information
• If your product uses more
than one battery, do not mix
types and make sure they
are inserted correctly. Mixing
types or inserting incorrectly
may cause them to leak.
• Discard any leaky or deformed
battery immediately. They
may cause skin burns or other
personal injury.
• Please help to protect the
environment by recycling
or disposing of batteries
according to federal, state,
and local regulations.
SEE MARKING ON BOTTOM / BACK OF PRODUCT
CAUTION
THE LIGHTNING
FLASHAND
ARROWHEADWITHIN
THETRIANGLE ISA
W ARNINGSIGN
ALERTINGYOU OF
"DANGEROUS
VOLTAGE"INSIDE THE
PRODUCT.
CAUTION:TO R EDUCETHE
RISKOF ELECTRICSHOCK,
DONOT REMOVECOVER(OR
BACK).NO USER-
SERVICEABLEP ARTSINSIDE.
REFERSERVICING TO
QUALIFIEDSERVICE
PERSONNEL.
RISK OF ELECTRICSHOCK
DO NOT O PEN
THEEXCLAMA TION
POINTWITHIN THE
TRIANGLEISA
W ARNINGSIGN
ALERTINGYOUOF
IMPORT ANT
INSTRUCTIONS
ACCOMP ANYING
THEPRODUCT.
ROCK-
JAZZ-
POP-
CLASS.
ON/OFFAM/FM iPod/AUX
VOL+
VOL–-
PROG/ RECALL/ MUTE EQ
SKIP–/MEM–-
SKIP+/MEM+
SHUFFLE REPEAT
Warning: The AC/DC Adaptor is
used as disconnect device and it
should remain readily operable
during intended used. In order
to disconnect the apparatus
from the mains completely,
the AC/DC Adaptor should be
disconnected from the mains
socket outlet completely.
AVC MULTIMEDIA (“AVC”) makes the following limited warranty. This
limited warranty extend to the original consumer purchaser and is limited
to non-commercial use of the product.
One Year Parts & Labor Warranty
AVC products purchased in the United States are warranted to be free
from defects in materials or workmanship for a period of one year from
the date of their original retail purchase. If the unit fails to conform to this
warranty, we will service the product using new or refurbished parts and
products, at AVC’s sole discretion.
During a period of one year from the effective warranty date, AVC will
provide, when needed, service labor to repair a manufacturing defect at its
designated Service Center. To obtain warranty service in the Untied States,
you must fi rst call our Customer Support Center at 1-866-444-5746
or 1-800-252-6123, during the hours listed in the box on the right.
The determination of service will be made by AVC Customer Support.
PLEASE DO NOT RETURN YOUR UNIT TO AVC WITHOUT PRIOR
AUTHORIZATION. New or remanufactured replacements for defective
parts or products will be used for repairs by AVC at its designated Service
Center for one year from the effective warranty date. Such replacement
parts or products are warranted for an additional one year from the
date of repair or replacement. The Customer will be required to ship
the unit to the Service Center indicated at the time Customer Support is
contacted to make the necessary repairs. The customer is responsible for all
transportation charges to the service facility.
Packaging and Shipping Instruction
When you send the product to the AVC service facility you must use the
original carton box and packing material or an equivalent as designated by
AVC.
LIMITED WARRANTY
Your Responsibility
1) You must retain the original sale receipt to provide proof of
purchase.
2) These warranties are effective only if the product is purchased and
operated in the U.S.A. or Canada.
3) Warranties extend only to defects in material or workmanship, and do
not extend to any product or parts which have been lost or discarded,
or damage to product or parts caused by misuse, accident, improper
operation or maintenance, or use in violation of instructions provided
with the product, or to product which has been altered or modifi ed
without authorization of AVC, or to products or parts thereof which
have had the serial number removed or changed.
Out of Warranty
All warranties implied by state law, including the implied warranties
of merchantability and fi tness for a particular purpose, are expressly
limited to the duration of the limited warranties set forth above. With
the exception of any warranties implied by state law as hereby limited,
the foregoing warranty is exclusive and in lieu of all other warranties,
guarantees, agreements and similar obligations of manufacturer or seller
with respect to the repair or replacement of any parts. In no event shall
AVC be liable for consequential or incidental damages.
No person, agent, distributor, dealer or company is authorized to change,
modify or extend the terms of these warranties in any manner whatsoever.
The time within action must be commenced to enforce any obligation of
AVC arising under the warranty or under any statute, or law of the United
States or any state thereof, is hereby limited to one year from the date
of purchase. This limitation does not apply to implied warranties arising
under state law.
This warranty gives you specifi c legal rights and you may also have other
rights, which may vary, from state to state. Some states do not allow
limitation on how long an implied warranty lasts, when an action may
be brought, or the exclusion or limitation of incidental or consequential
damages, so the above provisions may not apply to you.
For more information on other products and services, please visit our web
site at
www.1800customersupport.com/RCA
Important:
Also keep your "Bill of Sale" as proof of purchase.
Model no. ..............................................................................
Product name ...................................................................................
Type of set .................................................................................
Serial no. ..................................................................................
Invoice no. ........................................................................
Date purchased ..........................................................................
Dealer name ..........................................................................
FOR SERVICE AND REPAIR, PLEASE VISIT
www.1800customersupport.com/RCA
Specifications and external appearance are subject to change without
notice.
In the event your product requires repair after the limited
warranty period has expired, please contact our Customer
Support Center at 1-866-444-5746, 1-800-252-6123 or
www.1800customersupport.com/RCA
Hours: Monday–Thursday: 9am–7pm, Friday: 9am–5pm,
Saturday: 9am–NOON Eastern time.
Important:
You are responsible for any transportation, shipping or insurance
relative to the return of product to our Product Returns Center.
Adapters
iPod withvideo 30GB
U2 iPodwith video 30GB
iPod classic80GB
iPod withvideo 60GB
iPod classic160GB
IMPORTER
AVC Multimedia,
170 Esna Park, Unit 6, Markham,
Ontario L3R 1E3 Canada
© 2008 AVC Multimedia
http: //www.1800customersupport.com/RCA
http: //www.rcaaudiovideo.com
