head unit

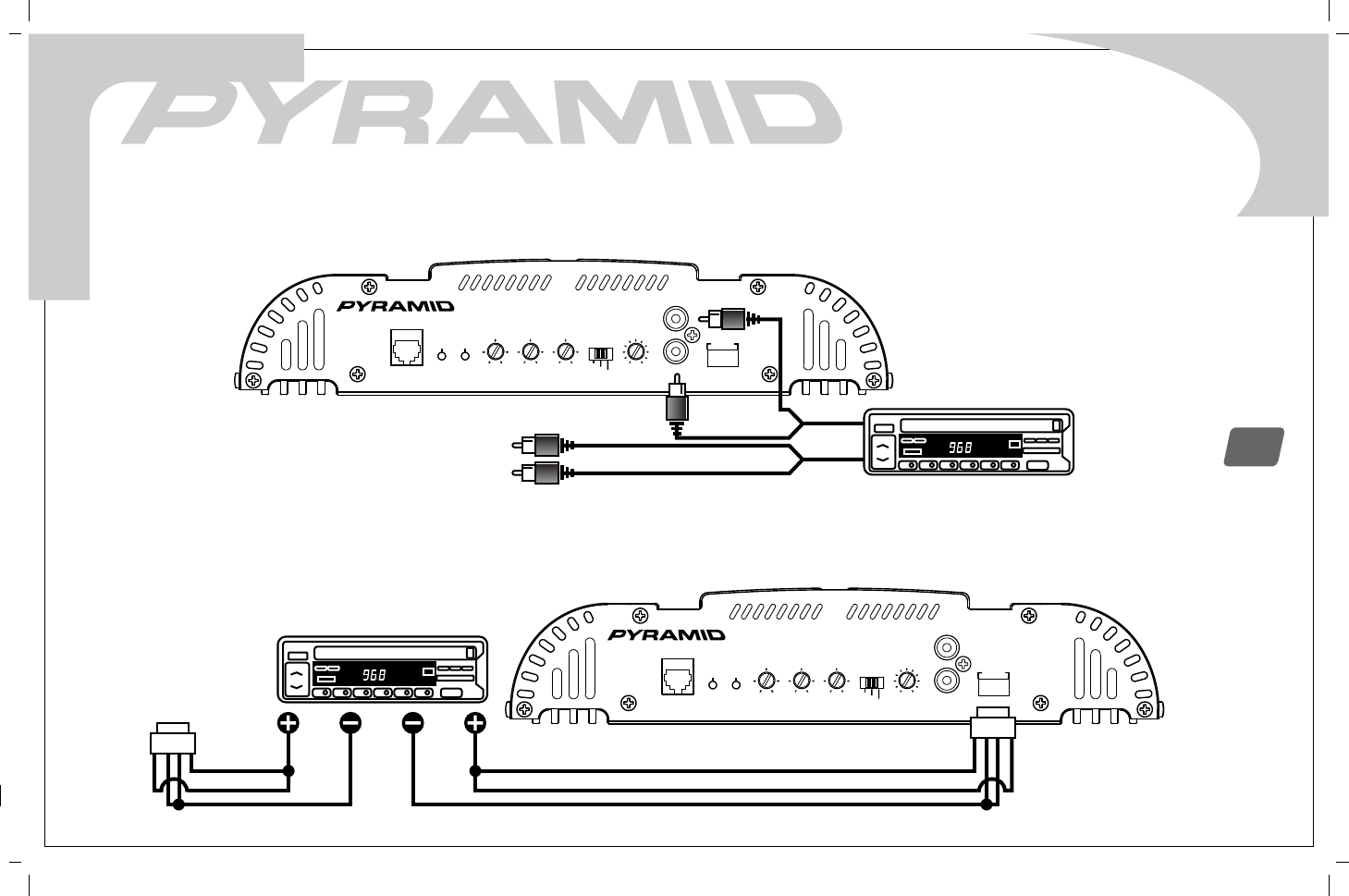

using low level inputs
PLEASE NOTE! If using high level
inputs, do not use the low level RCA
inputs at the same time!
using high level inputs
To a second amplifier
Y Adaptors
head unit
wiring harnesswiring harness
To a second amplifier
RRLL
from speaker terminals
13
mono input connections
