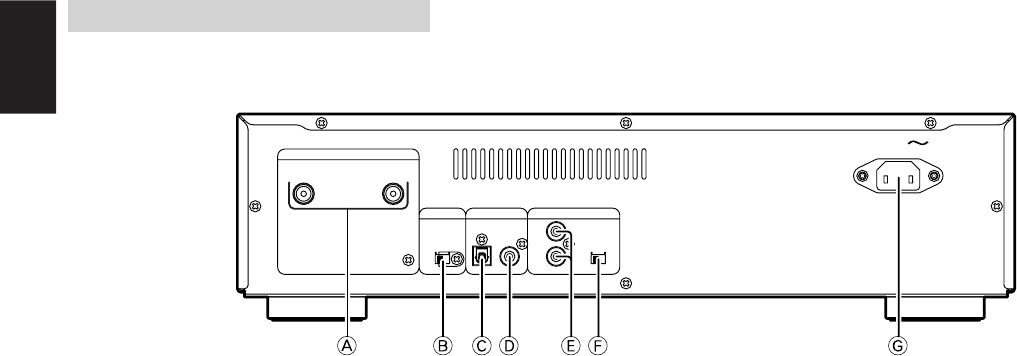

REAR PANEL
A
STEREO AUDIO OUT (analog output)
connectors
B
FILTER STANDARD/CUSTOM
(Filter standard/custom switch)
Set this switch according to the amplifier and
speakers to be connected. For more details, refer to
“Filter Switch” section on page 12.
* Switching the filter setting has to be done while the
unit is in stand-by mode. If the setting is switched
while playing, noise may occur.
C
DIGITAL OUT OPTICAL
It outputs the playing CD signal in digital format. This
jack is to be connected with a recording device,
amplifier, D/A converter, etc that has optical digital
input using an optional square type optical digital
cable.
* No signal will be output when a Super Audio CD is
played.
D
DIGITAL OUT COAXIAL
It outputs the playing CD signal in digital format. This
jack is to be connected with a recording device,
amplifier, D/A converter, etc that has coaxial digital
input using an optional coaxial digital cable.
* No signal will be output when a Super Audio CD is
played.
E
REMOTE CONTROL IN, OUT (input and
output) connectors
When the remote control connectors on the player
and on a Marantz AV component are connected using
the accessory remote control connecting cables, the
components can be operated as a system by remote
control.
• When connecting to a component which is
equipped with remote control connectors, the
player’s REMOTE CONTROL IN connector must
always be connected to the REMOTE CONTROL
OUT connector on the other component to be
connected.
• When connecting a component which is not
equipped with an infrared remote sensor, this
component must always be connected to the
player’s REMOTE CONTROL OUT connector.
F
EXT./INT. (External/Internal switch)
When this unit is used as a standalone component,
set this switch to the INT. side. When it is used
connected to external component by a remote
connecting cable and to audio component with a
remote sensor that supports remote controls by
Maranz, set this switch to the EXT. side.
* If the unit is used as standalone and the switch is
set to EXT. position, remote control unit cannot be
used.
G
AC POWER INPUT JACK
Connect the supplied power cord to this jack and a
household AC power outlet.
