C O N N E C T I N G T H E A V 5 1 0 5 S T E R E O P O W E R A M P L I F I E R
9
CONNE CTIONS
AUDIO INPUTS
Audio inputs to the AV5105 are RCA phono. There are two input
sockets per channel, electrically in parallel. This makes it easy to daisy
chain multi-amplier systems. Simply loop from one amplier to the
next one.
SPEAKER CONNECTIONS
Speaker connections are high contact pressure binding posts which
accommodate up to 4mm cable, making a positive, reliable, secure
connection directly on to the speaker cable. There are two speaker
outputs per channel.
CONNECTING TO A STEREO PREAMPLIFIER

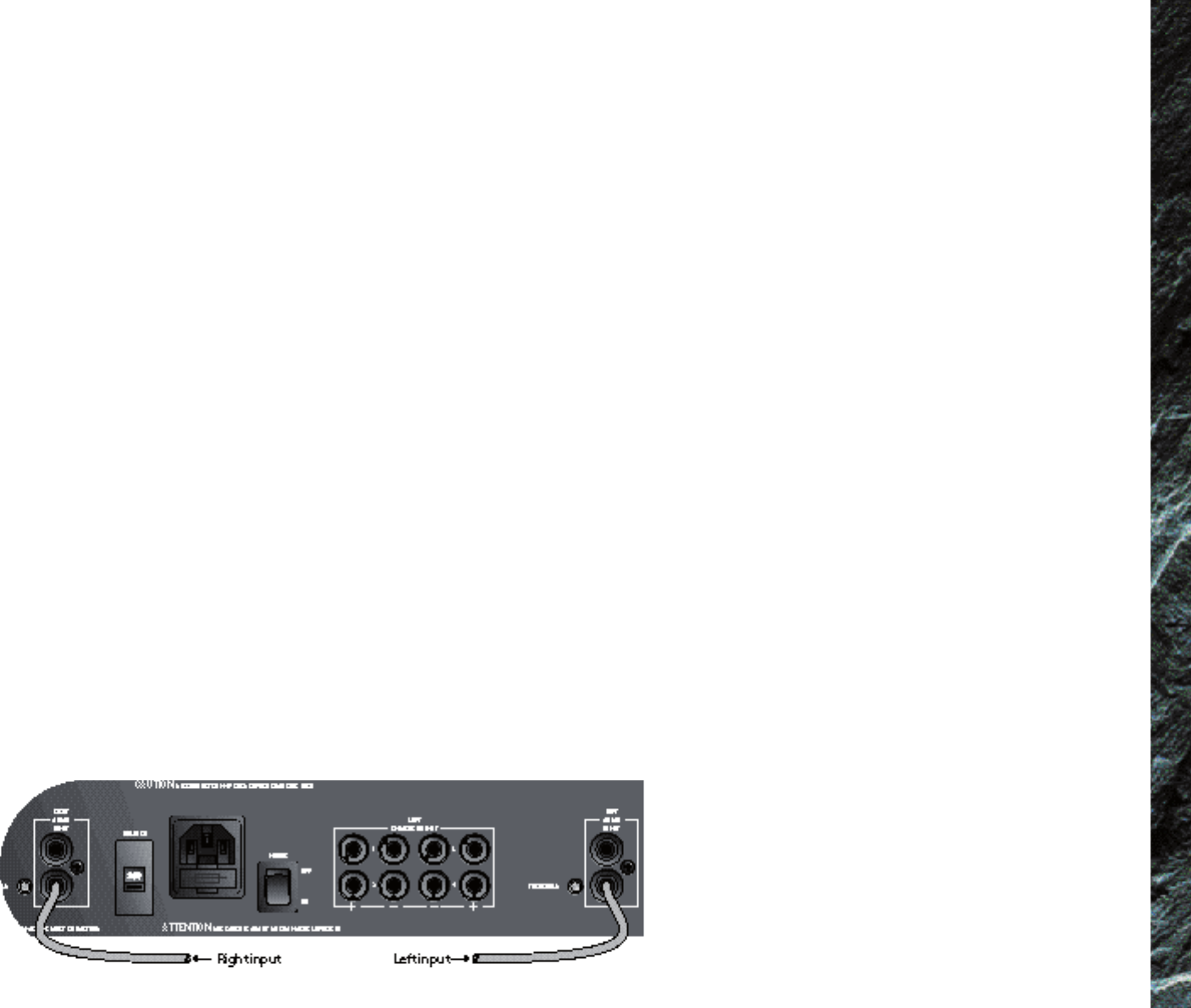

Connect the LEFT and RIGHT AUDIO INPUTS of the AV 5105 to the
left and right line outputs of the preamplier.
CONNECTING TO THE AV 5103 SYSTEM CONTROLLER
Connect one pair of the System Controller’s ANALOGUE AUDIO OUT
sockets to the LEFT and RIGHT INPUT sockets on the AV 5105, using a
stereo phono lead.
