Box Building & Mounting Hints
If you would like to use a vented enclosure, but the box designs we provide you with (in this manual) do not fit
because of width or depth, the designs can be modified. The shape of the enclosure is not vital, but
The Volume Is..
The volume, of the design you choose, must stay the same. The following diagrams provide you with some help to
insure your enclosure is built correctly.
Remember:
If you are going to bend the port at 90°° you will need to add 1/2 of the ports height to the length!! See Below..
20"
3"
L 2
L 1
3"
10"
10"
3"

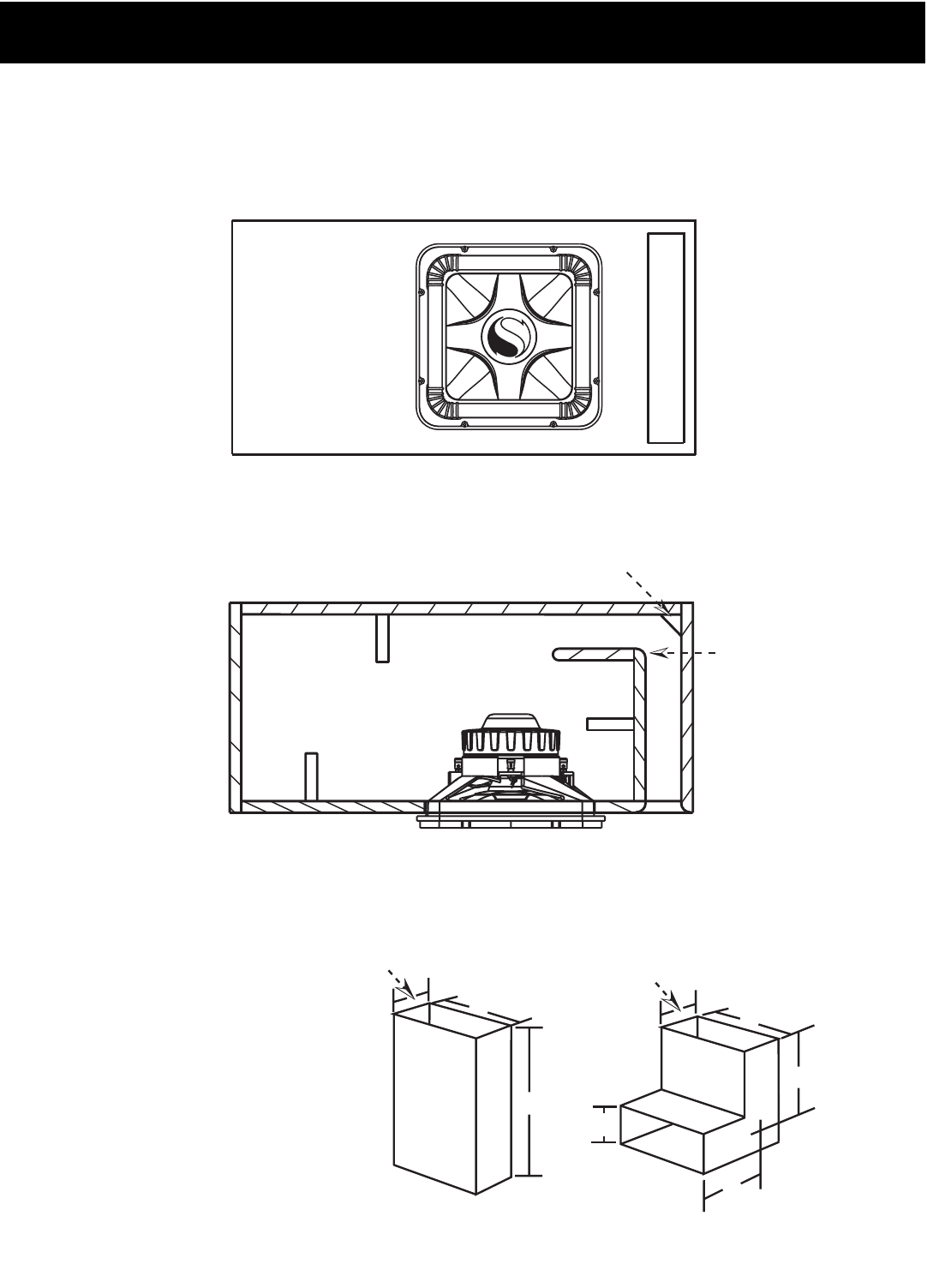

Fig. 1 Fig. 2
Kicker Solo-Baric L7-Series Subwoofers
Recommended Applications
Page 15
Example:
(Fig. 1)
H
port = 3”
W
port = 10”
L
port
= 20”
(Fig. 2)
Since
H
port
is 3” you need to add
1.5”( 1/2 of
H
port
) to
L
port
. This
means that
L
1 +
L
2 = 21.5”
Always measure
L
1 and
L
2 down
the center to get an accurate
measurement!
