Display Window
See pages in the parentheses for details.
Front Panel
1 Remote sensor
2 STANDBY lamp (9)
3 STANDBY/ON button (9, 14, 24)
4 TAPE 2 3 button (19 – 20)
Pressing this button also turns on the unit.
5 CD 3/8 SELECT (play/pause) button (9, 15 – 16, 18)
Pressing this button also turns on the unit.
6 AHB (Active Hyper Bass) PRO button (10)
7 SOUND button (10)
8 AUX button (9 – 10)
Pressing this button also turns on the unit.
9 PHONES jack (10)
p 0 (disc tray open/close) button (12)
Pressing this button also turns on the unit.
q Disc tray
w RETURN button (17)
e FM/AM button (9, 11)
Pressing this button also turns on the unit.
r Display window
t CLOCK button (9)
y VOLUME + / – control (10)
u TIMER button (23 – 24)
i ¢ NEXT (forward search) button (9, 15 – 18)
o 7 (stop) button (12, 14 – 15, 19 – 21)
; PREV 4 (reverse search) button (9, 15 – 18)
a REV.MODE (reverse mode) VCD NUMBER button
(16, 20 – 21)
s Cassette holder
d REC button (20 – 21)
f 0 (eject) button for cassette deck (19 – 21)

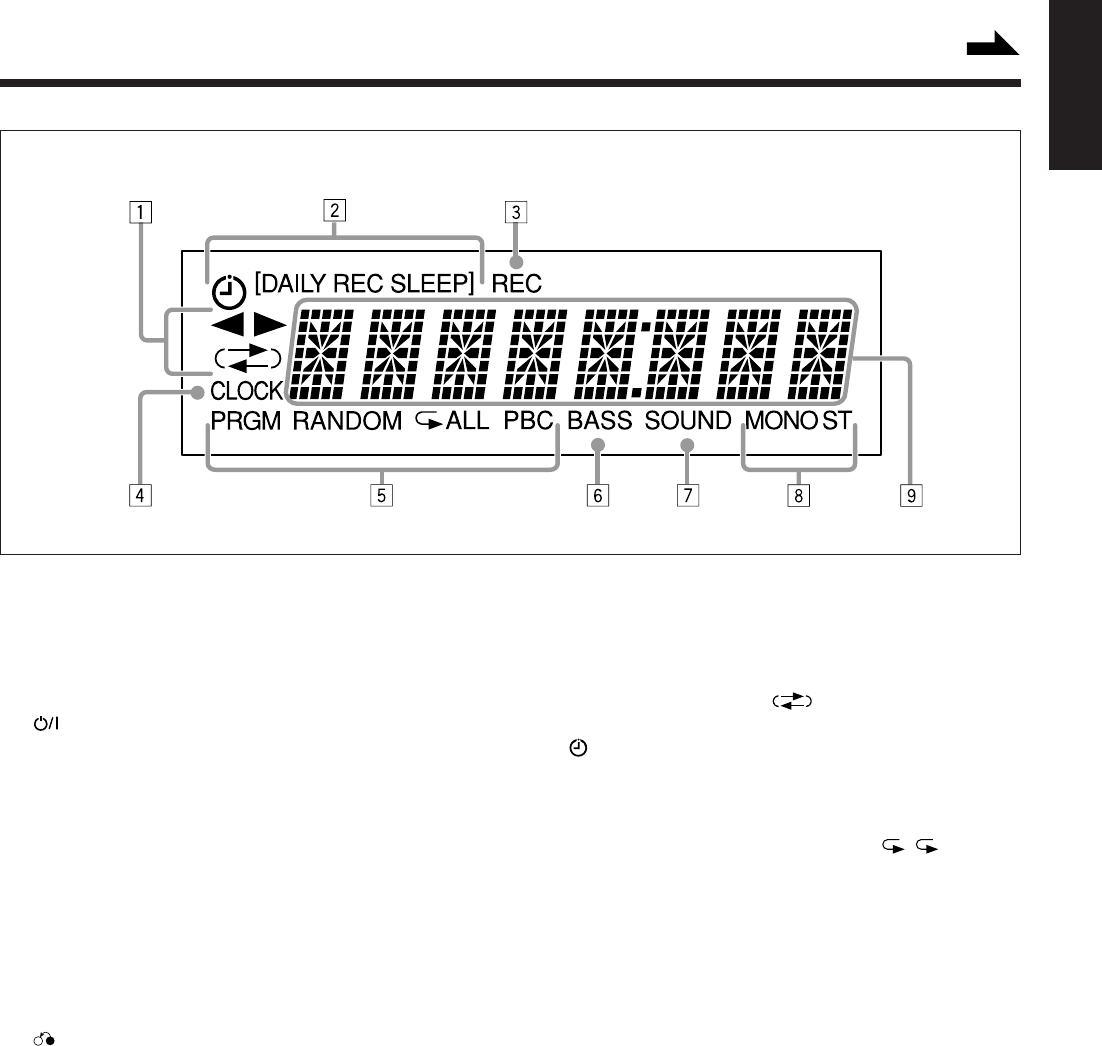

Display Window
1 Tape operation indicators
• 2 3 (tape direction) and (reverse mode) indicators
2 Timer indicators
• (timer), DAILY, REC and SLEEP indicators
3 REC indicator
4 CLOCK indicator
5 CD play mode indicators
• PRGM (program), RANDOM, repeat ( / ALL) and
PBC indicators
6 BASS (Active Hyper Bass) indicator
7 SOUND (sound mode) indicator
8 Tuner operation indicators
• MONO and ST (stereo) indicators
9 Main display
• Shows the source name, frequency, etc.
