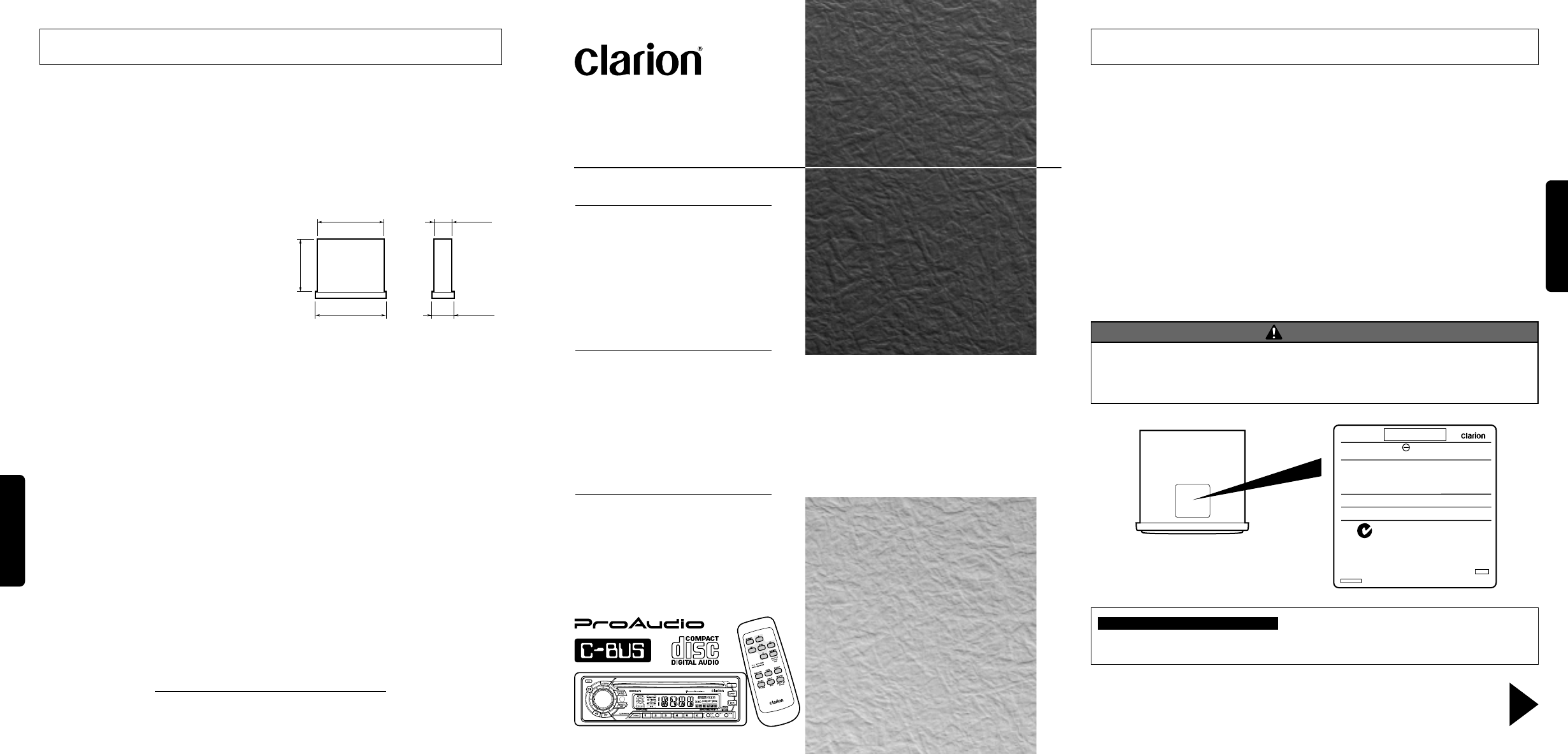

Español
Sintonizador de FM
Game de frecuencias
: 87,9 MHz a 107,9 MHz
Sensibilidad útil: 11 dBf
Sensibilidad a 50 dB de silenciamiento: 17 dBf
Selectividad de canal alternativo: 75 dB
Separación estéreo (1 kHz): 35 dB
Respuesta en frecuencia (±3 dB)
: 30 Hz a 15 kHz
Sintonizador de AM
Respuesta en frecuencia: 530 kHz a 1.710 kHz
Sensibilidad útil: 25 µV
Reproductor de discos compactos
Sistema: Sistema de audio de discos compactos
Discos utilizables: Discos compactos
Respuesta en frecuencia: 10 Hz a 20 kHz (±1dB)
Relación señal-ruido: 96 dB (1 kHz) IHF-A
Gama dinámica: 95 dB (1 kHz)
Audio
Salida de potencia máxima:
180 W (45 W × 4 ch)
Salida de potencia media continua:
14 W × 4, con 4 Ω, 20 Hz a 20 kHz,1% de
distorsión armónica total
Acción de control de graves (100 Hz): ±10 dB
Acción de control de agudos (10 kHz): ±10 dB
Salida de línea (con CA, 1 kHz, 10 kΩ):
1,8 V
Generales
Tensión de alimentación: 14,4 V CC (permisible
de 10,8 V a 15,6 V), negativo a masa
Consumo de corriente: Menos de 15 A
Impedancia de los altavoces: 4 Ω (permisible de
4 Ω a 8 Ω)
Peso: 3,97 lb. (1,8 kg)
Dimensiones:
7” (178 mm) de anchura × 2” (50 mm) de
altura × 6” (152 mm) de fondo
Notas:
•
Las especificaciones están de acuerdo con las nor-
mas de la EIA.
•
Las especificaciones y el diseño están sujetos a cam-
bio sin previo aviso por motivo de mejoras.
2”
2-1/4”
7”
7-3/8”
6”
(50 mm)(178 mm)
(58 mm)(188 mm)
(152 mm)
11. ESPECIFICACIONES
DRX5675 2
English
1. When the inside of the car is very cold and
the player is used soon after switching on
the heater, moisture may form on the disc
or the optical parts of the player and proper
playback may not be possible. If moisture
forms on the disc, wipe it off with a soft
cloth. If moisture forms on the optical parts
of the player, do not use the player for
about one hour and the condensation will
disappear naturally to allow normal opera-
tion.
2. Driving on extremely bumpy roads which
cause severe vibration may cause the
sound to skip.
3. This unit uses a precision mechanism.
Even in the event that trouble arises, never
open the case, disassemble the unit, or
lubricate the rotating parts.
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reason-
able protection against harmful interference in
a residential installation. This equipment gen-
erates, uses, and can radiate radio frequency
energy and, if not installed and used in accor-
dance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interfer-
ence will not occur in a particular installation. If
this equipment does cause harmful interfer-
ence to radio or television reception, which can
be determined by turning the equipment off
and on, the user is encouraged to consult the
dealer or an experienced radio/TV technician
for help.
1. PRECAUTIONS
Bottom View of Source Unit
DRX5675
AM 530-1710kHz/FM 87.9-107.9MHz
12V GROUND
MODEL
THIS PRODUCTION COMPLIES WITH DHHS RULES 21 CFR
SUBCHAPTER J APPLICABLE AT DATE OF MANUFACTURE.
CLARION CO.,LTD.
50 KAMITODA,TODA-SHI,SAITAMA-KEN,JAPAN
MANUFACTURED:
SERIAL No.
PE-2310B
286- 324-00
Clarion Co.,Ltd.
MADE IN CHINA
051 722 877
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED
OPERATION.
All Rights Reserved. Copyright © 1999: Clarion Co., Ltd.
Printed in China / Imprimé en Chine / Impreso en China
1999/10 (S
•
C)
Clarion Co., Ltd.
PE-2310B
280-7426-00
Owner’s manual
Mode d’emploi
Manual de instrucciones
AM/FM CD PLAYER
WITH CD CHANGER CONTROL
•
RADIO AM/FM-LECTEUR CD
AVEC PILOTAGE DE CHANGEUR CD
•
RADIO AM/FM Y REPRODUCTOR CD
CON CONTROL DE CAMBIADOR DE CD
■ Contents
English
1. PRECAUTIONS ..........................................................2
2. CONTROLS ................................................................3
3. BUTTON TERMINOLOGY..........................................4
4. FEATURES..................................................................5
5. HANDLING COMPACT DISCS...................................6
6. DCP (Detachable Control Panel)..............................7
7. REMOTE CONTROLL................................................8
8. OPERATION..............................................................10
9. TROUBLESHOOTING..............................................16
10.ERROR DISPLAYS...................................................17
11.SPECIFICATIONS.....................................................18
■ Table des matières
Français
1. PRÉCAUTIONS ........................................................19
2. COMMANDES.............................................................3
3. NOMENCLATURE DES TOUCHES.........................20
4. CARACTÉRISTIQUES..............................................21
5. MANIPULATION DES DISQUES COMPACTS........22
6. CLAVIER DE COMMANDE AMOVIBLE (DCP).......23
7. TÉLÉCOMMANDE....................................................24
8. FONCTIONNEMENT.................................................26
9. DÉPISTAGE DES PANNES......................................32
10.AFFICHAGE DES ERREURS ..................................33
11.SPÉCIFICATIONS.....................................................34
■ Índice
Español
1. PRECAUCIONES......................................................35
2. CONTROLES..............................................................3
3. NOMENCLATURA DE LOS BOTONES...................36
4. CARACTERÍSTICAS................................................37
5. MANEJO DE LOS DISCOS COMPACTOS..............38
6. PANEL DE CONTROL DESMONTABLE (DCP)......39
7. CONTROLADOR REMOTO.....................................40
8. OPERACIÓN.............................................................42
9. SOLUCIÓN DE PROBLEMAS.................................48
10.INDICACIONES DE ERROR....................................49
11.ESPECIFICACIONES...............................................50
CHANGES OR MODIFICATIONS TO THIS PRODUCT WILL VOID THE WARRANTY AND
WILL VIOLATE FCC APPROVAL.
INFORMATION FOR USERS:
USE OF CONTROLS, ADJUSTMENTS, OR PERFORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN, MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
THE COMPACT DISC PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE
EXCEPT PROPERLY QUALIFIED SERVICE PERSONNEL.
CAUTION
Be sure to unfold and read the next page.
Veuillez déployer et vous référer à la page suivante.
Cerciórese de desplegar y de leer la página siguiente.
DRX5675
