OWNER'S MANUAL
11
WIRING
BATTERY
+
-
F
U
S
E
Remote Turn-on
Chasis Groung
(Bare Metal)
Left Speaker +
Right Speaker +
Right Speaker -
Left Speaker -

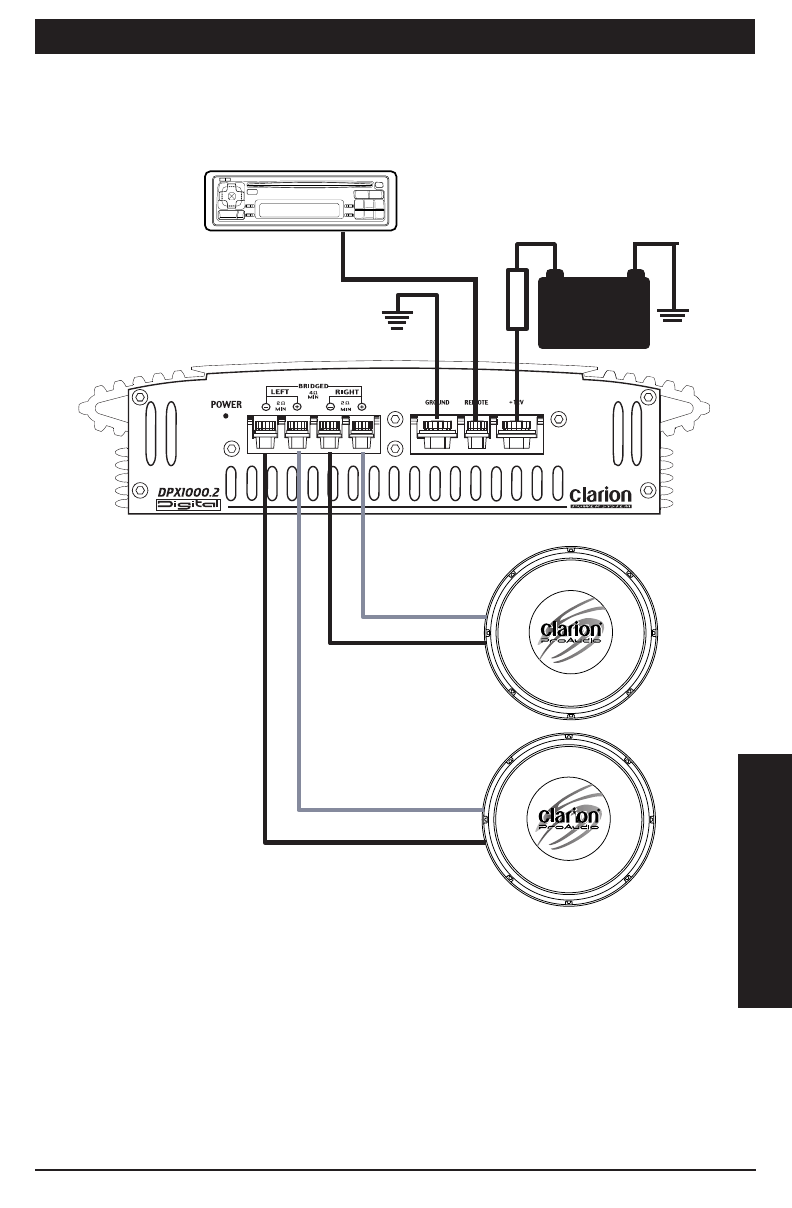

Figure 6. - Electrical connections for the DPX1000.2
